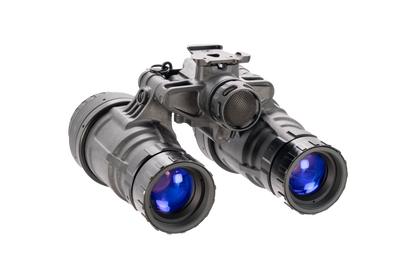

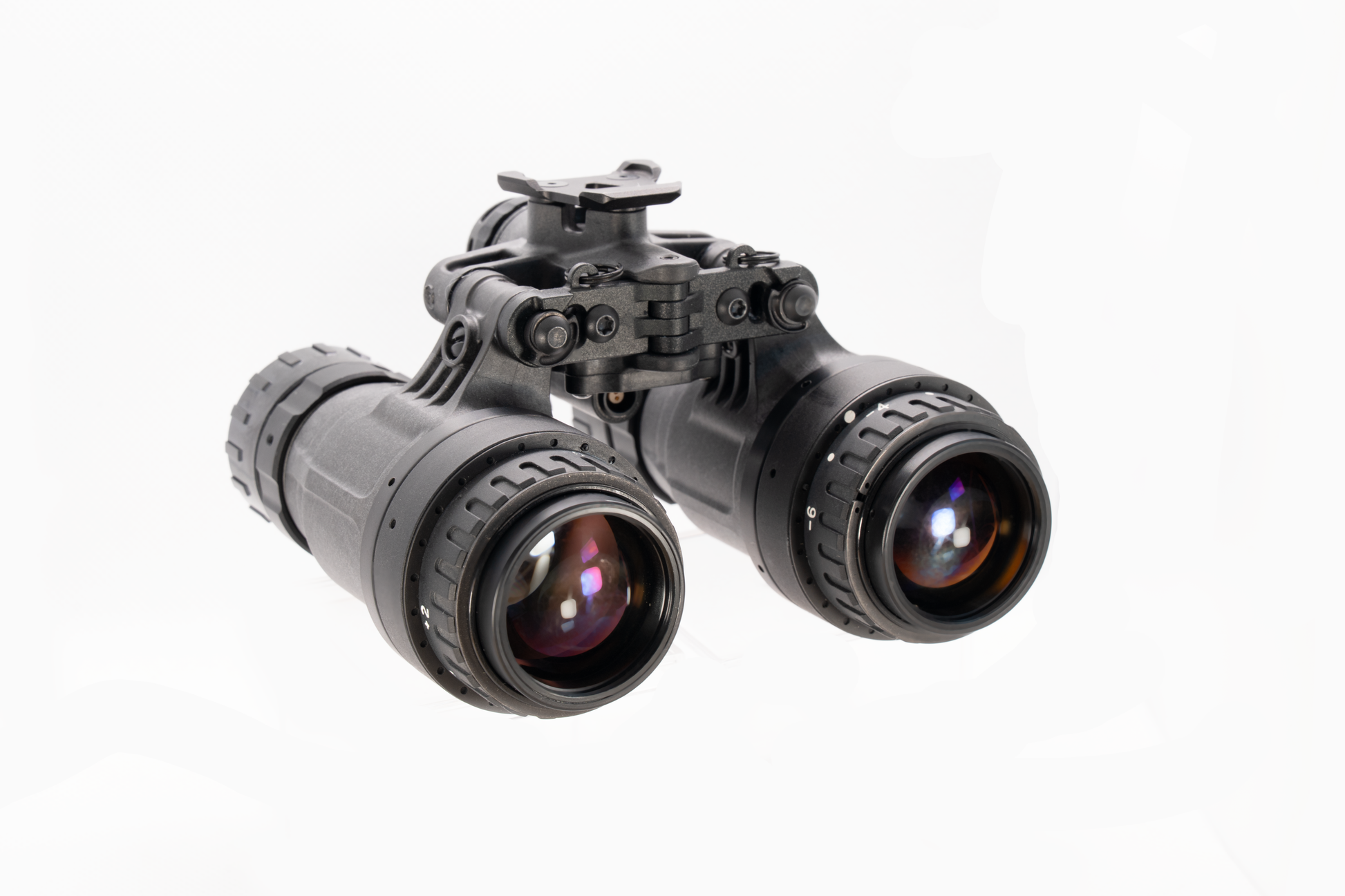

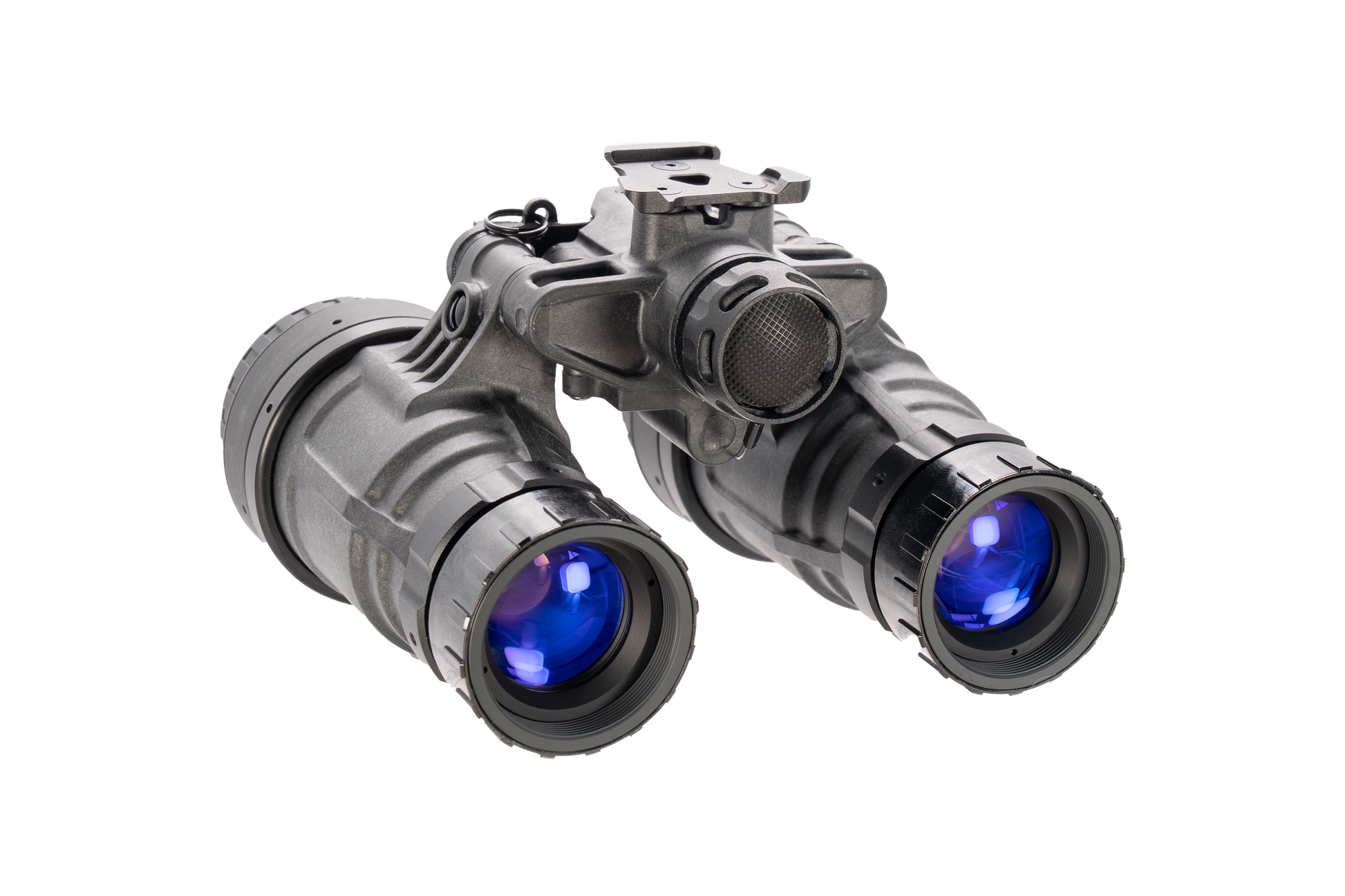

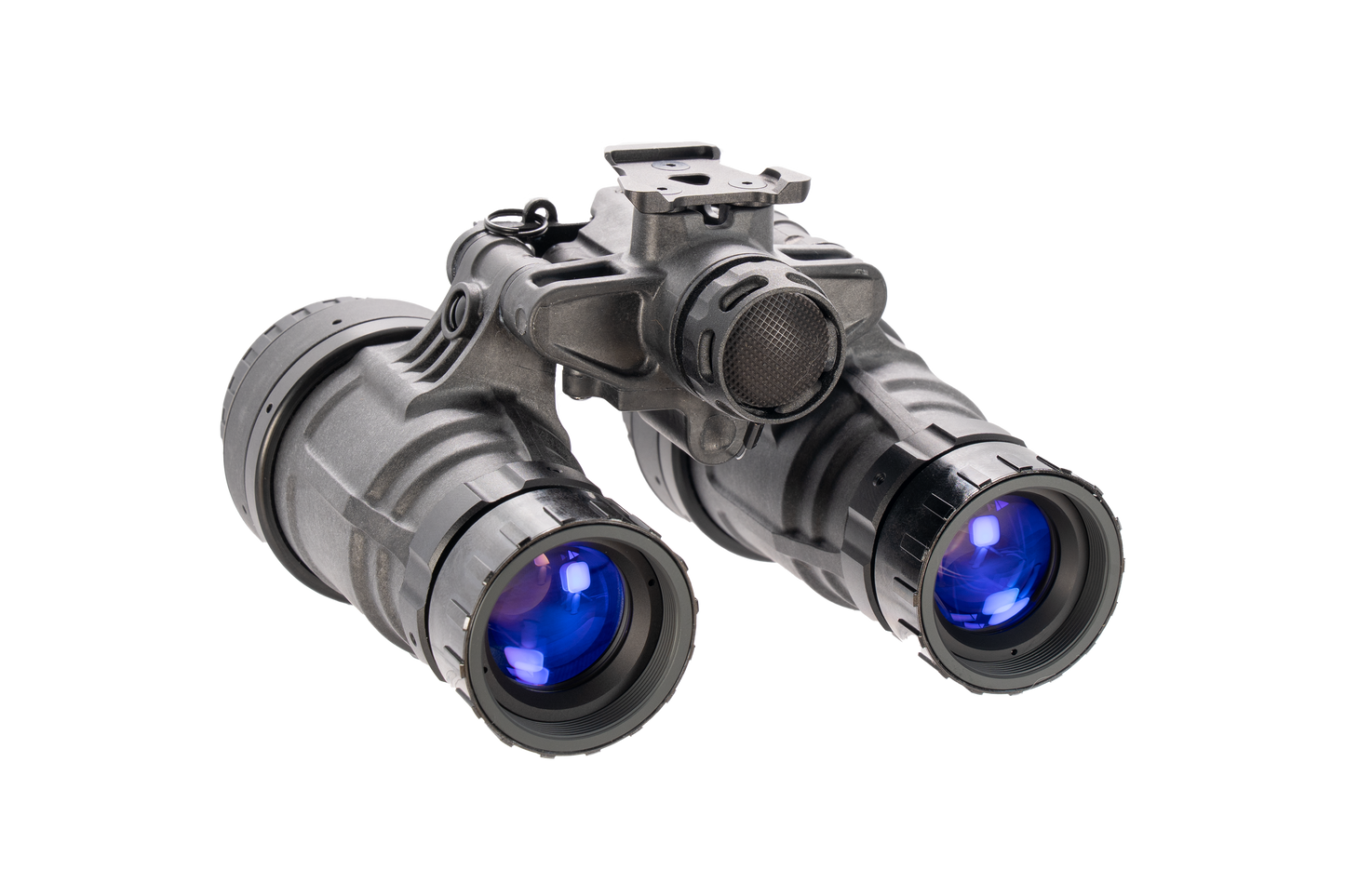

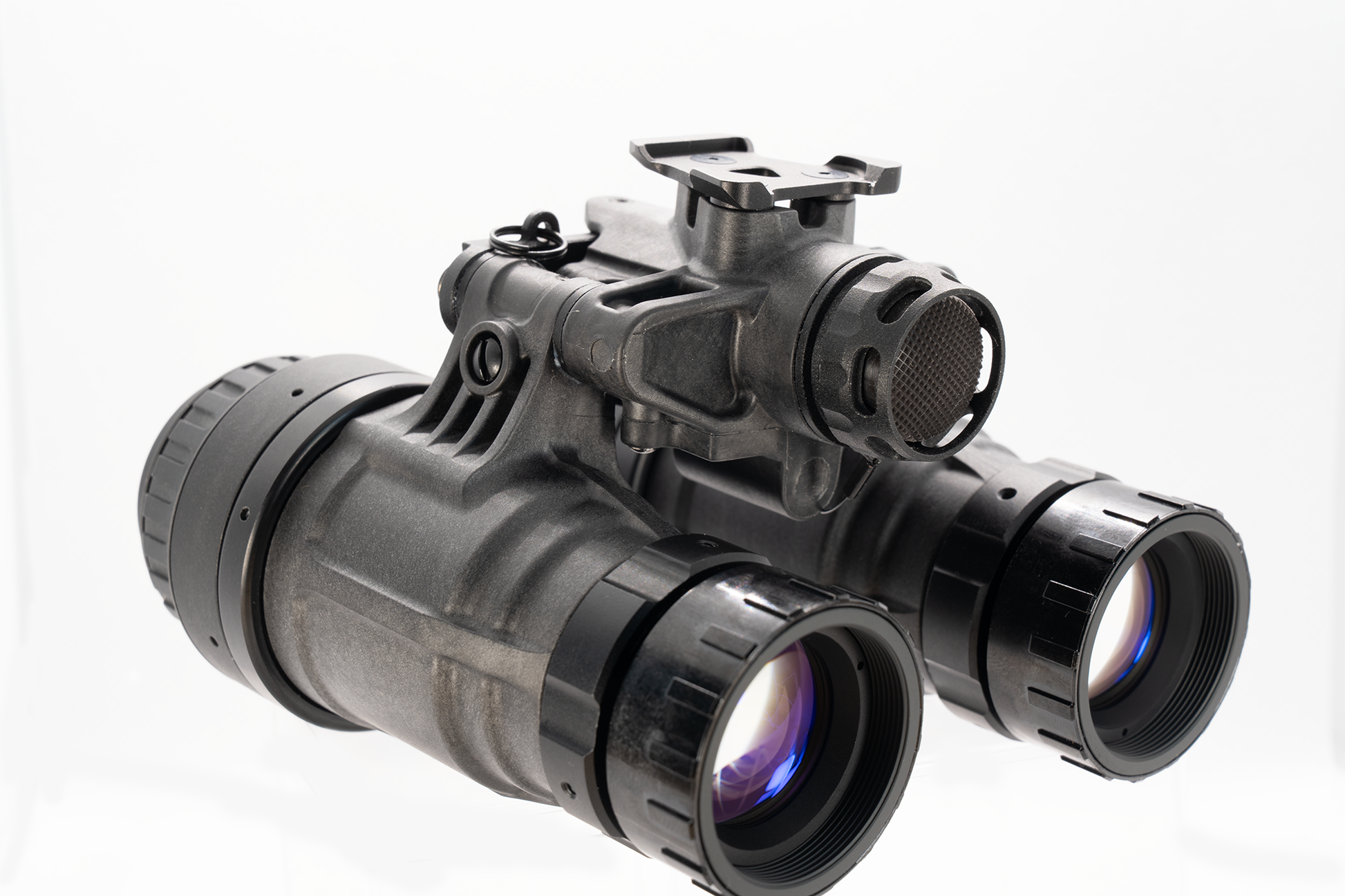

The Ultralight Articulating Night Vision Binocular

Our kick starter product and first in a series of articulating binocular devices. This is the lightest 18mm binocular on the market to date at a functional weight of 14.55 oz in the lightest configuration (I.e. Lightweight optics, Diopter assemblies, and hardware) or 18.42 oz. fully assembled with MIL-Standard optics, assembles, and battery. The articulating design allows users to use one eye or both eyes enabling the simultaneous use of a thermal optic or other non-passive aiming systems. This also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

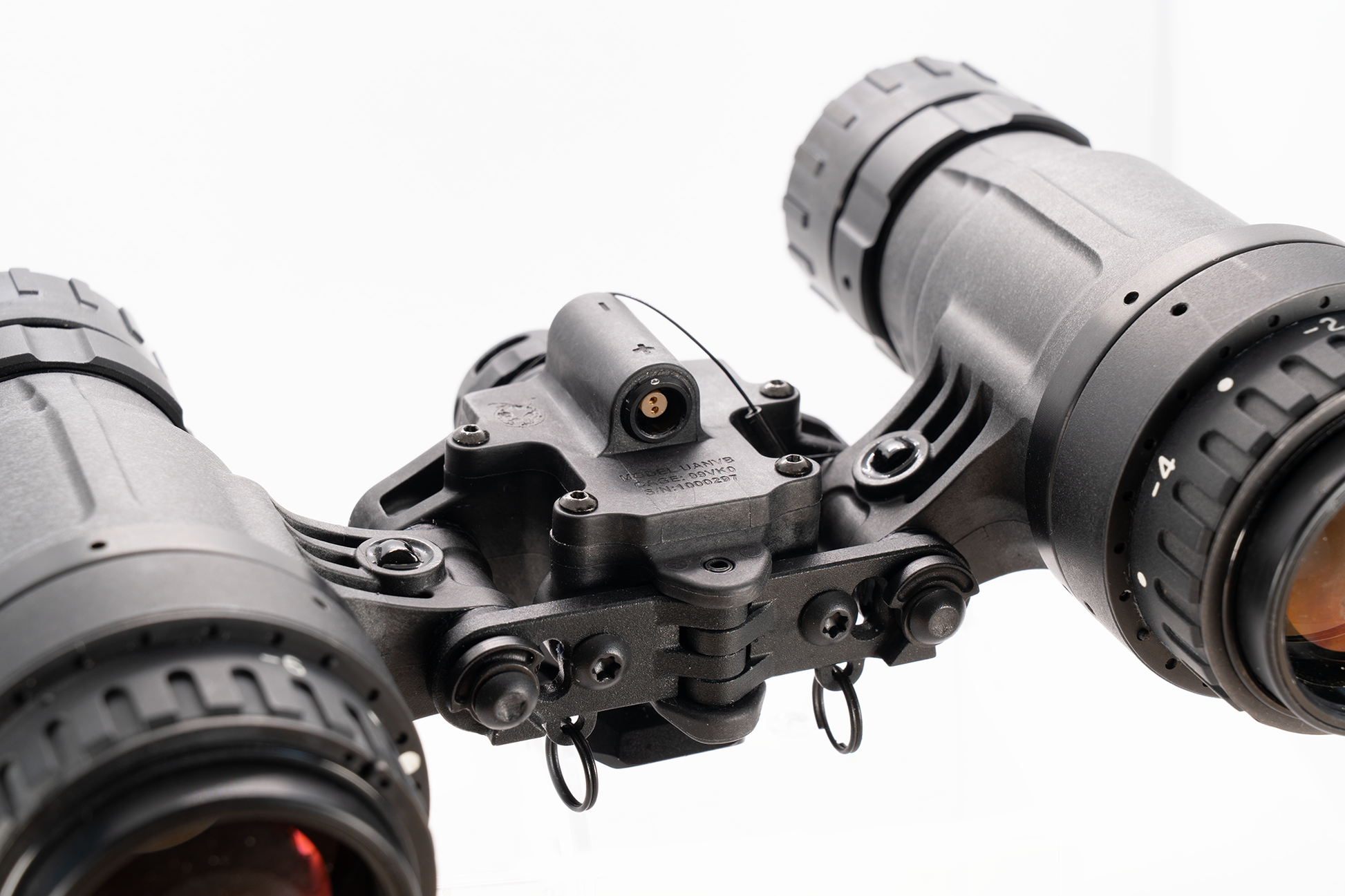

It is simple with a minimalist design. An onboard battery with no remote power keeps things simple and wires off the helmet. Push button on/off in the cap to reduce weight and reduce the footprint of the bridge. Individual pod power on/off when articulated to the side for single or dual eye use and to eliminate backsplash when stowed or rotated out.

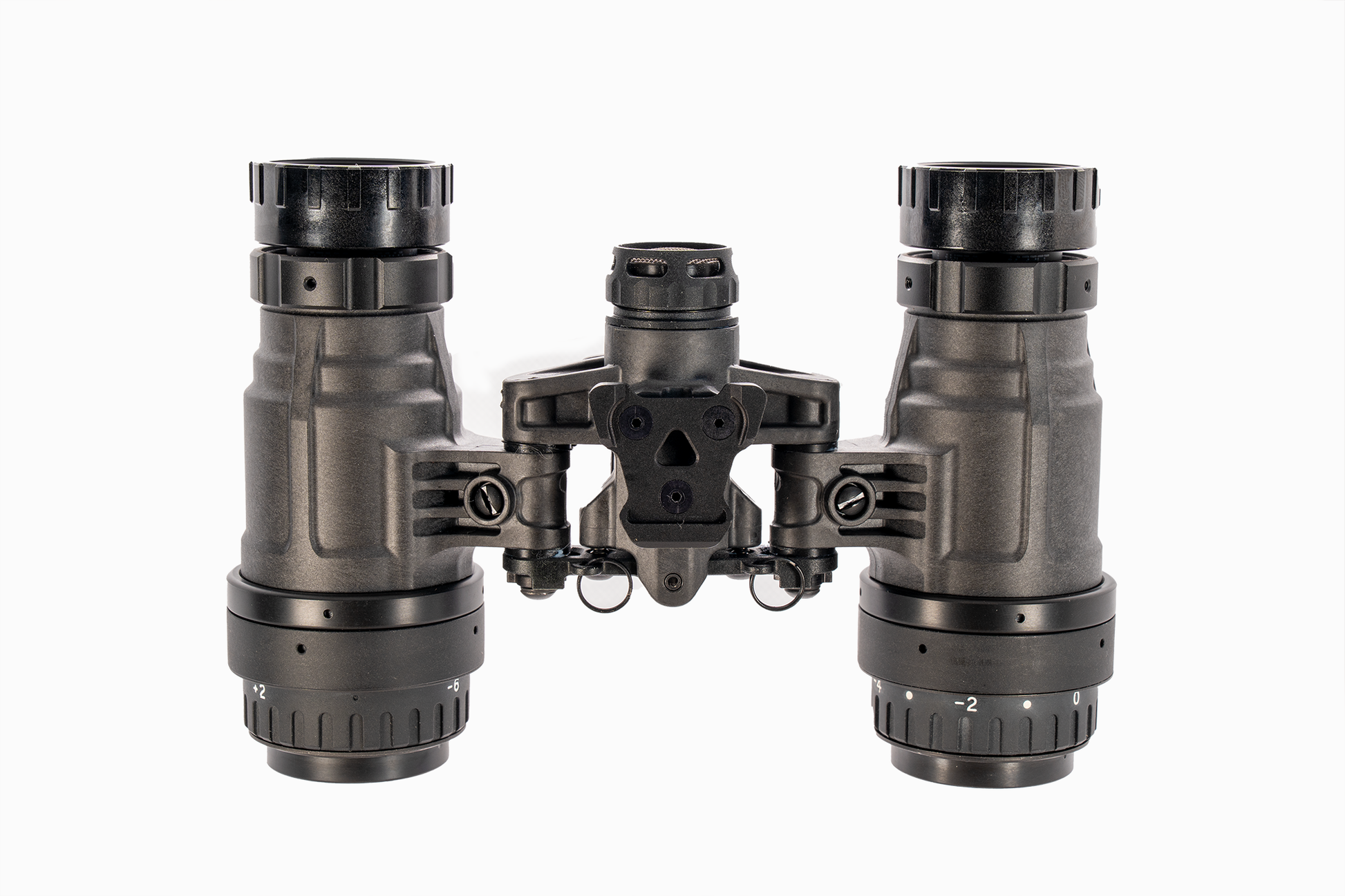

An original new “Friction Lock Interpupillary Adjustment” feature allows users to quickly and easily set IP stop distance with a simple rotate into place and forget design. No tools or knobs.

This unit is light weight without compromising strength. It is rugged and exceeds MIL-STD-810G plus has been drop tested to the NATO 1.5 meter firearms drop test standard. All our products are designed and hand built in New Hampshire, USA.

Materials Impact resistant polymer
Device Weight   515g Standard lenses/ 425g RPO3.0 with NNVT tubes
Ingress rating Exceeds IP-68, and MIL-STD-810H 1.5m under water for 30minutes
Out-Board Power 2-Pin LEMO port version available on request
On-Board Power CR123A onboard with a runtime of ~25 hours
IR Illuminator No
 Tube type 18mm MX-10160 style or MX11769 style with EGAC pigtail
removed
Individual-Pods shut off Pods will shut off when rotated to the side

Pre-order

Pre-order period last 2-4 weeks

Warranty

-Life time warranty for the housing

-2 years warranty for the Image Intensifier & the optics

View full details

Specification

Material: Polymer/Aluminum

Tube type: 18mm MX-10160 style or MX11769 style with EGAC pigtail removed

Power: CR123 onboard

Runtime: 20+ hours

IR illuminator: No

Individual pod shut off when rotated to the side

Submersion and Dust Rating: IP68

Weight: 510g/Optronic/Carson and a CR123 battery

 Exceeds MIL-STD-810G drop test

Articulation

Both pods can be individually rotated to the side when not in use, or for a quick transition into a highlighted area. Alternatively, one pod can be rotated to use as a monocular.

Individual Pod shut off

The Katana uses a magnetic switch to allow each pod to be shut off individually when it is being rotated to the side. It is ideal for situations when you need to enter a lit room from a dark area or when someone shines a flashlight on you.
