NVG Helmet Mounts & Night Vision Mounting Arms

Securely attach compatible night vision goggles, monoculars and helmet-mounted thermal devices with professional NVG helmet mounts. This collection includes dovetail and bayonet mounting systems from Nocturn Industries, Cadex Defence, Wilcox, Argus and Norotos.

The helmet mount connects an NVG helmet shroud to a night vision device, J-arm or bridge system. Compatibility must be confirmed at both ends of the mount before ordering.

Choose the Right NVG Helmet Mount

Dovetail NVG Mounts

Dovetail mounts are used with many modern night vision binoculars, articulating PVS-14 J-arms and dual-device bridges. The device, J-arm or bridge must have a compatible dovetail shoe that fully engages with the mount.

Dovetail options in this collection include the Nocturn Industries ALPHA Mount, Cadex Low-Profile Flip-Up NVG Mount, Wilcox G24, Argus G24-Style LWNVM Mount and selected Norotos mounting systems.

Bayonet NVG Mounts

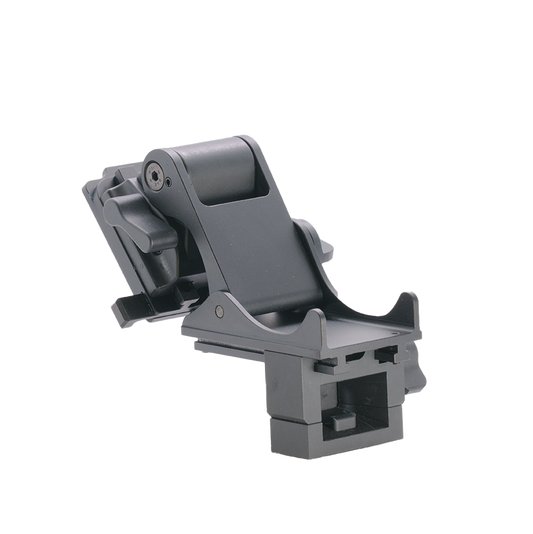

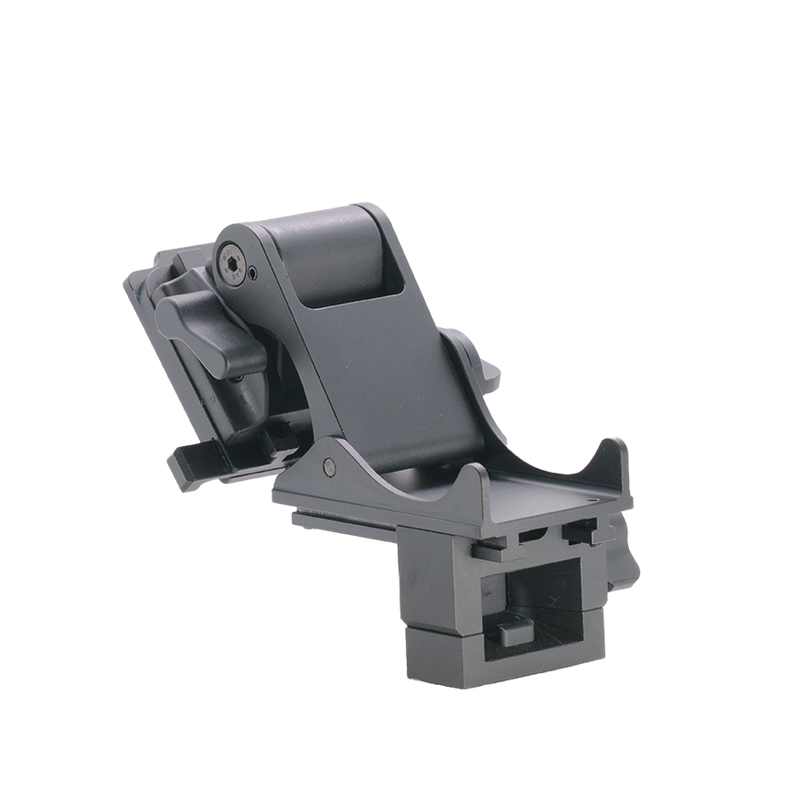

Bayonet mounts are designed for compatible horn-style J-arms, including traditional PVS-14 mounting configurations. The Rhino II-Style Bayonet NVG Mount provides an option for users retaining a legacy bayonet interface.

A bayonet J-arm cannot connect directly to a dovetail-only helmet mount. Moving from a bayonet system to a dovetail system normally requires a compatible dovetail J-arm, bridge or device interface.

Compare NVG Mount Operating Systems

Force-to-Overcome Mounts

A force-to-overcome mount allows the night vision device to be raised or lowered by applying controlled pressure. This avoids the need to press a release button during each movement, although the required force and locking mechanism vary between models.

The Nocturn Industries ALPHA Mount combines a force-to-overcome mechanism with locking positions and a dovetail interface. The mount is offered in powered and non-powered configurations for supported devices.

The Norotos Lo-Sto Force-to-Overcome Mount provides vertical, tilt and fore-and-aft adjustment while positioning the device close to the helmet when stowed.

Push-Button Mounts

Push-button mounts require a control to be activated before the device is moved between its deployed and stowed positions. Some users prefer the deliberate release action, while others prioritise the rapid movement of a force-to-overcome design.

Compare the Norotos Lo-Sto Push-Button Mount when a button-controlled operating system is preferred.

Breakaway NVG Mounts

A breakaway system is designed to allow the mount to separate from the helmet shroud when subjected to a defined impact load. This may reduce the force transferred to the user and helmet, but the release behaviour, adjustment and locking options differ between manufacturers.

Breakaway-equipped options include selected Wilcox G24, Cadex, Argus, Norotos and Nocturn Industries configurations. Confirm whether the exact product variant provides a fixed, adjustable or selectable breakaway mode.

Compare Night Vision Helmet Mount Platforms

Nocturn Industries ALPHA Mount

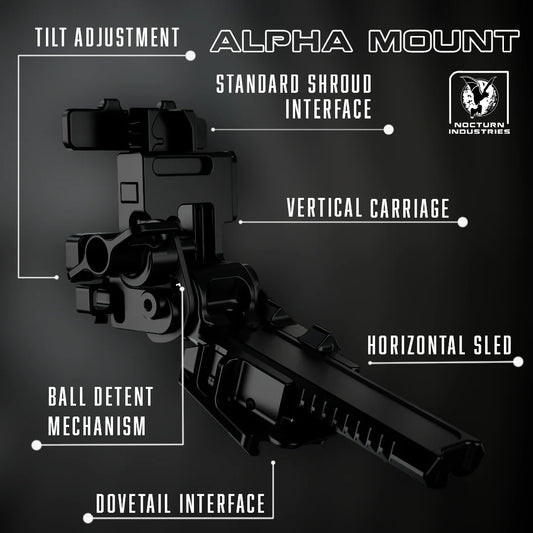

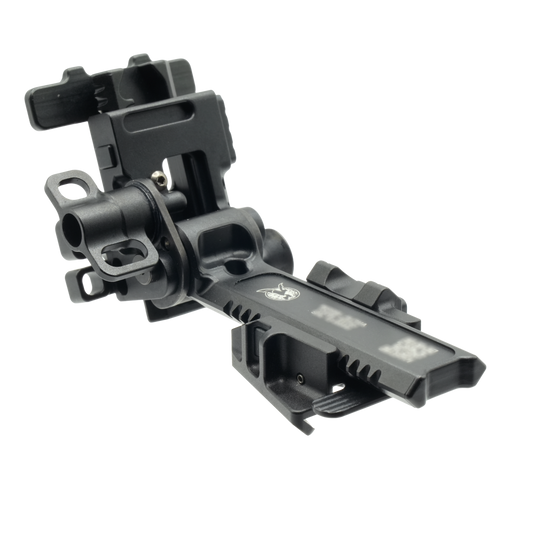

The Nocturn Industries ALPHA NVG Mount is a lightweight dovetail system manufactured from aluminium and stainless steel. It includes tilt and height adjustment, a force-to-overcome mechanism, locking positions and an optional powered configuration for supported Nocturn Industries devices.

Cadex Low-Profile Flip-Up Mount

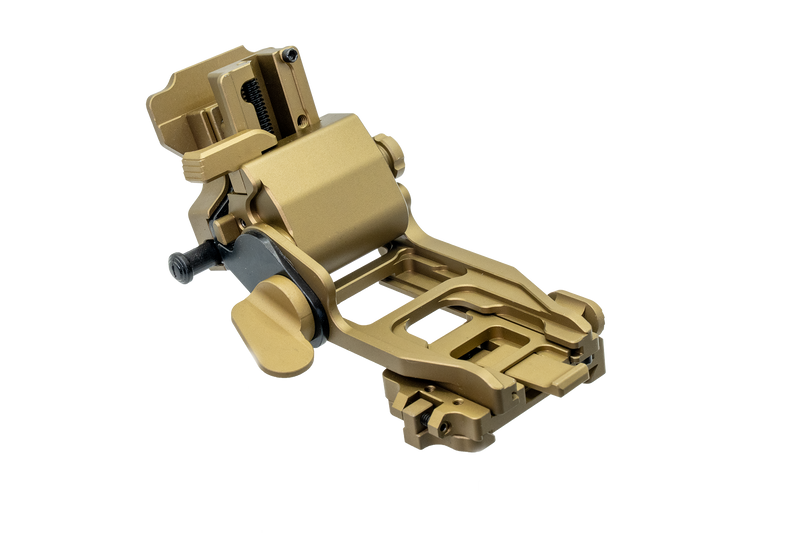

The Cadex Low-Profile Flip-Up NVG Mount follows the helmet profile when stowed and provides height and angle adjustment. Available configurations may include dovetail or bayonet interfaces and breakaway or non-breakaway operation.

Wilcox G24

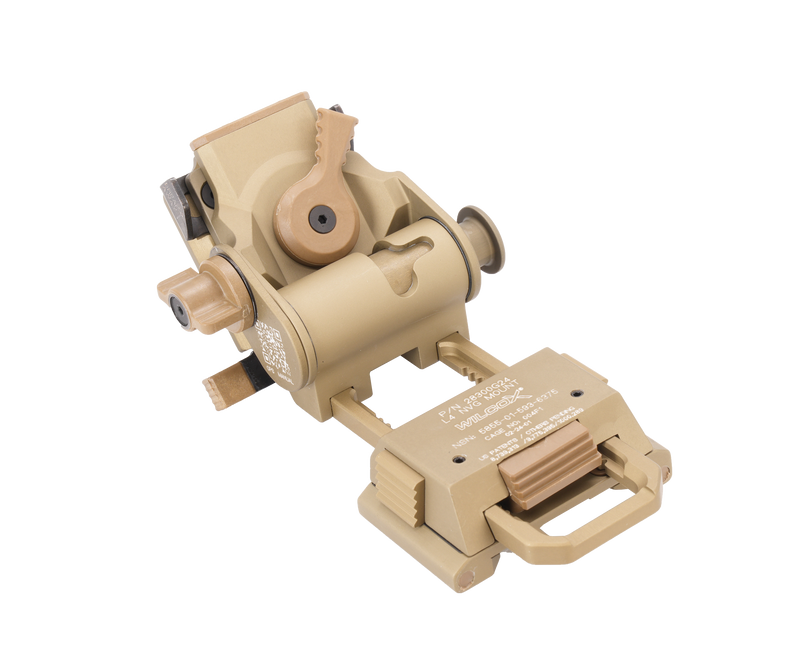

The Wilcox G24 Breakaway NVG Mount uses a dovetail device interface, adjustable positioning and a quick-release connection to a compatible helmet shroud. Confirm the exact generation and travel specification when comparing different G24 versions.

Argus G24-Style Mount

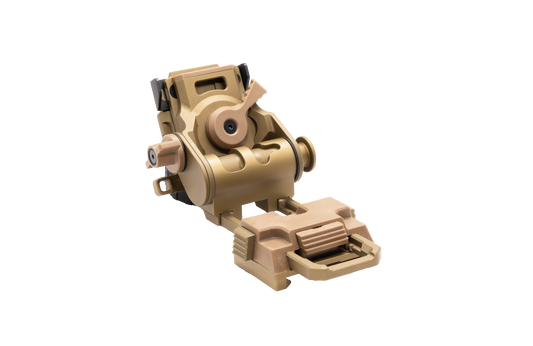

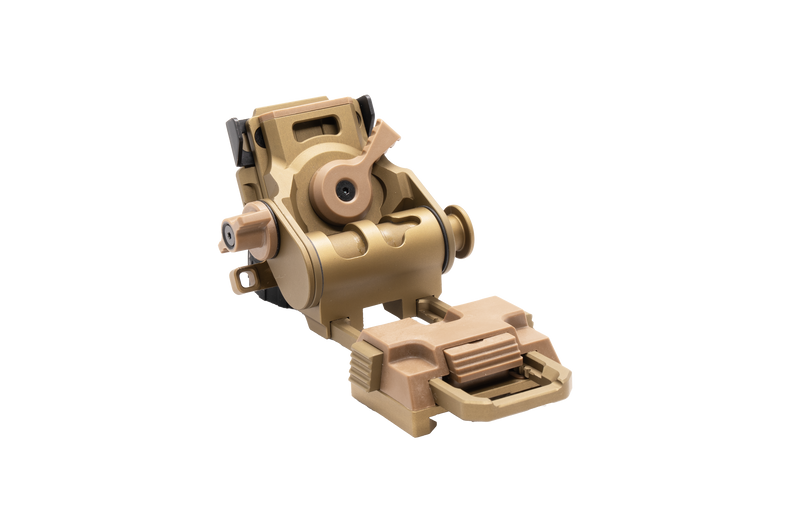

The Argus G24-Style LWNVM Mount provides an aluminium dovetail mounting option with a breakaway feature. It is not compatible with traditional bayonet-style J-arms.

Norotos Lo-Sto and INVG Mounts

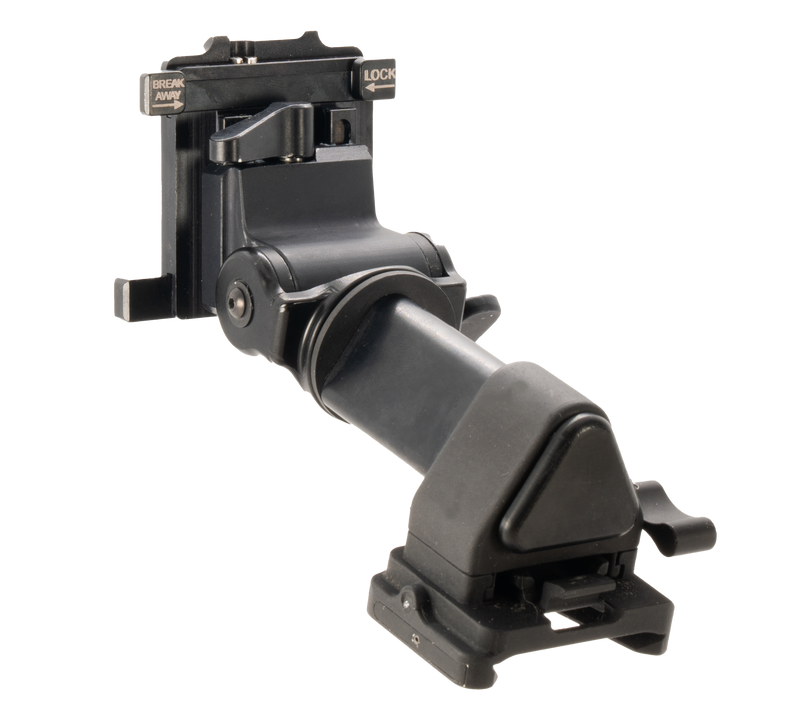

The Norotos range includes force-to-overcome and push-button Lo-Sto configurations, alongside the Norotos INVG Hyper. Depending on the selected interface, Norotos mounts can support modern dovetail devices or compatible bayonet equipment.

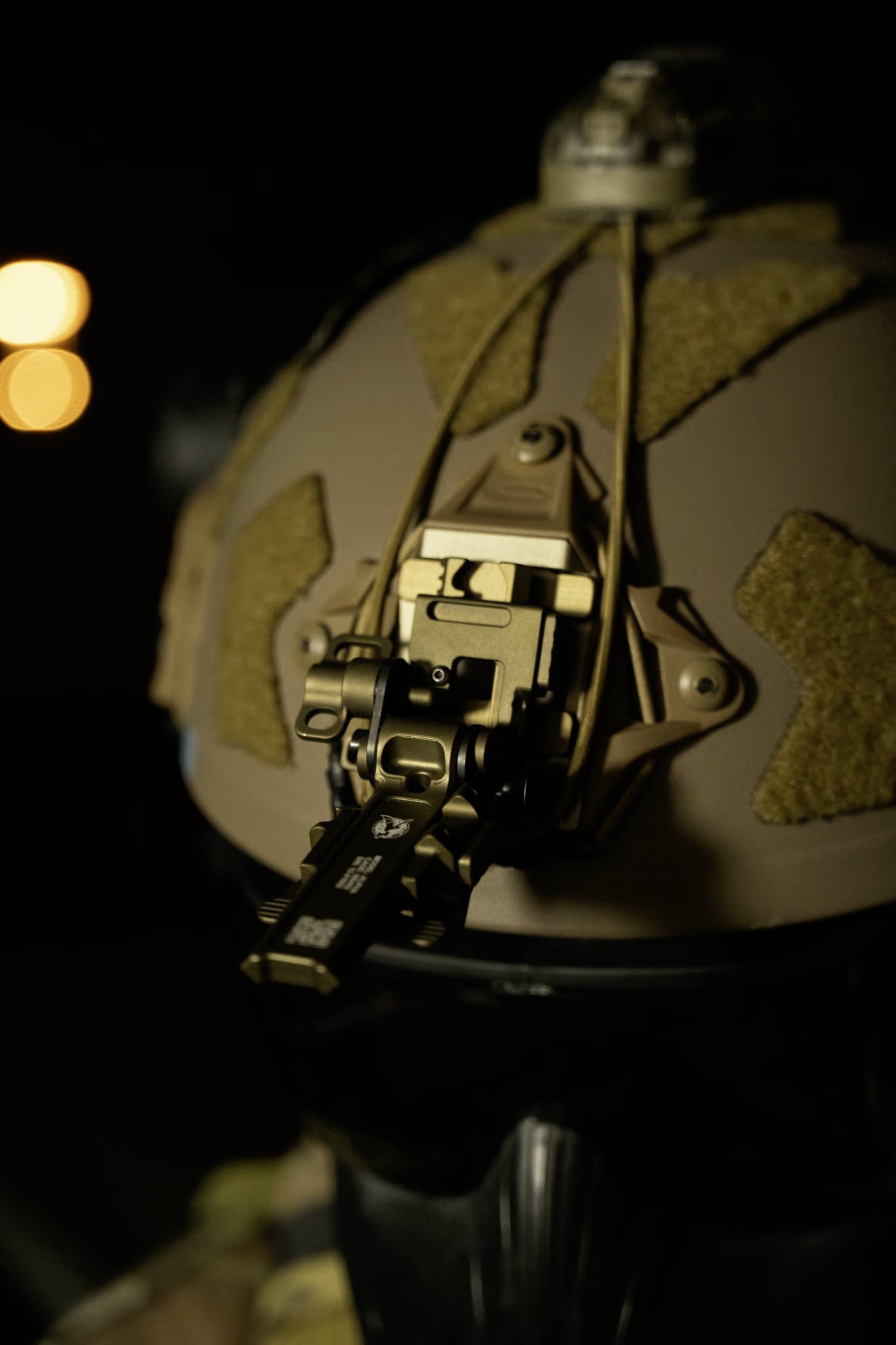

Helmet Mount, Shroud, J-Arm or Bridge?

Each part of the helmet-mounted system performs a different function:

• The helmet shroud attaches to the helmet shell.
• The NVG helmet mount connects to the shroud.
• A J-arm connects a monocular to the helmet mount.
• A bridge connects two compatible monocular or thermal devices.
• A binocular goggle may connect directly to the helmet mount through an integrated dovetail.

Browse the complete NVG mounting collection for helmet mounts, shrouds, J-arms, bridges and device-specific adapters.

Check Helmet Mount Compatibility

Before selecting a night vision helmet mount, confirm:

• The helmet-shroud interface
• Dovetail or bayonet device compatibility
• The exact night vision, thermal, J-arm or bridge model
• Force-to-overcome or push-button operation
• Breakaway or locked-mode requirements
• Vertical, tilt and fore-and-aft adjustment range
• Mount weight and stowed profile
• Powered or non-powered configuration
• Included adapters and mounting hardware
• Tether and secondary-retention requirements

Always verify that the mount is fully engaged with the shroud and device interface before attaching valuable equipment. Use an independent tether or secondary-retention system where supported.

Complete Your Helmet-Mounted NVG Setup

Complete the mounting system with a compatible helmet shroud, PVS-14 J-arm, night vision bridge and remote battery pack or counterweight.

Read our guide to mounting night vision and thermal devices on a helmet for a complete explanation of shrouds, mounts, arms, bridges and interface standards.
