PVS-14 Tools & Night Vision Builder Equipment

Explore specialised PVS-14 tools and night vision builder equipment for compatible device assembly, maintenance and servicing. This collection includes precision tools for PVS-14-style optical assemblies and purge adapters for supported monocular and binocular housings.

Night vision devices contain sensitive optical, electrical and image-intensifier components. Use only tools designed for the relevant retaining rings, lens assemblies and housing interfaces. Incorrect tools, excessive torque or incompatible purge fittings can damage threads, optical coatings, seals or the image intensifier tube.

Specialised PVS-14 Assembly Tools

PVS-14 Maintenance Tool Sets

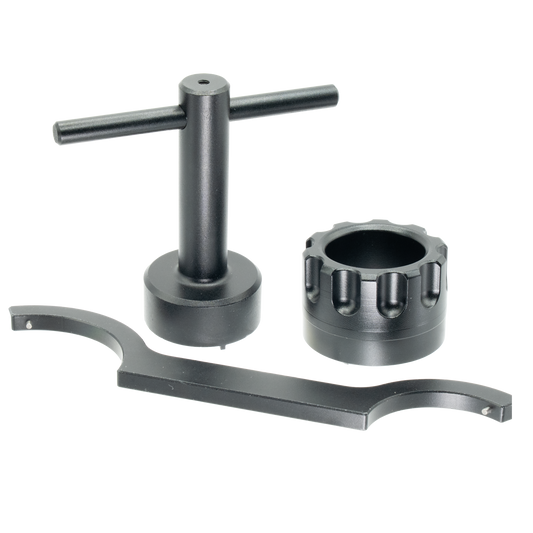

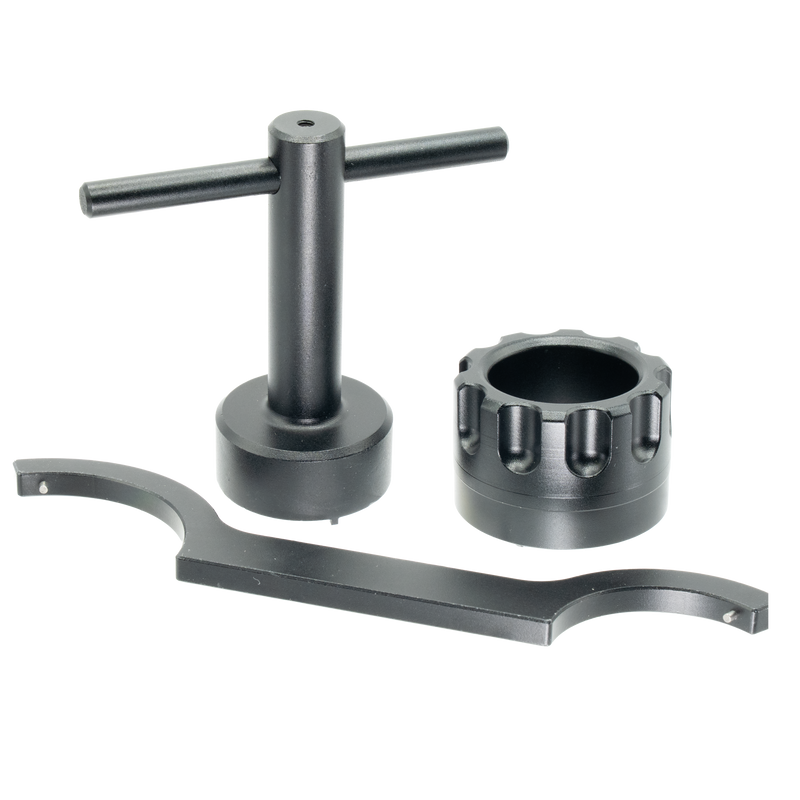

The Argus PVS-14 Specialised Tool Set is designed for compatible AN/PVS-14 assembly, disassembly and maintenance tasks. Purpose-built tools provide a more controlled interface with retaining rings, lens components and focus-stop assemblies than improvised pliers or general-purpose spanners.

A complete PVS-14 maintenance set may include tools for:

• Image intensifier tube retaining rings
• Objective-lens retaining components
• Eyepiece locking rings
• Close-focus and infinity-stop adjustment
• Compatible optical and housing assemblies

Confirm the exact tools included in the set before purchase. Tool compatibility can vary between genuine PVS-14 components, commercial PVS-14-style optics and manufacturer-specific housings.

Night Vision Nitrogen Purge Adapters

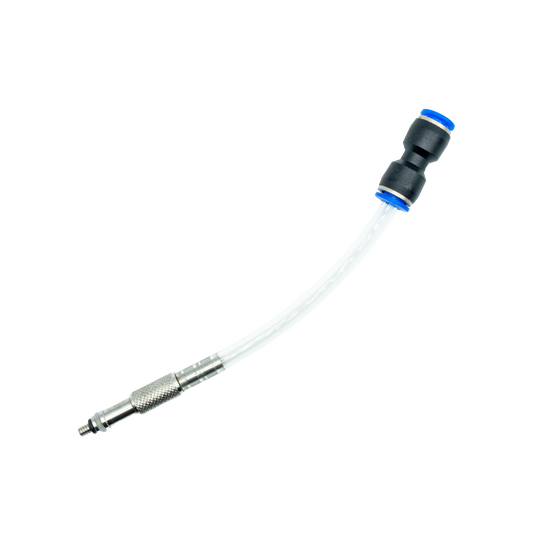

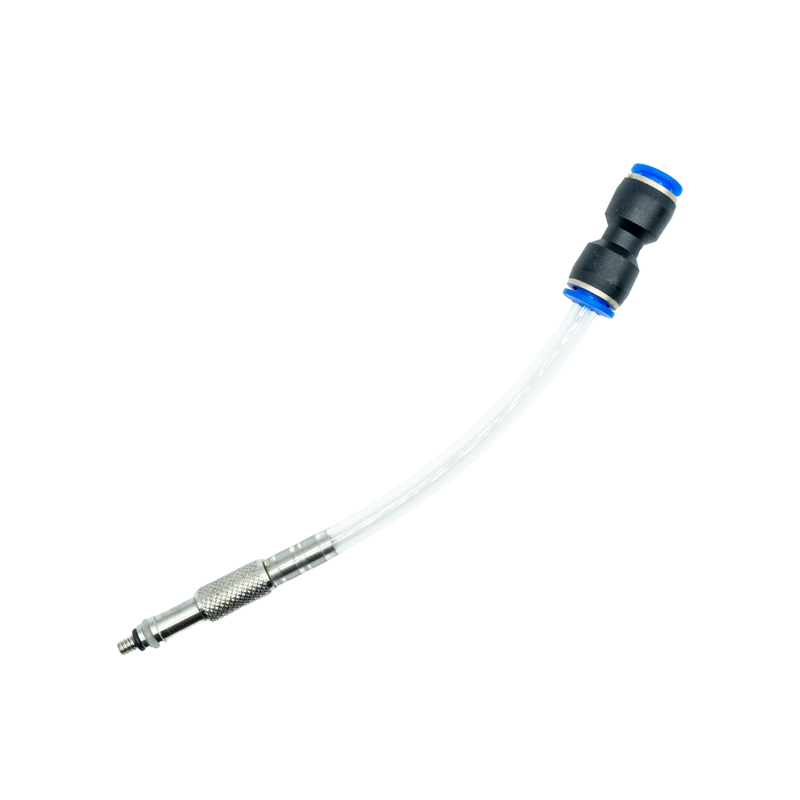

PVS-14 Purge Valve Adapter

The PVS-14 Nitrogen Purge Adapter connects compatible night vision housings to an appropriate servicing and purging system. The current 6-32 configuration is listed for supported housings including selected PVS-14, BNVD-1431, RNVG, RPNVG, MOD-3, Sentinel, Argus-31A and MH-14 systems.

A purge adapter is only one component of a complete servicing setup. Appropriate gas supply, pressure regulation, hoses, fittings, seals and leak-testing equipment may also be required. The product page must clearly state whether the listing contains only the adapter or a complete purge system.

Why Purge a Night Vision Device?

Opening a sealed night vision housing can introduce ambient air and moisture into the device. Purging with an appropriate dry inert gas after assembly or servicing helps reduce the risk of internal condensation during temperature changes.

Purging does not confirm that a housing is correctly sealed. A serviced device should also be checked for leaks, optical focus, image quality and correct operation using suitable equipment.

Tools for PVS-14-Style Monoculars and Binocular Housings

Many modern night vision systems use PVS-14-style objective lenses, eyepieces, retaining rings or image intensifier formats. However, the use of PVS-14-pattern optics does not guarantee that every PVS-14 tool or purge fitting will support the complete housing.

Before ordering builder tools, confirm:

• The exact housing manufacturer and model
• The housing production version or serial-number range
• The objective and eyepiece manufacturer
• The retaining-ring and thread specifications
• The purge-port thread size
• The tools and adapters included with the product
• Whether replacement seals or O-rings are required

Browse compatible night vision housings, image intensifier tubes and night vision lenses and PVS-14 parts when planning a complete build or housing upgrade.

Assembly Tools Versus Professional Testing Equipment

A specialised tool set can support controlled installation and removal of compatible components, but it does not replace professional optical testing equipment. A completed night vision device may still require:

• Objective and eyepiece focus calibration
• System-resolution testing
• Image intensifier inspection
• Electrical-function testing
• Housing leak testing
• Nitrogen purging
• Binocular optical alignment and collimation

Collimation is particularly important for dual-tube systems because the two intensified channels must be correctly aligned for comfortable binocular viewing. Mechanical assembly alone does not confirm optical alignment.

Protect Sensitive Night Vision Components

Work in a clean, organised environment and protect image intensifiers and internal optical surfaces from dust, moisture, fingerprints and static discharge. Do not place tools directly against intensifier input or output windows, and avoid using excessive force on polymer threads and retaining rings.

Store small screws, seals, light pipes, collars and retaining components separately during servicing. Browse night vision lens protectors and NVG accessories for additional optical protection.

Professional Night Vision Assembly and Servicing

Users without the necessary tools, clean working environment and test equipment should use a specialist assembly or repair service. This is especially important for intensifier installation, binocular collimation, electrical faults, water-ingress repairs and devices requiring complete leak testing.

Learn more about Night Raider’s night vision assembly, collimation, purging and testing process. Our basic night vision guide and night vision terminology guide provide additional information about housings, optics and image intensifiers.
