Night Vision Battery Packs & NVG Remote Power

Extend device runtime and improve helmet balance with night vision battery packs, remote power systems and NVG power cables. This collection includes AA, CR123A and 18650 battery solutions for compatible dual-tube, panoramic and Jerry-series night vision devices.

External-power compatibility depends on the night vision housing, connector type, operating voltage and selected cable. Confirm whether your device uses a Fischer, LEMO or proprietary power interface before ordering. A connector that physically fits does not automatically confirm electrical compatibility.

Choose the Right NVG Battery Pack

Universal Remote Battery Packs

Universal remote battery packs are designed for night vision housings equipped with a supported external-power port. They are normally mounted towards the rear of a helmet, where they can provide additional runtime while helping offset the forward weight of a helmet-mounted goggle.

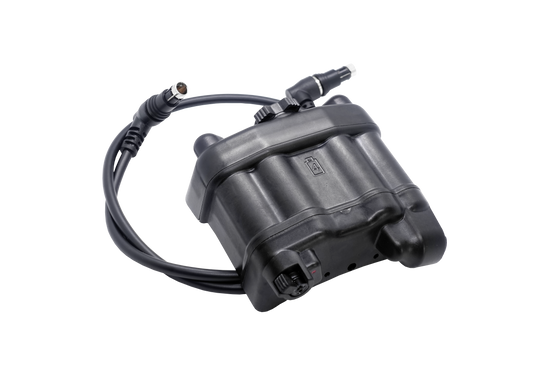

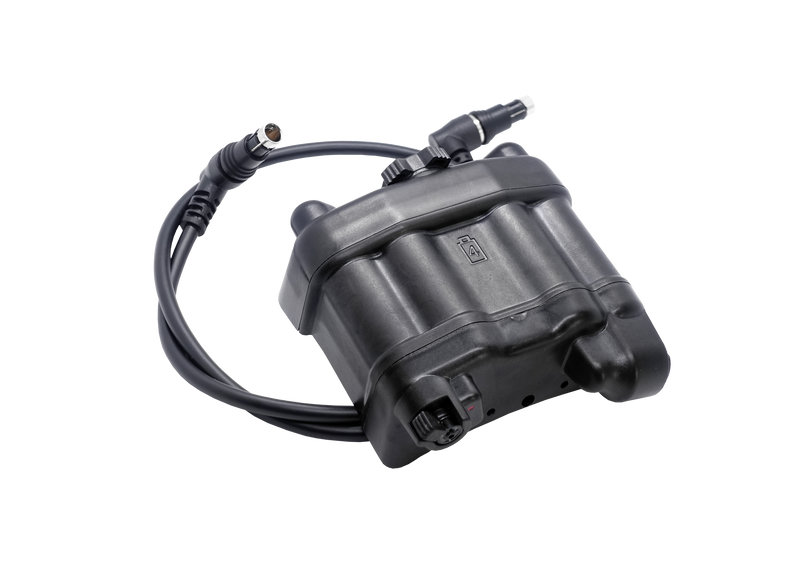

The Argus Remote Battery Pack uses four AA batteries and is intended for compatible systems with an appropriate remote-power connection. Supported configurations may include selected 1431, PVS-31-style, DTNVS, Katana, Manticore and Daisho systems, but the exact housing version and cable must be verified before use.

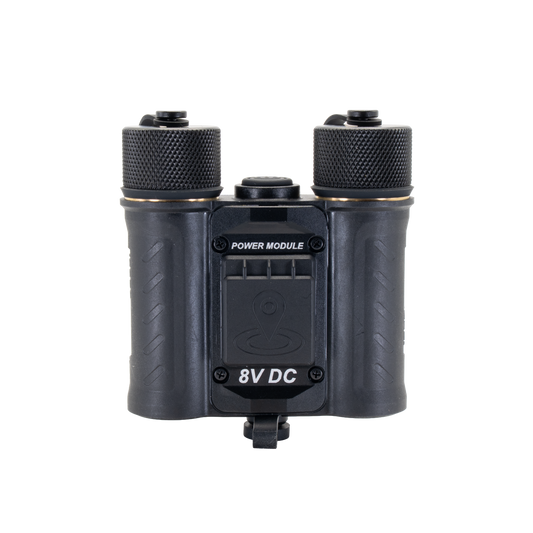

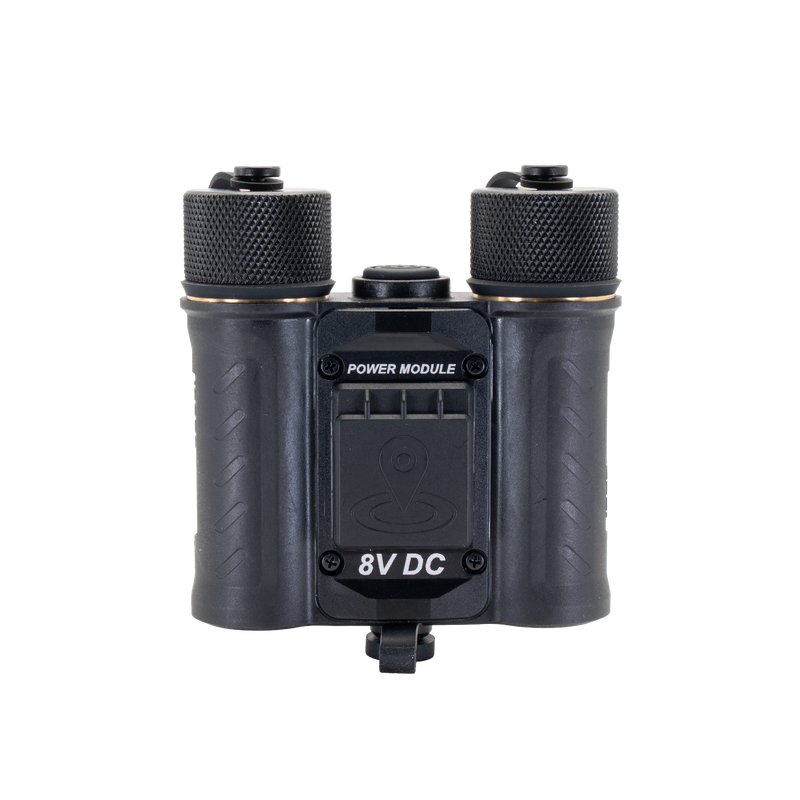

Jerry-31 External Battery Pack

The InfiRay Jerry-31 External Battery Pack is a model-specific remote-power solution for compatible Jerry and RIX night vision systems. It uses two 18650 batteries and mounts to the rear of the helmet using a removable hook-and-loop mounting plate.

This battery pack includes a coiled power cable and can also function as a practical helmet counterweight. Confirm compatibility with the exact Jerry or RIX model because battery packs and cables intended for one product generation may not support another.

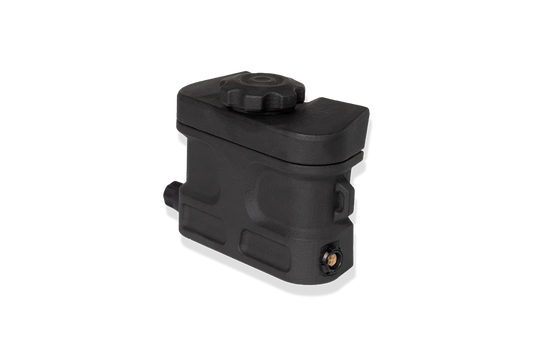

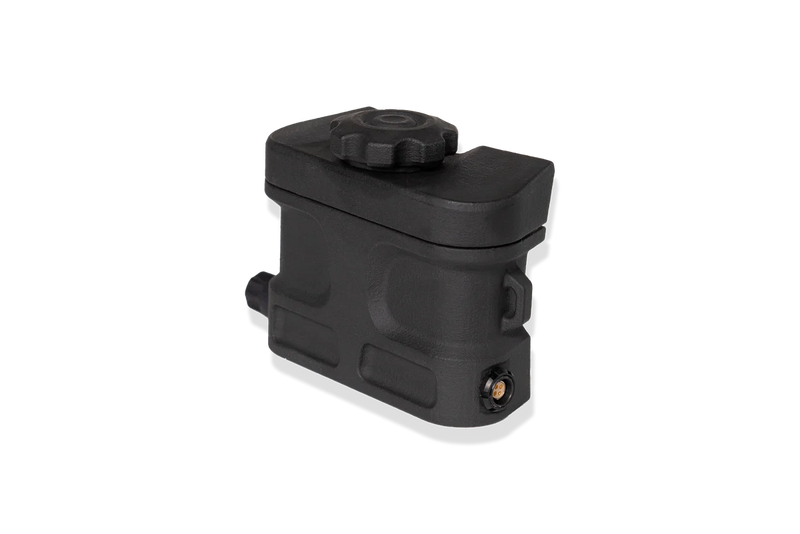

Nocturn Industries Bat Pack

The Nocturn Industries Bat Pack uses four CR123A batteries and supports selectable cable configurations for compatible binocular and panoramic night vision devices.

Available connector options include LEMO 00B two-pin and Fischer four-pin configurations. The required option depends on the external-power port fitted to the housing, not simply the device family or product name.

LEMO and Fischer NVG Power Connections

Remote night vision power systems commonly use LEMO or Fischer-style connectors. These terms describe connector families rather than universal compatibility standards. Pin count, connector gender, cable wiring, voltage and device electronics must all match.

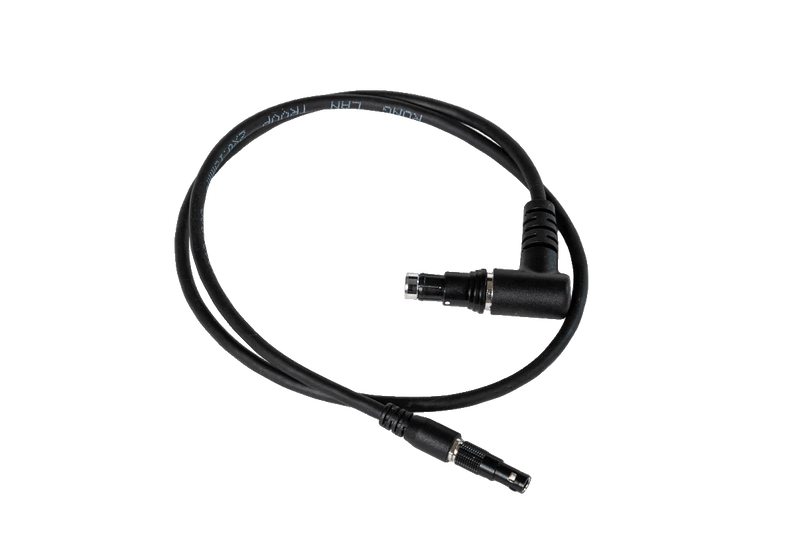

The four-pin Fischer to two-pin LEMO 00B cable converts between specific battery-pack and housing interfaces. It should only be used where both the battery source and night vision device are confirmed to support that cable configuration.

Do not modify, force or independently rewire an NVG power cable without verified manufacturer specifications. Incorrect polarity or voltage can damage the battery pack, housing electronics or connected night vision device.

AA, CR123A or 18650 Battery Packs?

AA Battery Packs

AA remote packs provide broad battery availability and are commonly used with PVS-31-style and universal strobe battery-pack designs. Compare pack dimensions, battery orientation, cable compatibility and environmental sealing before selection.

CR123A Battery Packs

CR123A configurations can offer a compact power source for binocular and panoramic systems. Confirm whether the pack requires standard primary CR123A cells and whether rechargeable alternatives are approved by the manufacturer.

18650 Battery Packs

Model-specific 18650 packs can provide extended runtime for compatible devices such as the Jerry-31. Cell length, terminal style, protection circuitry and cap configuration may vary, so use only batteries that meet the product specifications.

Battery Packs for Binocular and Panoramic Night Vision

Many dual-tube night vision binoculars include an onboard battery compartment and an optional external-power port. A remote pack can extend runtime and relocate some battery weight towards the rear of the helmet.

Panoramic night vision goggles generally have greater power requirements because they operate four intensifier channels. These systems may require a dedicated battery pack, cable or connector configuration rather than the same setup used by a conventional binocular.

Before choosing a battery pack, verify:

• The exact night vision housing and version
• Connector family and pin count
• Connector gender and cable orientation
• Required operating voltage
• Approved battery chemistry and cell type
• Whether the power cable is included
• Expected runtime with the connected device
• Weather resistance and environmental sealing
• Helmet attachment and cable-management method

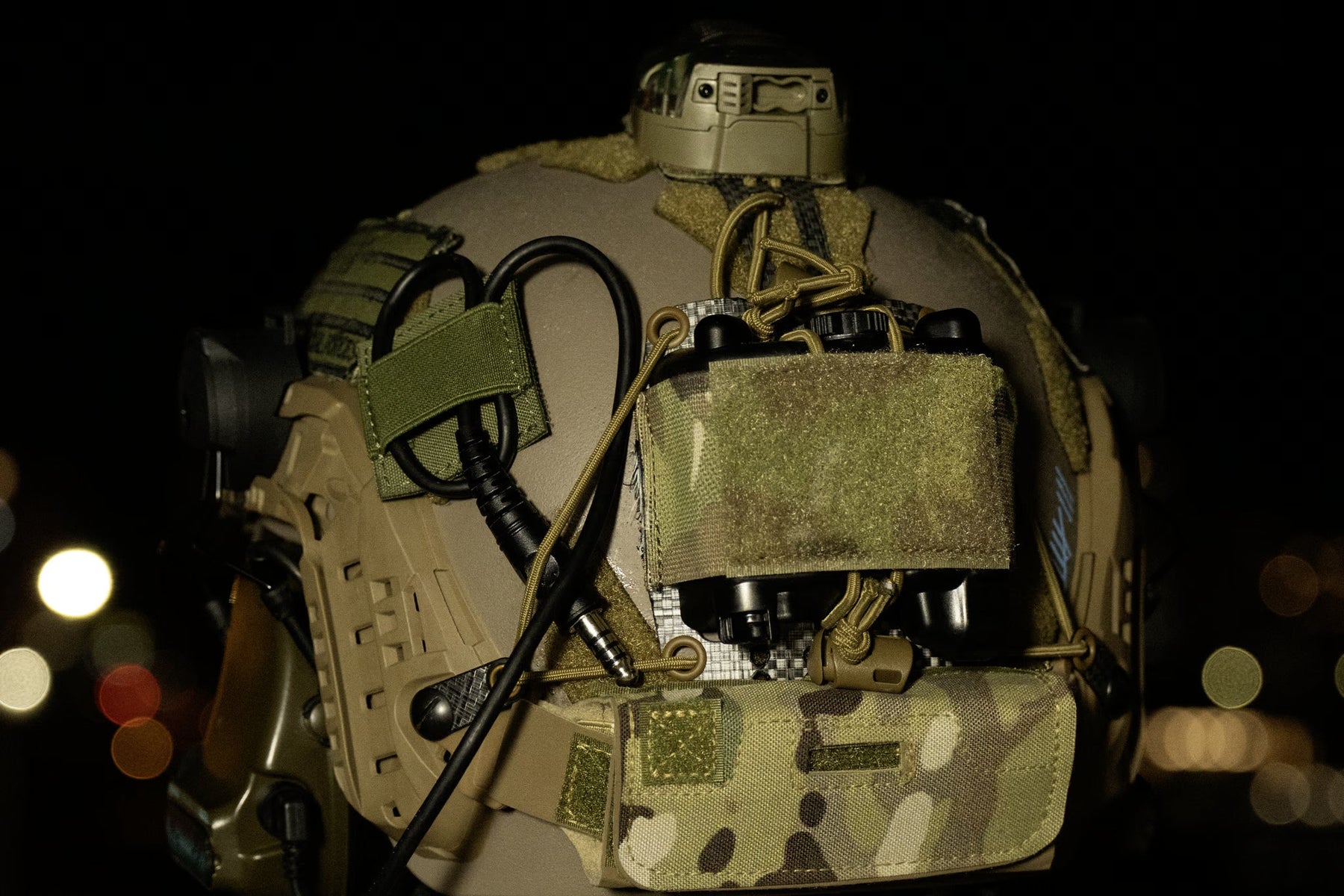

Helmet Balance and Cable Management

A rear-mounted battery pack can contribute to helmet balance, but it must remain securely retained. Route the cable so that it does not interfere with the helmet mount, device articulation, adjustment controls or safe removal of the night vision system.

Complete your setup with a compatible helmet mount and browse all night vision accessories. Our guide to mounting night vision goggles on a helmet explains the main interfaces within a head-mounted system.

Using and Storing NVG Battery Packs

Inspect battery compartments, seals, cables and connectors before use. Remove depleted or leaking cells promptly and avoid mixing battery types, brands, charge states or manufacturing ages within the same pack.

Disconnect external power before storing the system for extended periods. Follow the battery and device manufacturers’ instructions for transportation, charging, storage temperature and cell disposal.

For more information about external-power ports and helmet balance, read our guide to choosing a night vision binocular.
