Night Vision Recorders & NVG Camera Adapters

Capture first-person footage through compatible analogue night vision devices with night vision recorders and NVG camera adapters. These accessories are designed to record the intensified image seen through PVS-14-style eyepieces without replacing the night vision device itself.

Compare dedicated helmet-mounted recorders, smartphone adapters and camera-lens interfaces according to recording resolution, frame rate, storage capacity, battery life, attachment method and device compatibility.

Record Video Through Your Night Vision Device

Dedicated NVG Recorders

A dedicated night vision recorder attaches close to the eyepiece and records the visible intensified image while the device remains in use. This provides a compact alternative to holding a separate camera behind the ocular lens.

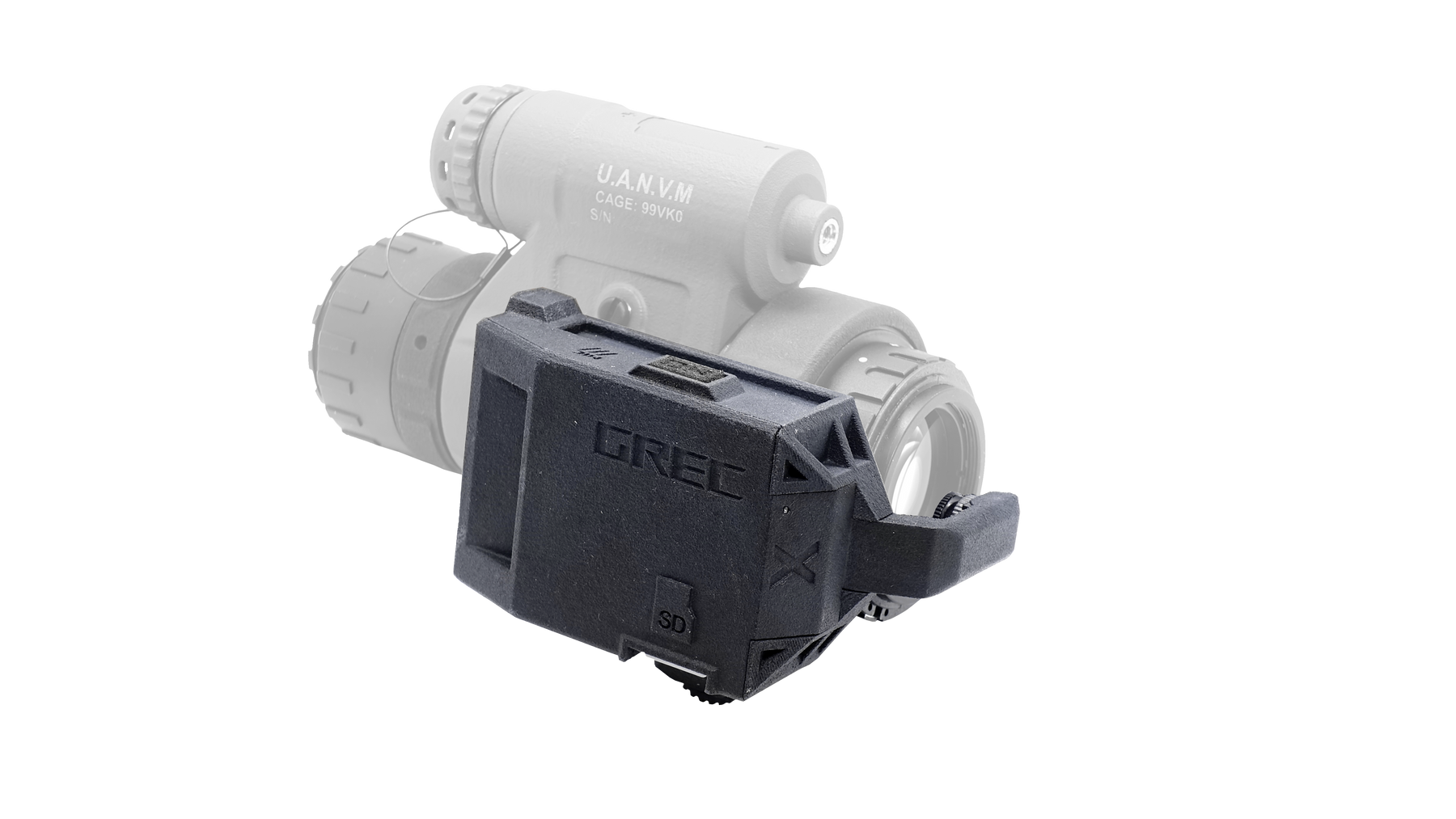

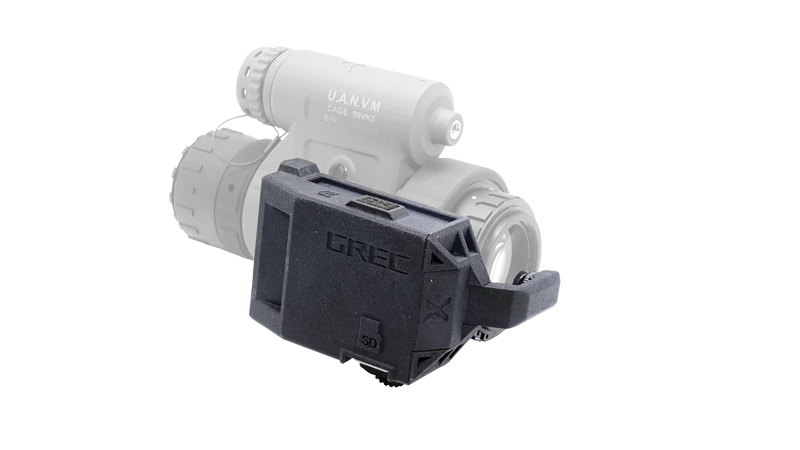

The GREC-X Night Vision Recorder records 1080p video at up to 60 frames per second and includes an internal microphone, rechargeable battery and microSD storage support. The recorder is designed for compatible PVS-14-style eyepiece assemblies.

Before ordering, confirm the eyepiece interface and physical clearance on the exact monocular or binocular housing. A device using PVS-14-style optics may still require a specific recorder version or mounting adapter.

Night Vision Phone Adapters

A night vision phone adapter aligns a smartphone camera with a compatible eyepiece for still images and video. Phone adapters are useful for demonstrations, equipment comparisons and static observation, although they are generally less compact than a dedicated helmet-mounted recorder.

Results depend on the phone-camera layout, alignment, focus, exposure settings and the stability of the adapter. Confirm that the clamp and ocular interface support both the selected phone and night vision device.

NVG Camera and Lens Adapters

Camera adapters connect compatible night vision eyepieces to photography or video equipment. Depending on the adapter, this may include DSLR, mirrorless, cinema or action-camera systems.

A direct optical connection can provide more consistent alignment than positioning a handheld camera behind the eyepiece. Verify the camera mount, lens diameter, night vision eyepiece and required retaining components before building a recording setup.

Choose a Recorder for Your NVG Format

PVS-14 and Monocular Recording

Night vision monoculars using PVS-14-style eyepieces offer broad compatibility with recording accessories. The recorder normally attaches to the ocular side of the device and should not interfere with focus adjustment, helmet mounting or safe eye relief.

Dual-Tube Night Vision Recording

When fitting a recorder to dual-tube night vision goggles, confirm which optical pod and eyepiece will support the accessory. Added weight on one side may affect balance, articulation and the device’s stowed position.

Panoramic and Fusion-Goggle Recording

Panoramic night vision goggles and thermal-fusion systems may require model-specific recorders because of their optical layout, housing geometry and available mounting space. A standard PVS-14 recorder should not be assumed to fit a panoramic or fusion device.

Compare Recording Specifications

When selecting a night vision recording system, compare:

• Video resolution and frame rate
• Low-light recording quality
• Internal or external microphone support
• Maximum memory-card capacity
• Rechargeable or replaceable power
• Expected recording time
• Start, stop and status controls
• Recorder weight and dimensions
• Eyepiece and housing compatibility
• Weather and impact resistance

The recorded image may not perfectly reproduce what the user sees through the eyepiece. Camera exposure, sensor response, compression, focus, alignment and screen settings can all change the appearance of the final footage.

Set Up an NVG Recorder Correctly

Install the recorder without forcing the eyepiece, diopter ring or accessory threads. Confirm that the recording device does not obstruct helmet articulation, interpupillary adjustment, manual controls or the safe stowing of the night vision system.

Format the recommended memory card, charge the recorder and verify focus, alignment, audio and storage before use. Record a short test clip in representative lighting conditions rather than relying only on a daytime setup check.

Complete Your Night Vision Setup

Browse all night vision accessories or complete your system with compatible helmet mounts, battery packs and optical protection.

Read our guide to mounting night vision goggles on a helmet, learn how analogue systems produce an image in our basic night vision guide, and review Night Raider’s complete-system testing standards.
