NVG Mounts, J-Arms & Night Vision Bridges

Build a secure helmet-mounted night vision system with professional NVG mounts, PVS-14 J-arms, night vision bridges, helmet shrouds and device adapters. This collection includes mounting solutions for monoculars, binocular goggles, bridged PVS-14 systems and compatible helmet-mounted thermal devices.

Compare products from Wilcox, Norotos, Argus, Noisefighters and Falconclaw. Before ordering, confirm every interface within the mounting chain: helmet, shroud, helmet mount, J-arm or bridge, and the night vision or thermal device itself.

Choose the Right Night Vision Mounting System

A complete helmet-mounted NVG setup normally consists of:

1. A compatible helmet or head harness
2. A helmet shroud
3. An NVG helmet mount
4. A J-arm, bridge or direct device interface
5. The night vision or thermal device

Each component must use a compatible mechanical interface. A helmet mount described as “dovetail” will not automatically support a bayonet or mini-rail device without the correct arm or adapter.

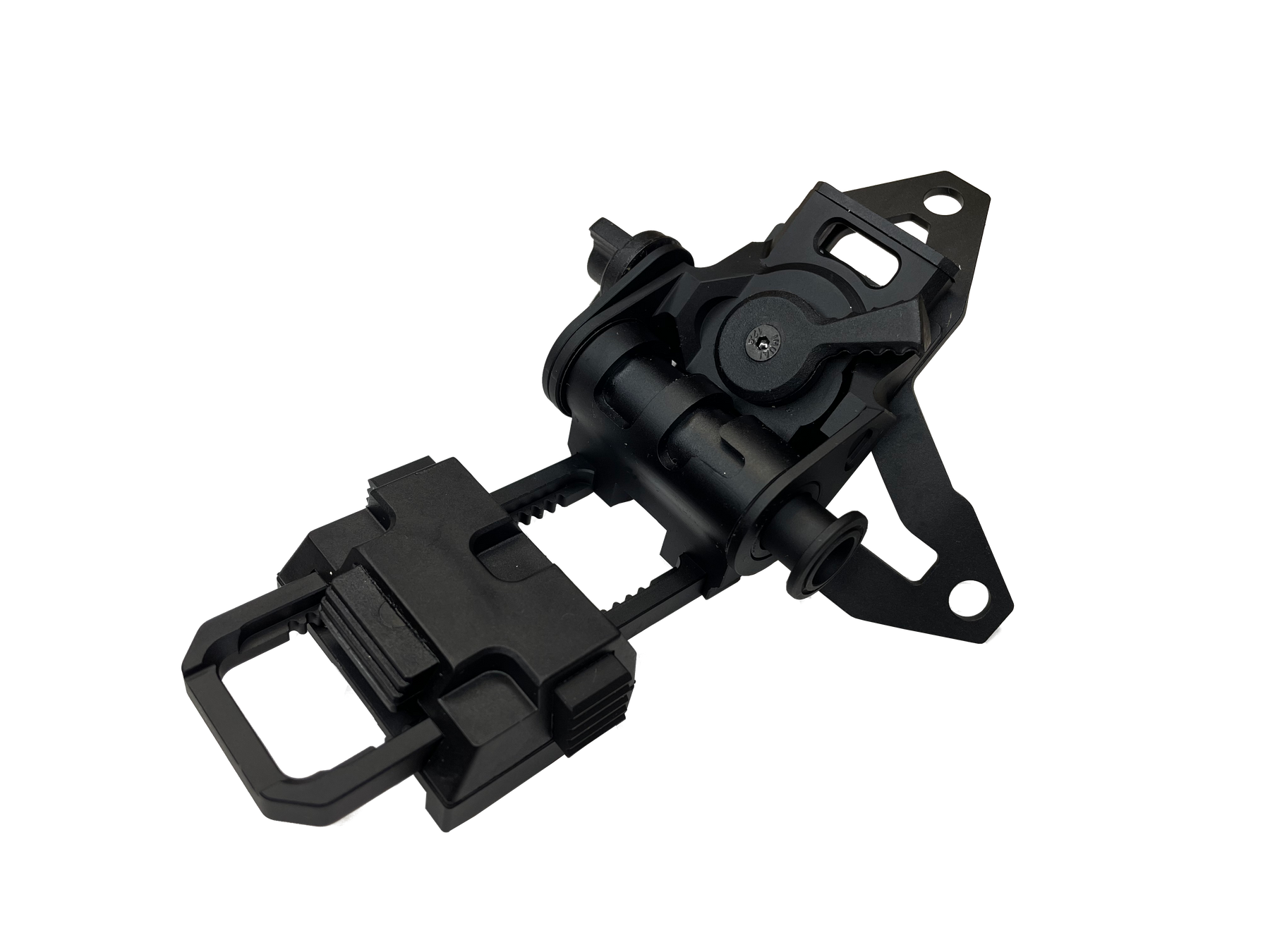

NVG Helmet Mounts

An NVG helmet mount connects the helmet shroud to the night vision device, J-arm or bridge. Most models allow the device to be lowered into the viewing position and raised above the helmet when it is not required.

Wilcox G24 Night Vision Mount

The Wilcox G24 is a dovetail helmet mount with adjustable positioning, a quick-release interface and a manufacturer-specified breakaway function. Confirm that the selected device, arm or bridge uses a compatible dovetail before connecting it to the mount.

Argus G24-Style NVG Mount

The Argus G24 LWNVM Mount provides an aluminium dovetail mounting option with an integrated breakaway feature. It is not intended for legacy bayonet-style J-arms.

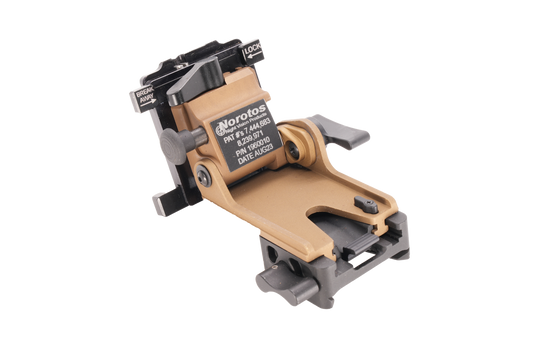

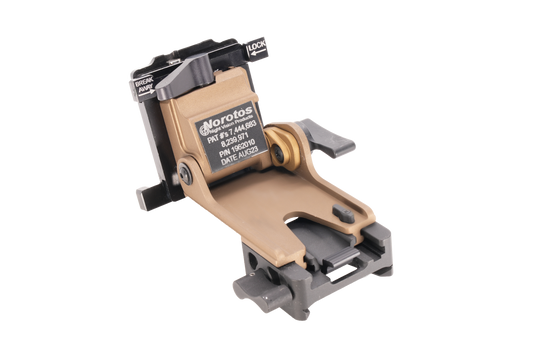

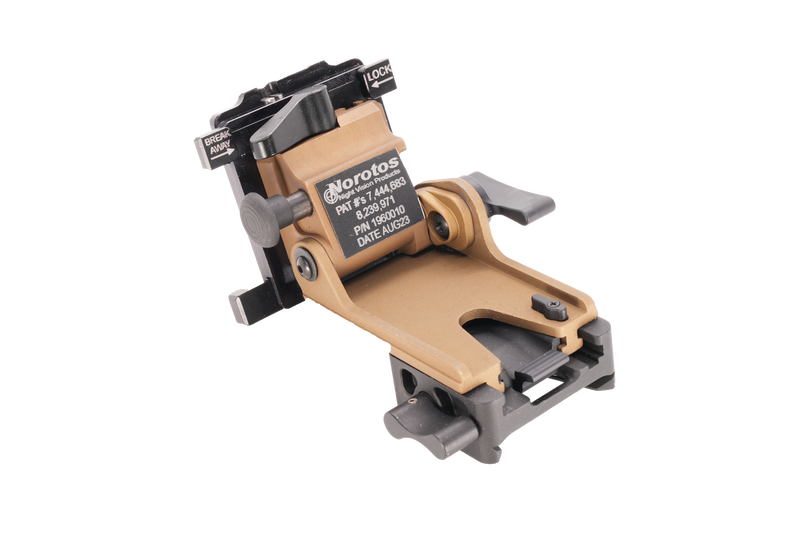

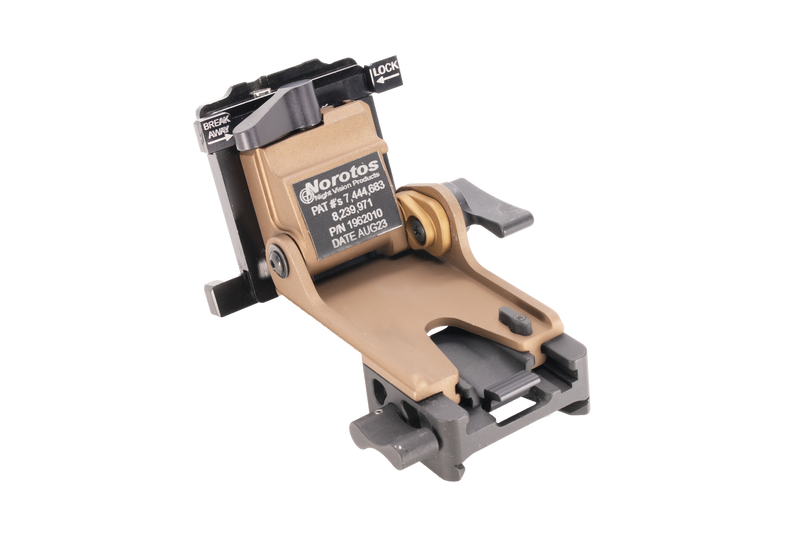

Norotos Night Vision Mounts

Compare the Norotos Lo-Sto and other Norotos mounting systems according to interface, adjustment range, operating method and shroud compatibility. Product versions may use force-to-overcome or push-button controls, so the exact configuration should be confirmed on the product page.

PVS-14 J-Arms and Monocular Mounts

A night vision J-arm connects a compatible monocular to the helmet mount. The correct arm depends on the device attachment point and the helmet-mount interface.

Dovetail PVS-14 J-Arms

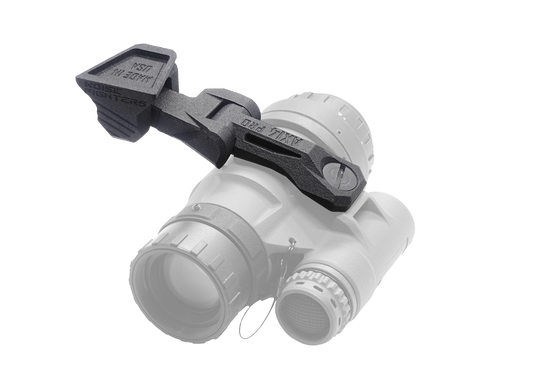

The Noisefighters AX14-PRO is a lightweight articulating arm for compatible PVS-14-style monoculars. It requires a dovetail helmet mount and allows the monocular to be repositioned or stowed closer to the helmet.

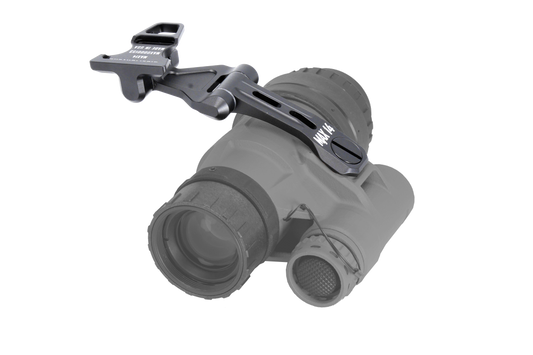

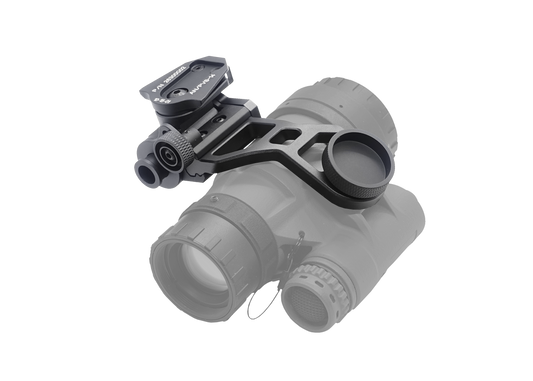

Other PVS-14 options include the MAX14 and traditional J-arms. Compare material, total weight, articulation, interpupillary adjustment, tether points and left- or right-eye positioning.

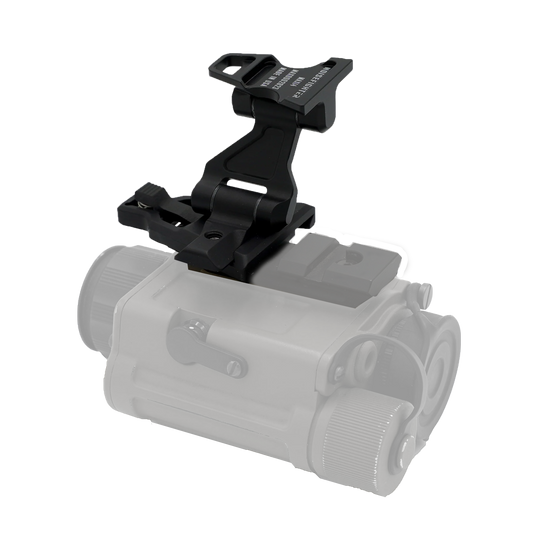

J-Arms for Helmet-Mounted Thermal Devices

The Noisefighters DMAX14 is designed for compatible thermal monoculars equipped with a supported dovetail attachment. Mini-rail thermal devices require a purpose-built mini-rail arm or an approved conversion adapter.

Do not assume that an arm designed for a PVS-14 will support a thermal monocular. Device-side rail standards, centre of gravity, eye relief and mounting orientation may differ.

Night Vision Bridges

A night vision bridge can connect two compatible monoculars or combine night vision and thermal devices within one helmet-mounted system. Bridge selection must account for device adapters, weight, articulation, interpupillary adjustment and helmet-mount interface.

Noisefighters Panobridge

The Noisefighters Panobridge M1 is an articulating bridge for dual PVS-14 configurations and selected thermal monoculars. Its independently adjustable arms allow users to configure conventional parallel viewing or alter the angle of compatible devices.

Mini-rail arms and thermal quick-detach adapters are separate components and must be matched to the exact thermal device.

Falconclaw Quick-Detach Bridge

The Falconclaw QDB supports compatible Falconclaw adapters for dual-night-vision, dual-thermal and mixed night-vision-plus-thermal configurations. The bridge uses a dovetail helmet-mount interface and includes articulation and adjustable interpupillary stops.

Dovetail, Bayonet and Mini-Rail Interfaces

Dovetail Mounts

Dovetail interfaces are commonly found on modern binocular goggles, helmet mounts, PVS-14 arms and bridge systems. Both sides of the connection must use a compatible dovetail profile and correctly lock before the device is used.

Bayonet Mounts

Legacy bayonet J-arms require a compatible bayonet helmet mount. They must not be inserted into a dovetail-only mount. Users upgrading from a bayonet system may need both a new helmet mount and a new J-arm.

Mini-Rail Mounts

Mini-rail interfaces are used by selected night vision and thermal monoculars. These devices require a compatible mini-rail arm, bridge adapter or conversion component rather than a standard PVS-14 J-arm.

Helmet Shrouds and Mounting Hardware

A helmet shroud provides the interface between the helmet shell and the NVG mount. Available options include three-hole shrouds and model-specific mounting solutions.

Confirm the helmet drilling pattern, shell construction, mounting hardware and shroud-to-mount interface. Installation must not compromise the helmet shell or interfere with internal padding and retention components.

Night Vision and Thermal Bridge Setups

Hybrid systems pair a night vision monocular with a compatible helmet-mounted thermal monocular. These configurations require a bridge and separate device-specific adapters that position both displays correctly for the user.

Added weight and asymmetrical device placement can affect balance and viewing comfort. A secure rear counterweight or NVG battery pack may help balance the helmet, but every component must remain independently retained.

Check Compatibility Before Ordering

Before selecting an NVG mount, arm or bridge, confirm:

• The exact night vision or thermal device model
• Device-side dovetail, bayonet, mini-rail or threaded interface
• Helmet-mount interface
• Helmet-shroud compatibility
• Monocular, binocular or hybrid configuration
• Required left- or right-eye positioning
• Articulation and interpupillary adjustment
• Product weight and helmet balance
• Tether and secondary-retention points
• Whether adapters and mounting hardware are included

Read our guide to mounting night vision goggles on a helmet for an explanation of helmets, shrouds, NVG mounts, J-arms, bridges and device interfaces.
