MAX14

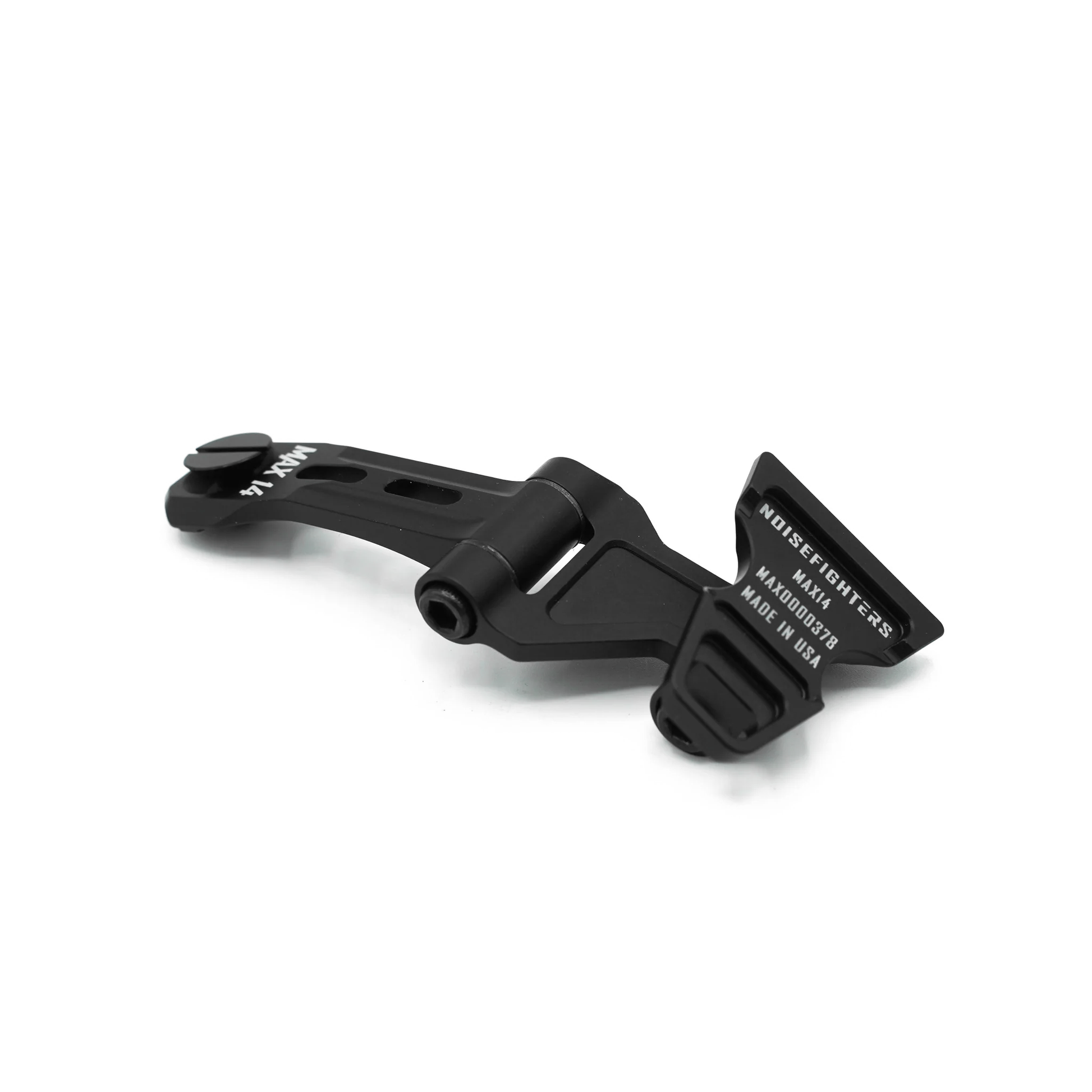

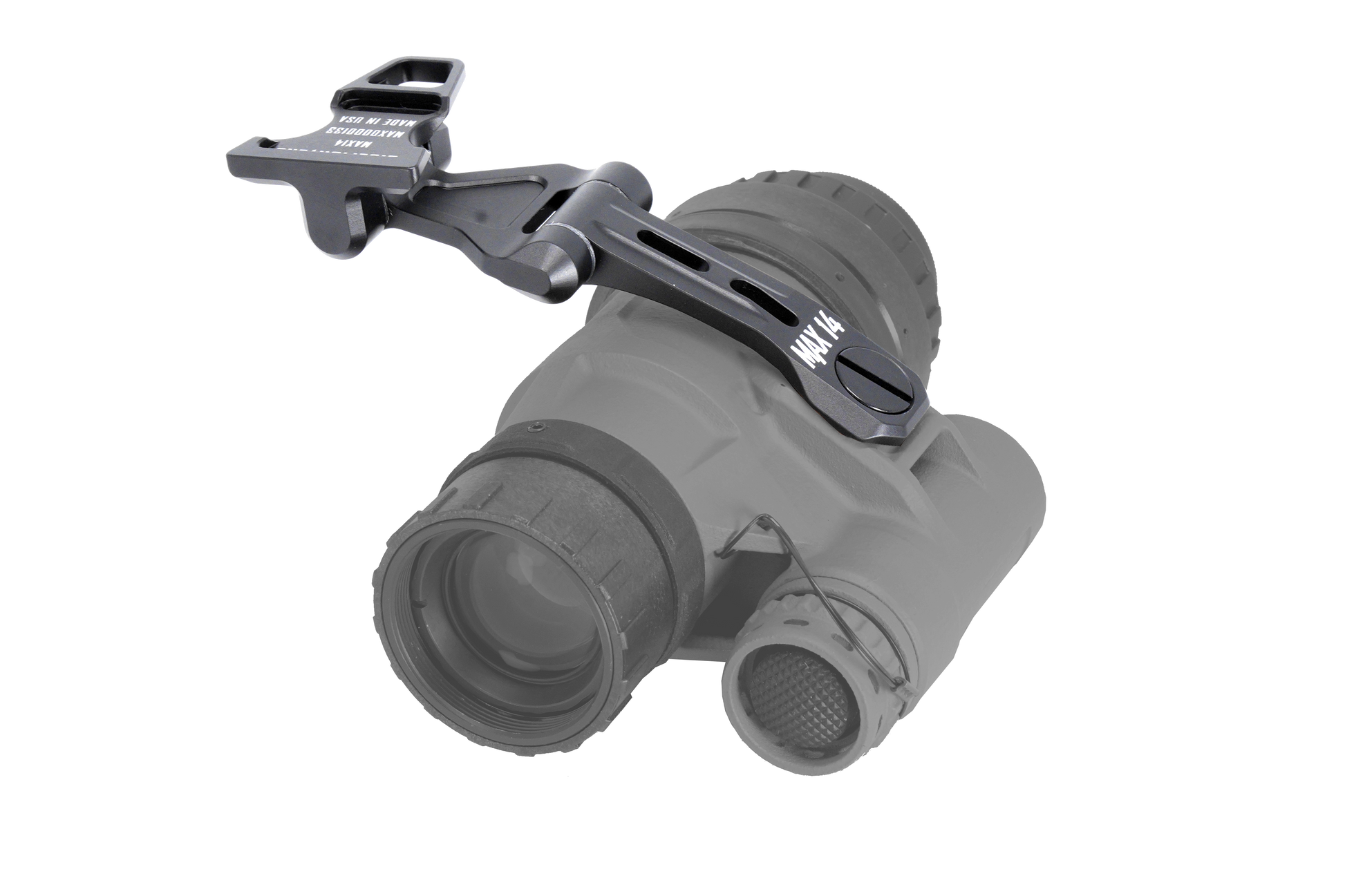

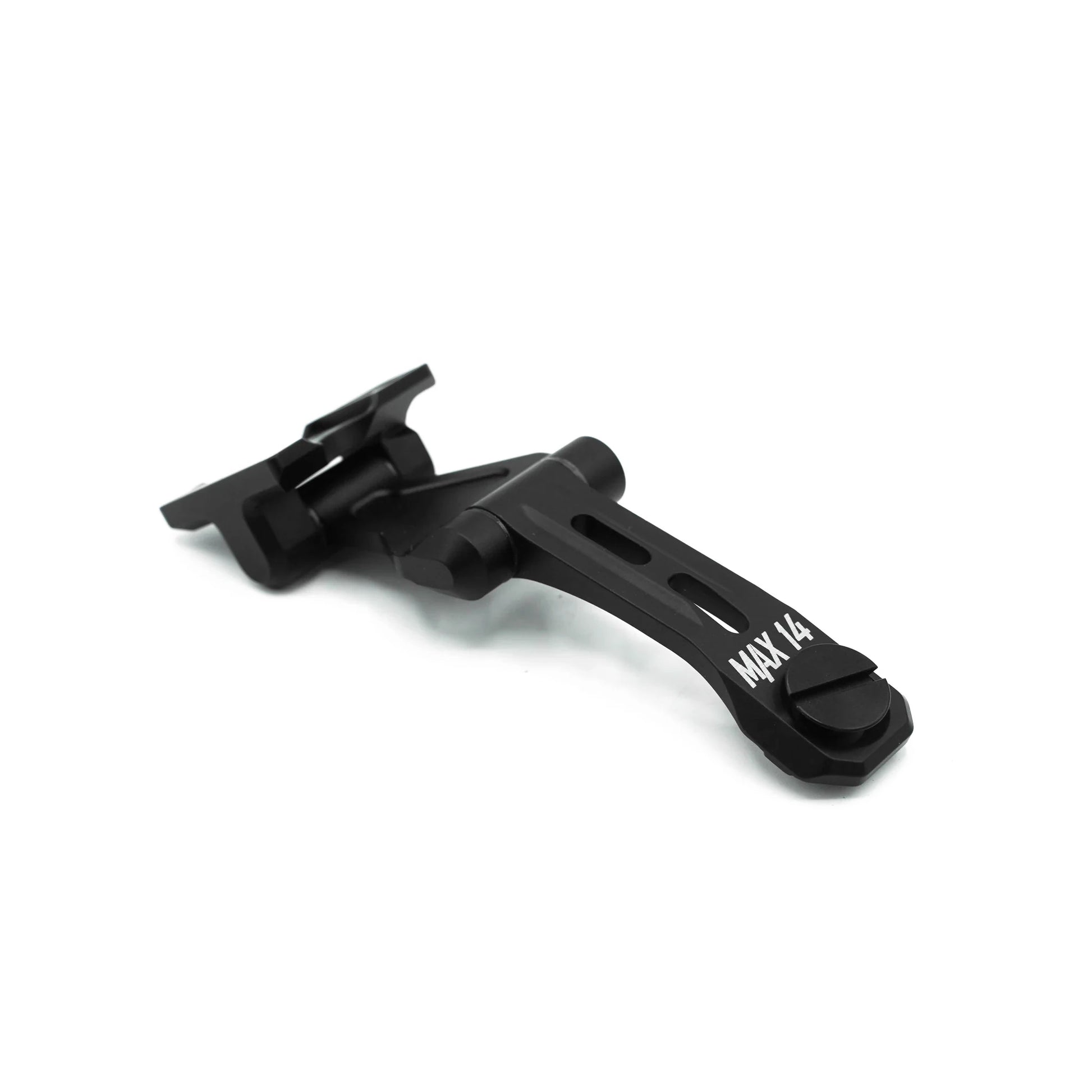

MAX14™ is a metal version of the AX14-PRO. is a rigid, incredibly lightweight for both the milspec AN/PVS-14 and the Nocturn Industries™ UANVM "TANTO" monocular. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the eye. At 28 grams total, it weighs half as much as a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

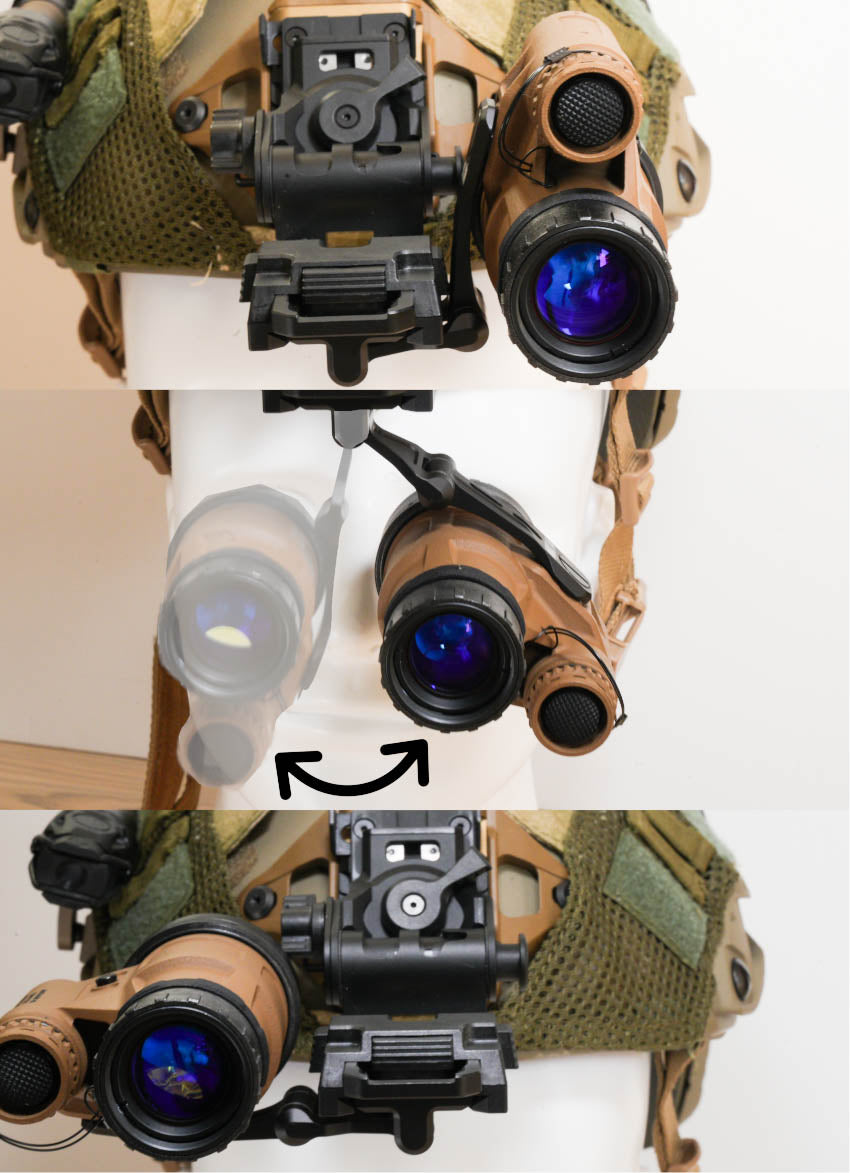

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters MAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

SPECIFICATIONS:

COMPATIBLE WITH: MILSPEC AN/PVS-14 MONOCULAR, NOCTURN INDUSTRIES UANVM "TANTO" (A SEPARATE ADAPTER IS INCLUDED IN ORDER TO FIT THIS DEVICE), PHOTONIS VYPER-14 CHASSIS FOR AN/PVS-14 MONOCULAR, AB NIGHT VISION MOD3 MONOCULAR (AUTOGAIN VERSION ONLY), KNIGHT’S ARMAMENT M-14 ALLOY CHASSIS FOR AN/PVS-14 MONOCULAR,

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 - 75mm

TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.0 OZ / 28 g

DIMENSIONS: 3.5 x 1 x 1.25"

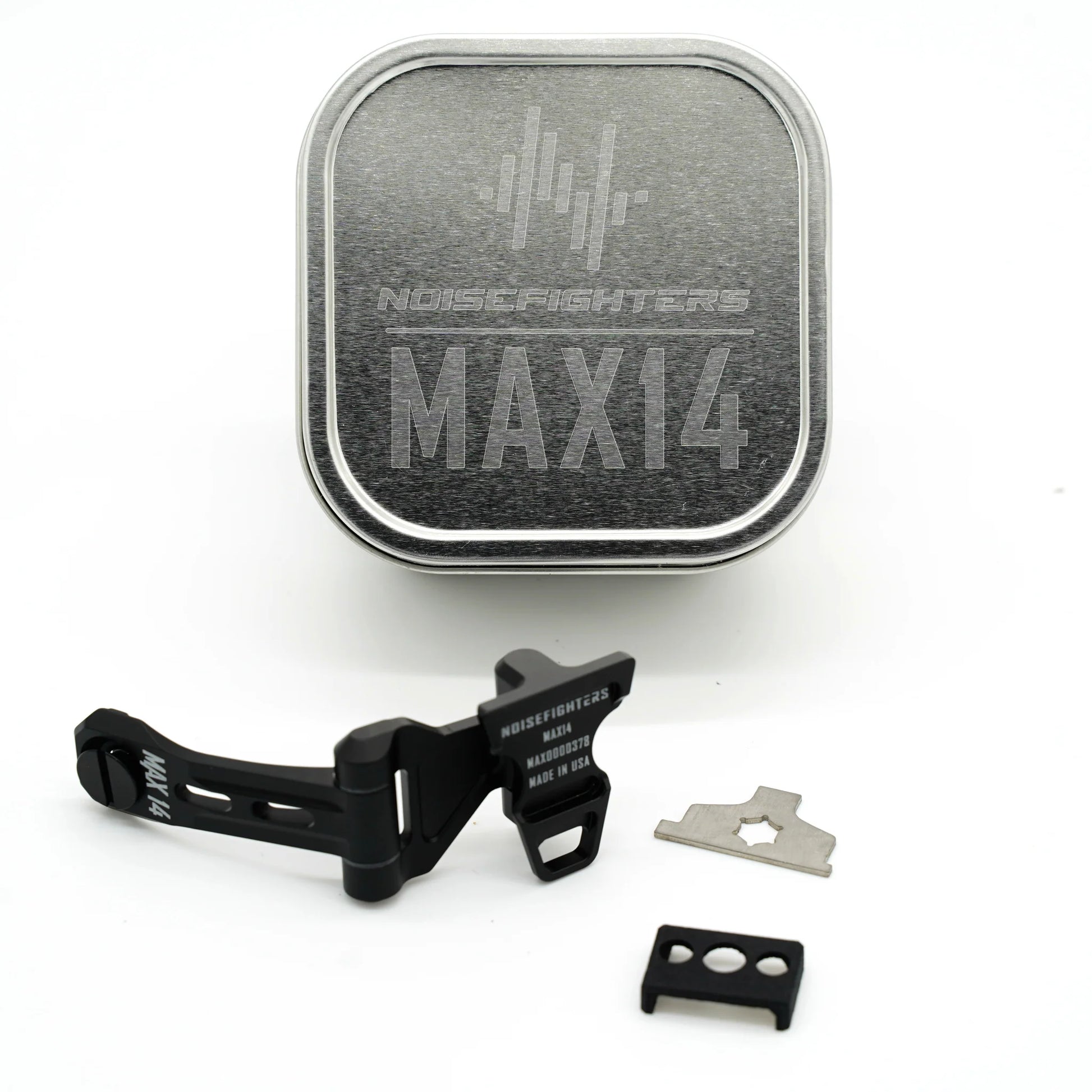

COMES WITH: ARM, UANVM "TANTO" ADAPTER, TITANIUM MULTITOOL

ESTIMATED COMBINED WEIGHT WITH A MILSPEC PVS-14 ATTACHED (L3® UNFILMED 11769 TUBE, NO BATTERY, NO EYECUP RETAINING RING, NO RUBBER EYECUP, NO DEMIST SHIELD INSTALLED): 11.9 OZ

ESTIMATED COMBINED WEIGHT WITH NOCTURN INDUSTRIES UANVM "TANTO" (PHOTONIS IMAGE INTENSIFIERS, RPO 3.0 LENSES, NO BATTERY, NO EYECUP RETAINING RING, NO RUBBER EYECUP, NO DEMIST SHIELD INSTALLED): 8.2 OZ

WARRANTY: LIFETIME, TRANSFERABLE

NIGHT VISION / THERMAL DEVICES SHOWN IN PICTURES ARE NOT INCLUDED

MADE AND ASSEMBLED IN THE U.S.A. BY A DISABLED U.S.M.C. COMBAT VETERAN OWNED COMPANY
