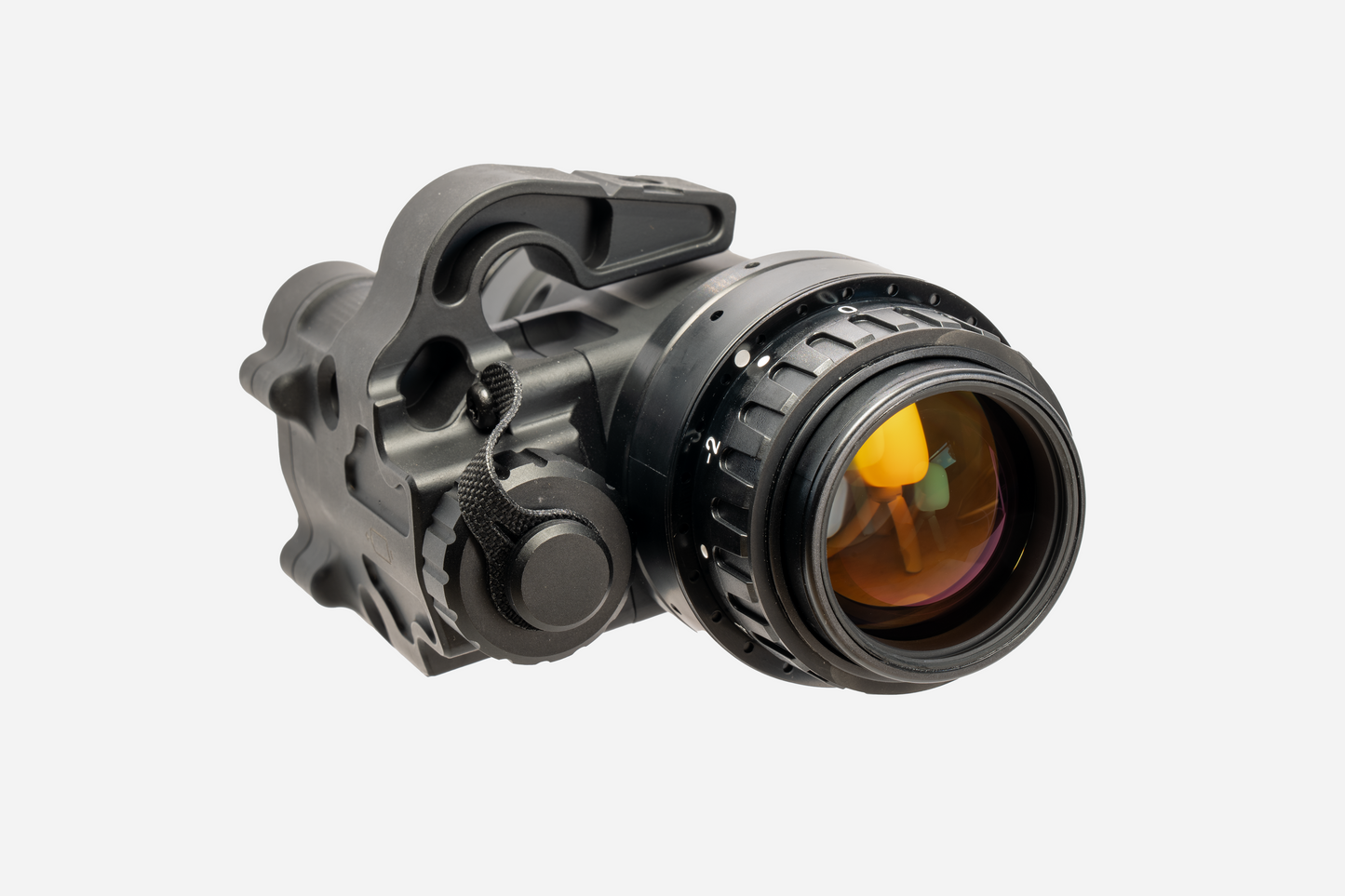

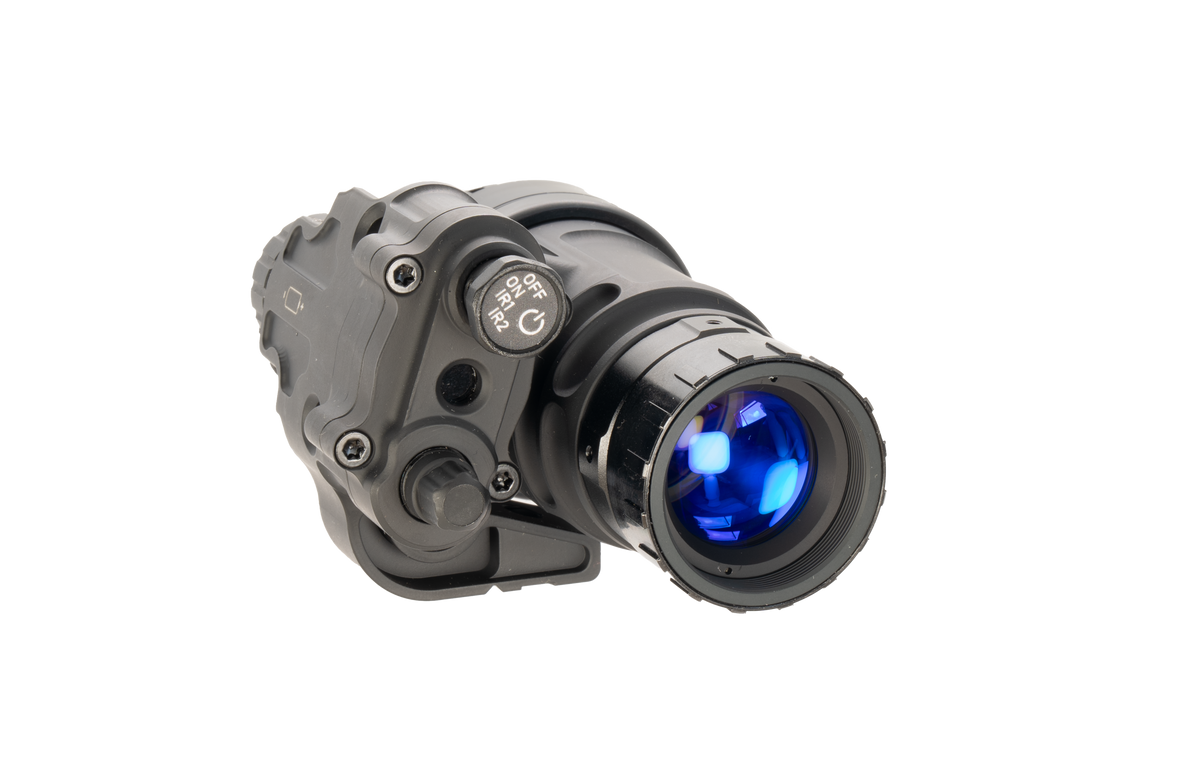

MH-14 Modular Night Vision Monocular – Lightweight Magnesium NVG
The MH-14 Modular Night Vision Monocular is the latest addition to LLI’s modular night vision lineup, engineered for users who need a rugged, lightweight, and highly adaptable night vision monocular. Built from magnesium alloy and 7075 T6 aluminum, the MH-14 offers outstanding durability while maintaining a lightweight design ideal for extended field use, tactical operations, hunting, airsoft, and professional night observation.
Designed for versatility, the MH-14 supports multiple tube formats including MX-10160, MX-11769, and modified NNVT 3-wire tubes. It is compatible with standard PVS-14 J-arm mounts, making it easy to integrate into existing helmet-mounted night vision setups. As part of the LLI modular ecosystem, the MH-14 can also be paired with the MH-1 bridge for users who want to upgrade from monocular to binocular configuration.
A major advantage of the MH-14 is its manual gain control compatibility, allowing users to fine-tune image brightness depending on tube and circuit configuration. The system also includes dual IR illuminators: a low-power mode for administrative tasks such as map reading, and a high-power spot illuminator for extended-range use in low-light environments.
Powered by a single onboard battery, the MH-14 delivers reliable runtime while keeping the system compact and efficient. Its robust construction, modular compatibility, and lightweight profile make it an excellent option for professionals and enthusiasts seeking a modern and durable PVS-14 compatible monocular.
Key Features
Lightweight modular night vision monocular
Magnesium alloy and 7075 T6 aluminum construction
Compatible with MX-10160, MX-11769, and modified NNVT 3-wire tubes
Manual gain control support depending on tube and circuit configuration
Dual IR illuminators for close work and extended-range illumination
Compatible with standard PVS-14 J-arm mounts
Part of the LLI modular ecosystem
Upgradeable to binocular configuration with MH-1 bridge
Light overload sensor included
Rugged IP67 weather-resistant construction
Dual IR Illuminator System
Low-power IR illuminator for map reading and administrative tasks
High-power spot IR illuminator for long-range illumination
Optimized for low-light and night vision applications
Compatibility
Standard PVS-14 J-arm compatible
Works with MH-1 bridge for binocular conversion
Supports MX-10160 style tubes
Supports MX-11769 style tubes
Supports NNVT 3-wire style tubes with modification
Technical Specifications
Specification
Details
Product Name
MH-14 Modular Night Vision Monocular
Material
Magnesium alloy and 7075 T6 aluminum
Device Weight
356g with standard lens, without J-arm
Ingress Rating
IP67
On-Board Power
1 × CR123 battery, approx. 40+ hours runtime
Out-Board Power
No
IR Illuminator
Dual IR illuminator
Tube Type
18mm MX-10160, MX-11769, or NNVT 3-wire style with modification
Light Overload Sensor
Yes
Flip-Up Off
No
Manual Gain
Depends on circuit board and compatible tube configuration
Ideal Applications
Helmet-mounted night vision setups
Tactical and professional low-light operations
Airsoft and night training
Hunting and wildlife observation
Expandable night vision systems with bridge compatibility
