Noise Fighter

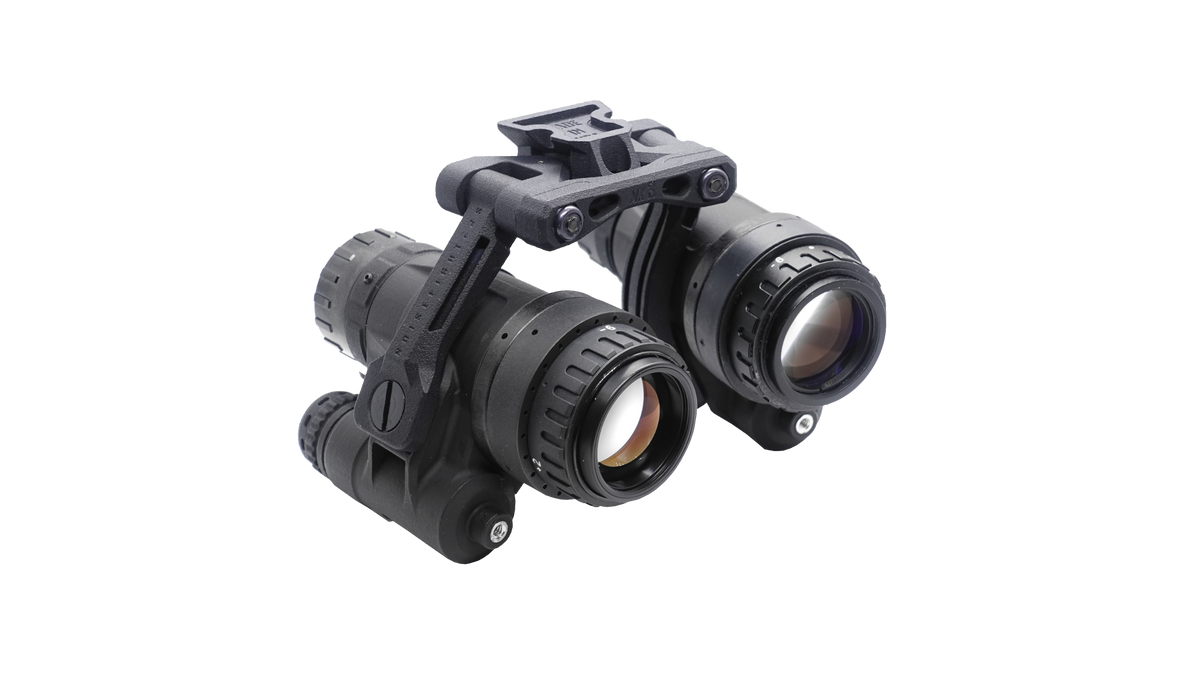

Panobridge MK3

Panobridge MK3

Regular price $719.00 NZD
Regular price $816.00 NZD Sale price $719.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

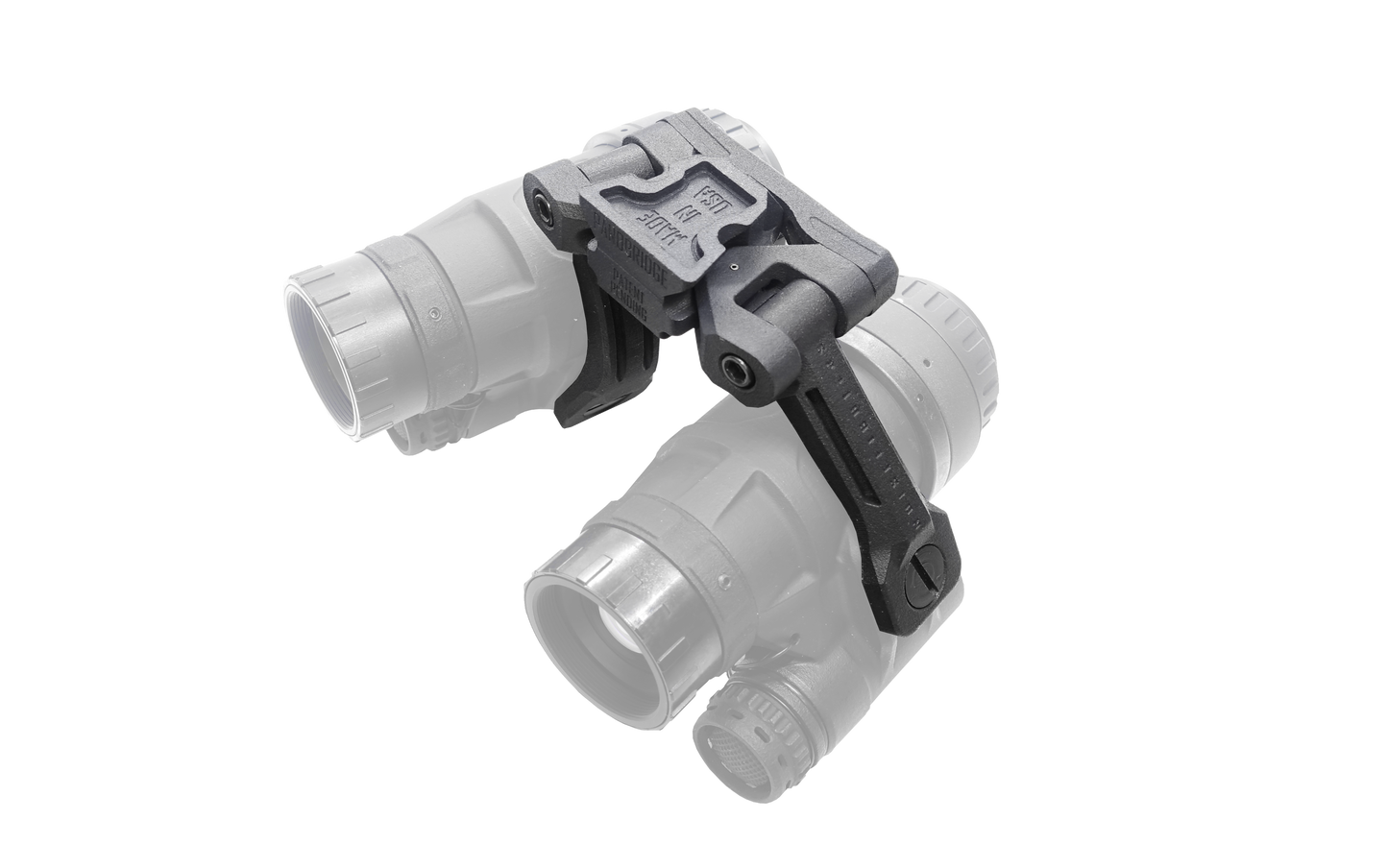

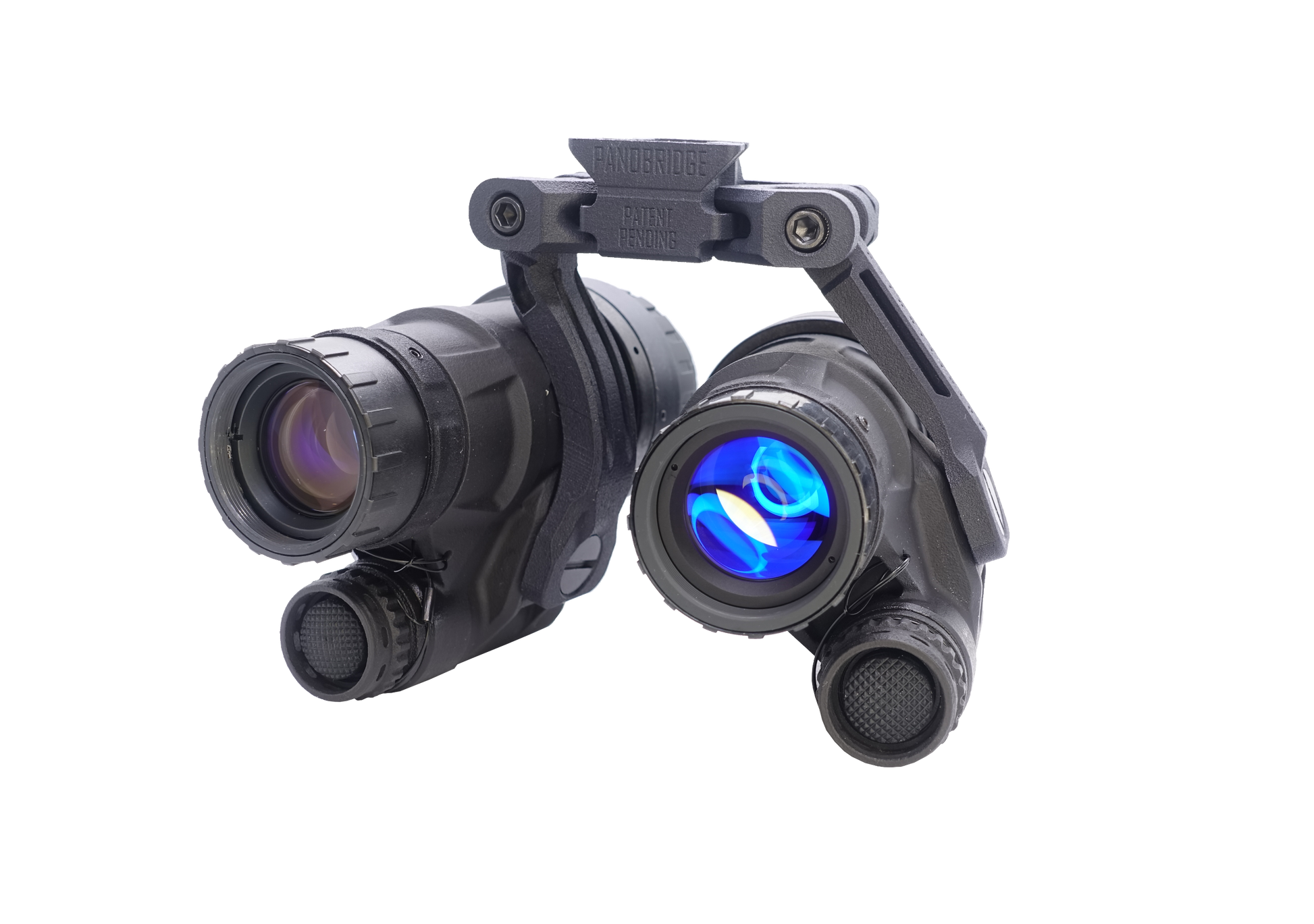

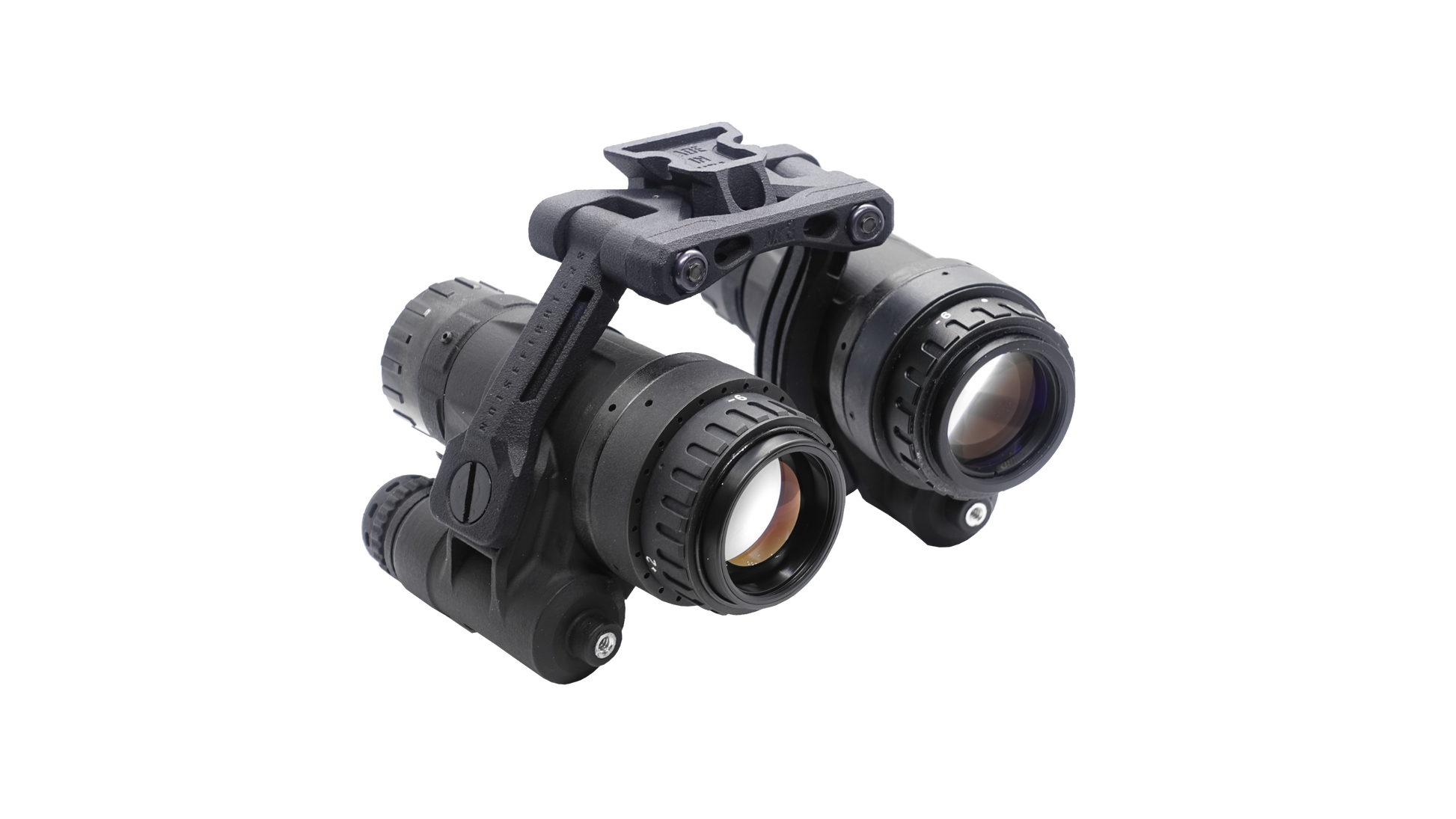

Panobridge™ is the first-ever night vision bridge mount that provides an adjustable field of view with milspec AN/PVS-14s. At an industry-leading 49g total, it weighs less than a single milspec J-Arm. Supported by a number of accessory arms and adapters, it is also fully compatible with the most popular thermal monoculars. The newest Mk3 variant introduces the PanoLok™ bar to lock the bridge at a specific panning angle and prevent devices from being bumped out of position during hard use.

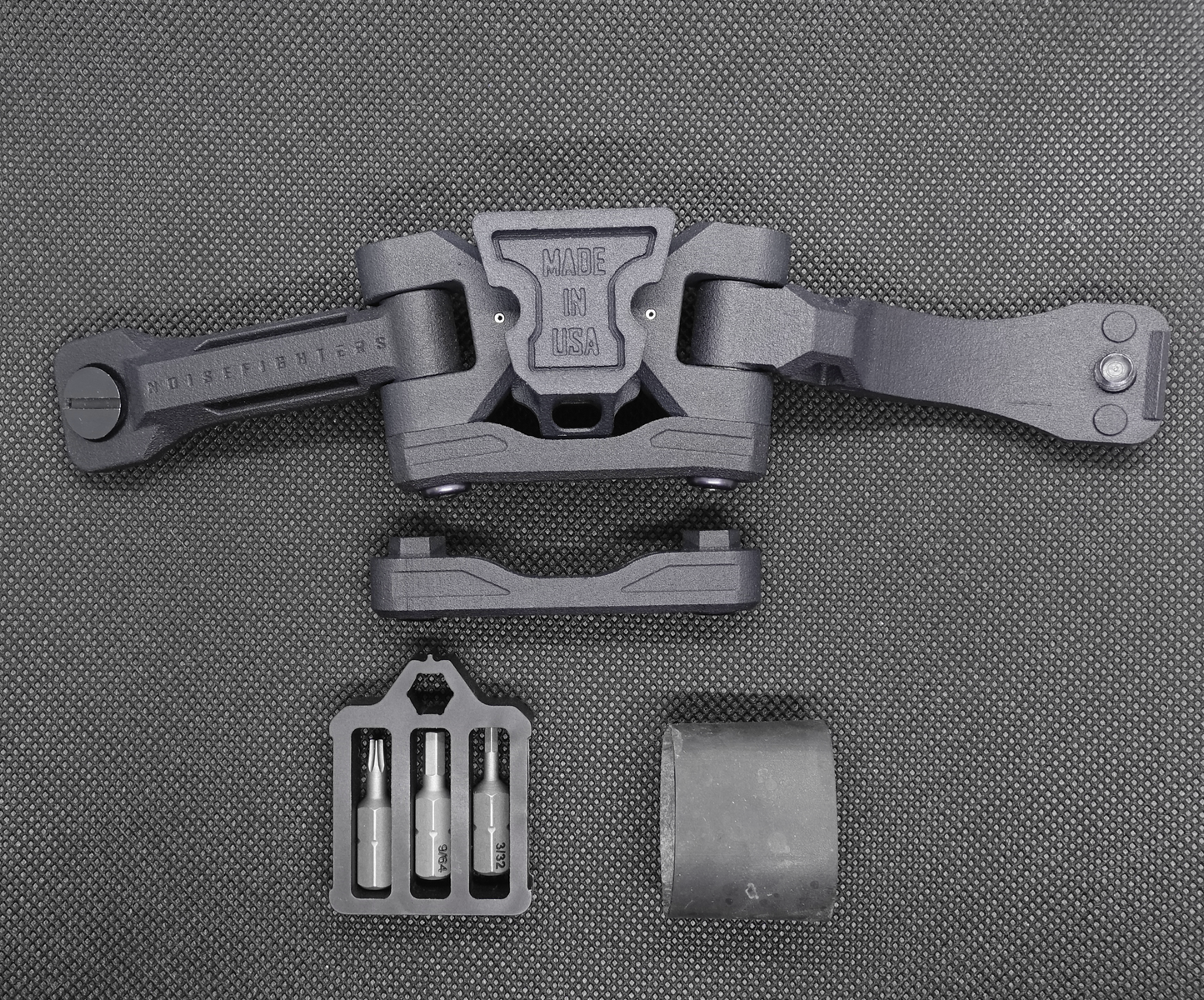

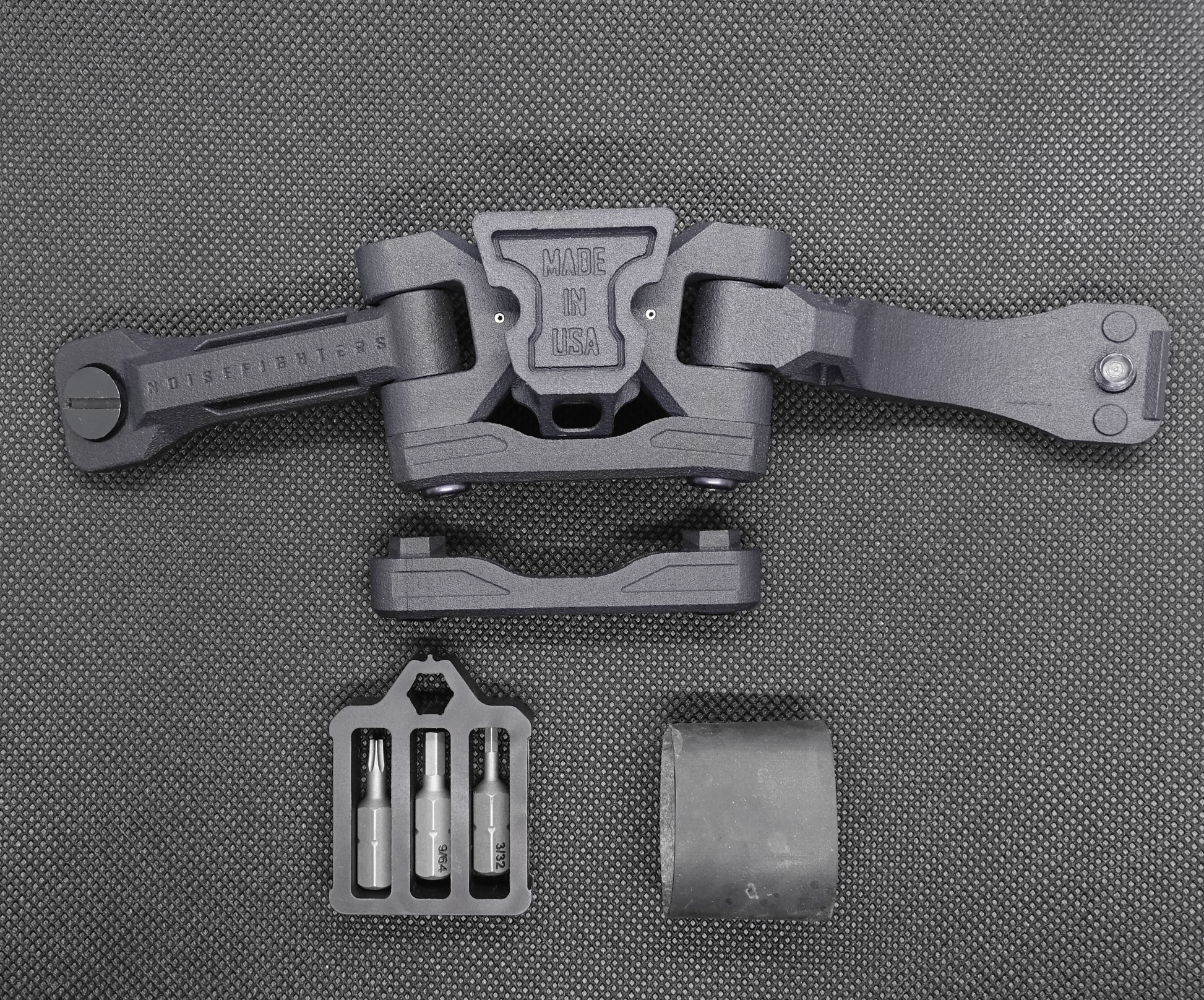

The packages includes:

Panobridge

Tools Kits

0 Degree lock bar

Warranty

Life time warranty

View full details

Adjustable Panning

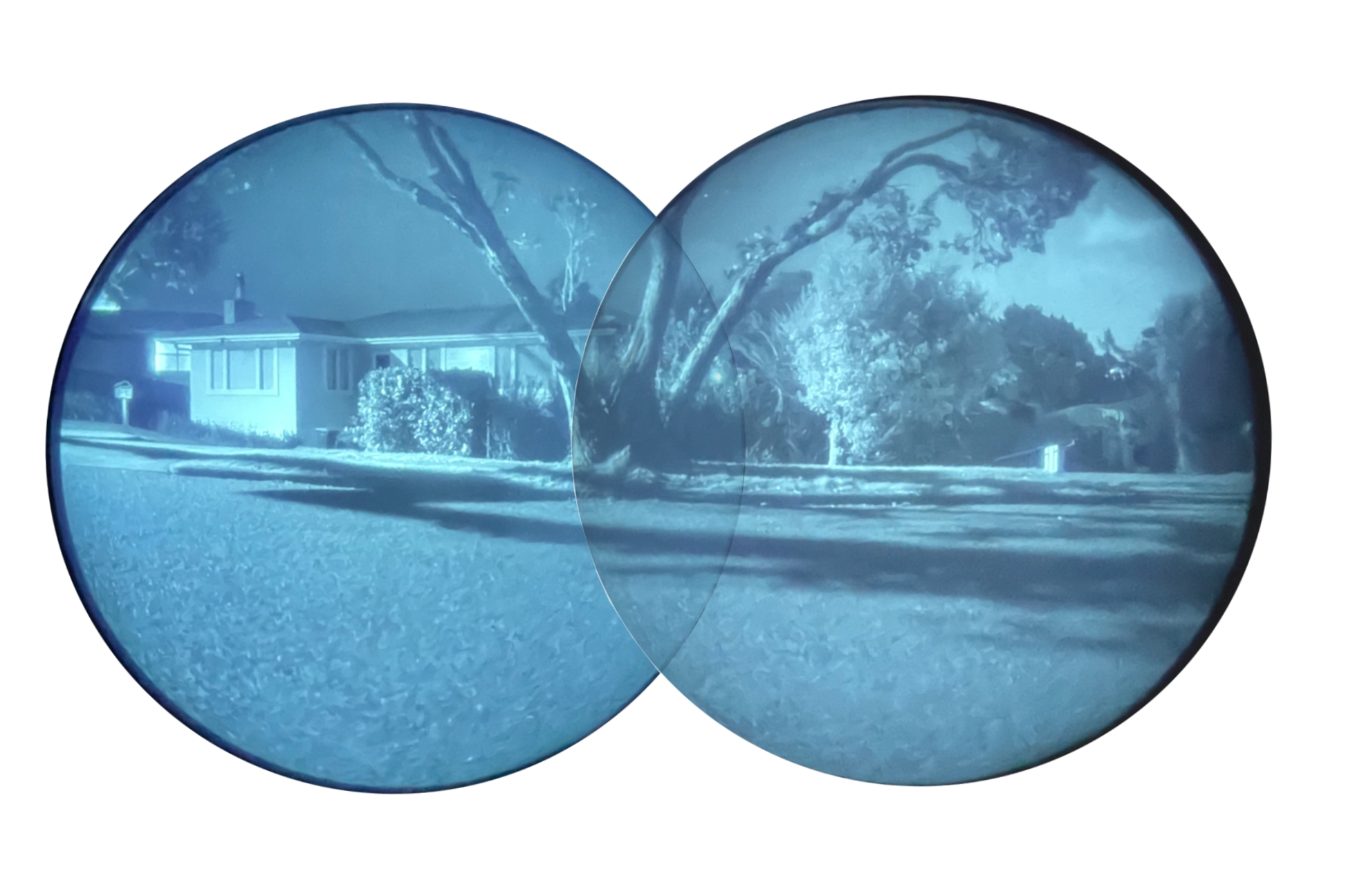

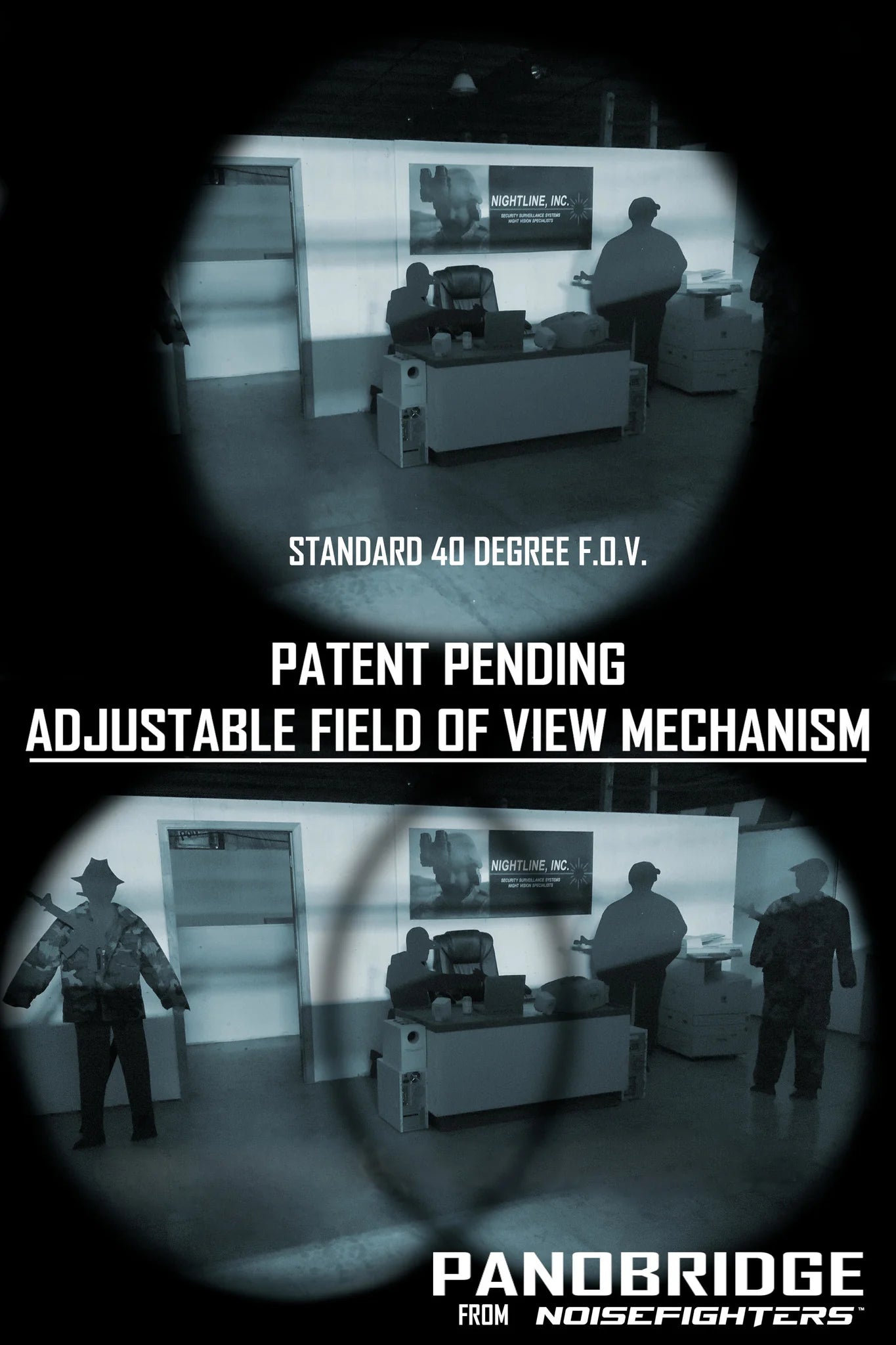

The patent pending Noisefighters Panobridge provides a panoramic night vision image by exploiting the brain's ability to merge split images from two outward-angled monoculars into one cohesive picture. The so-called tube effect that is traditionally experienced with single or dual intensifiers is eliminated. With our innovative AFOV (Adjustable Field of View) mechanism and resulting wide-view image, you can enjoy vastly improved situational awareness and the feeling like you're not even looking through image intensifying tubes. Whether it's driving a vehicle and seeing through nearly the entire windshield or clearing a building and not missing an unexpected visitor coming down the stairs in your periphery, the Noisefighters Panobridge will open up new possibilities for efficient and safe work at night, allowing you to focus more on the task at hand and less on panning and scanning for threats or points of interest.

Locking Bar

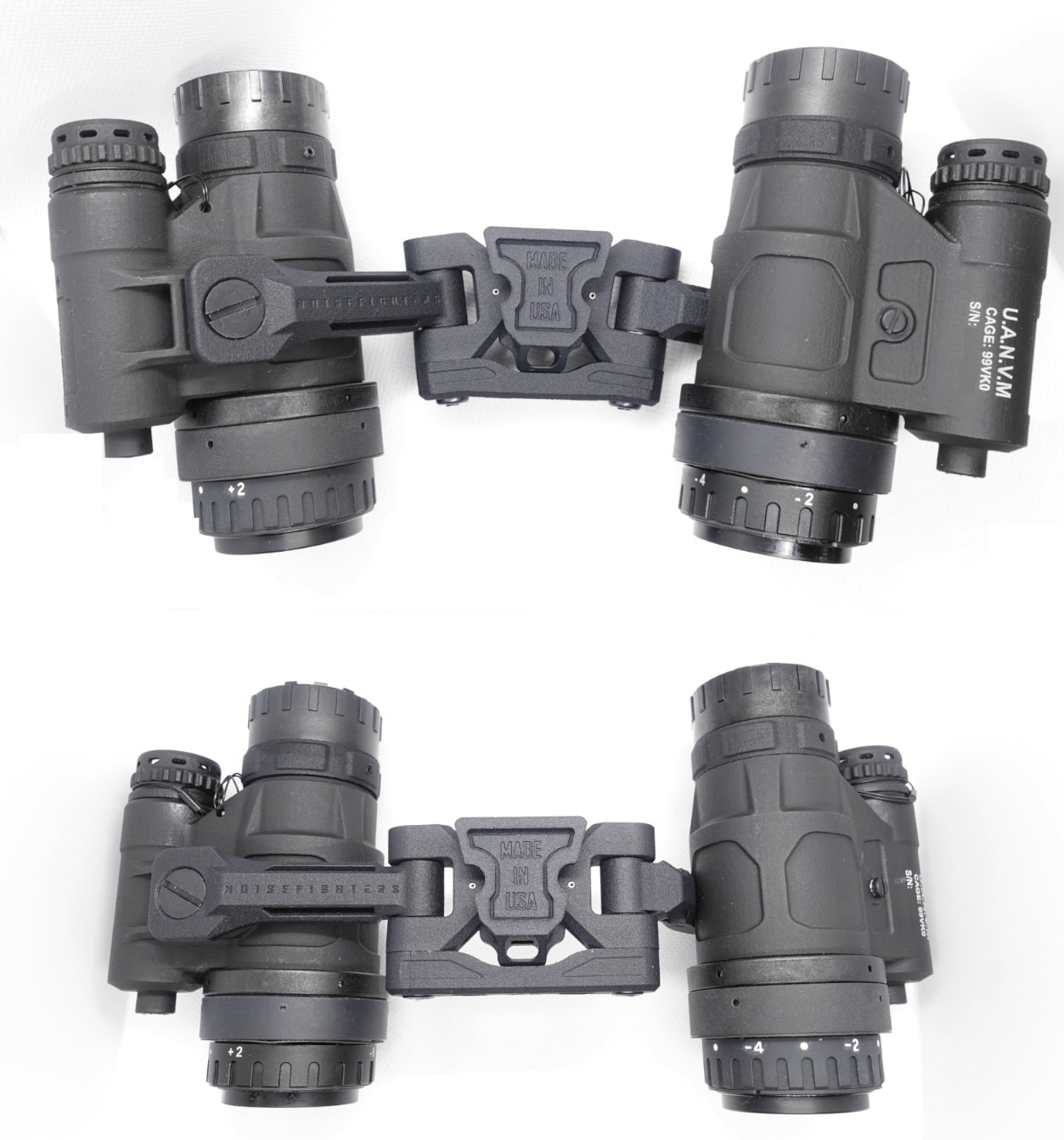

A locking bar is added to Mk3 to ensure it locks in the right angle during harsh usage. Importantly, users can switch back to traditional straight-ahead tube orientation when desired by quickly swapping out the 7.5 degree angled PanoLok bar to the straight, 0 degree angled PanoLok bar. No specialized training is required and no other equipment is necessary. Simply attach two standard AN/PVS-14 monoculars to this featherweight bridge using the tools included in the package.

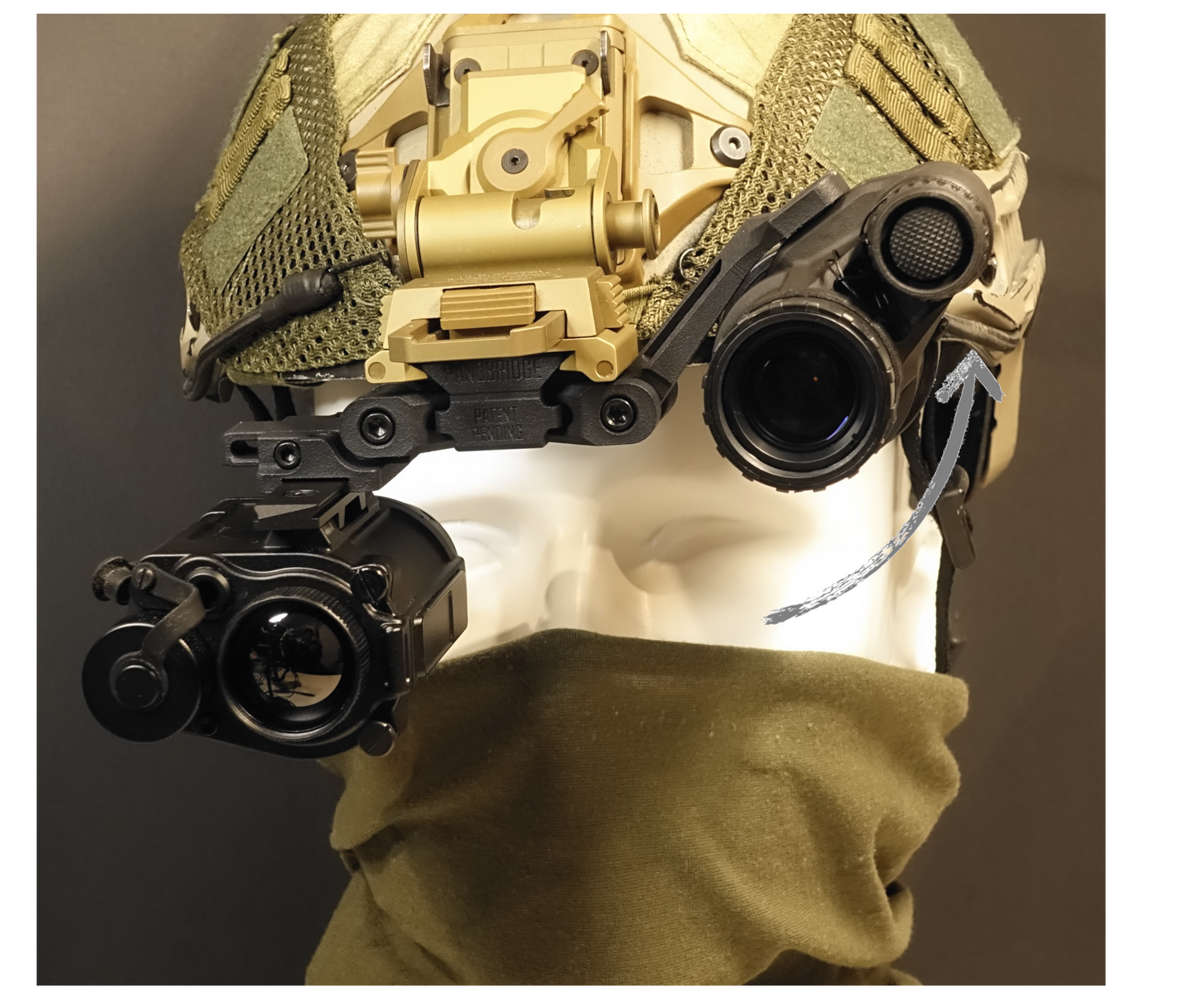

Articulation

Like most Articulated Binoculars. The Pano-birdge also have articulation feature. Allowing the users to row up one side of the monocular quickly.

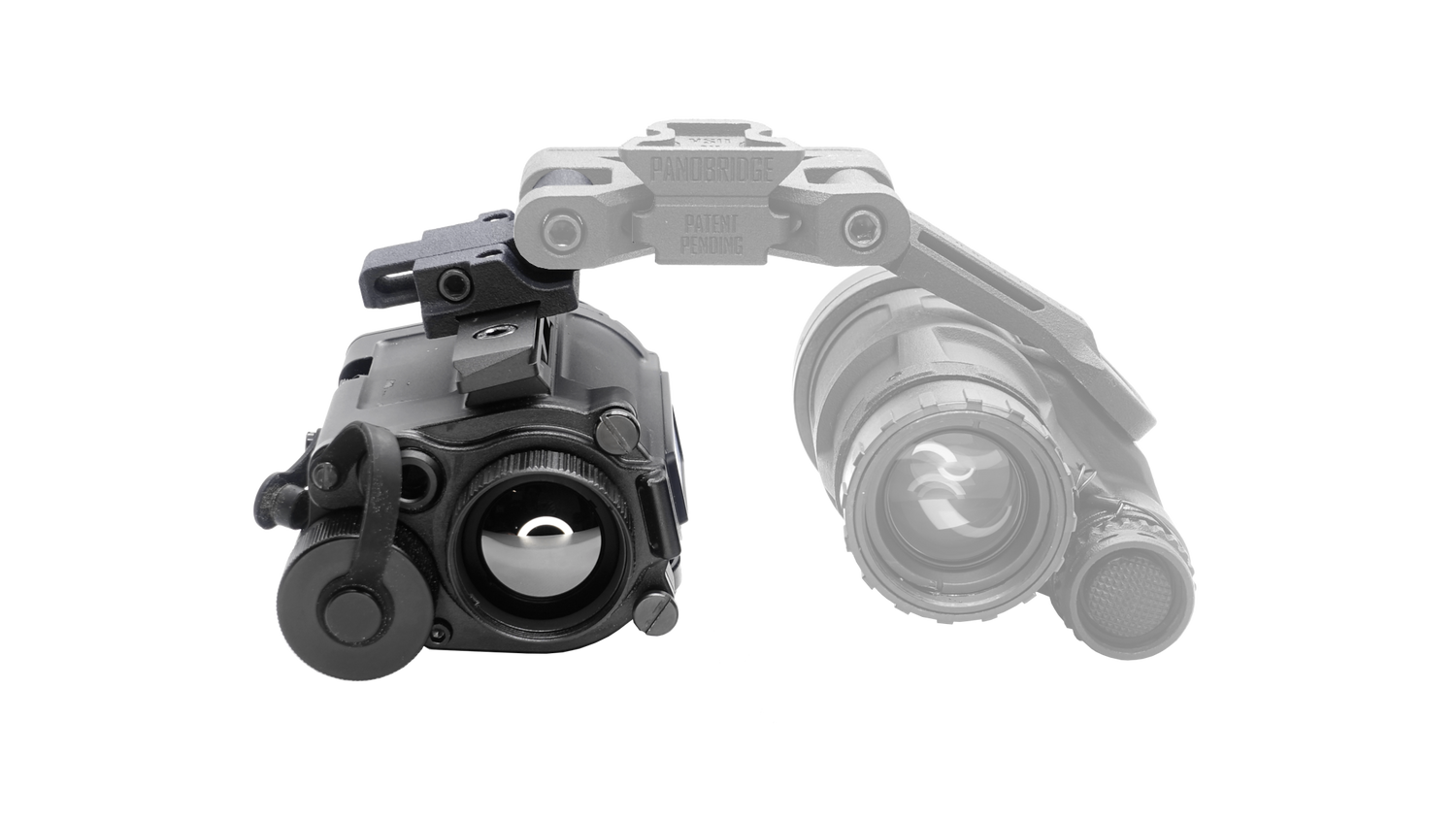

Thermal Capable

An extra mini rail can be added to interchanged with the J-arm on the bridge. This enables you to mount thermal devices that utilize a mini-rail system, as well as other night vision devices like the MUM14 and NVM14. When pairing when thermals, a 0 degree locking bar can be used to set the bridge back into a parallels position.

Mini Rail

Specification

Bridge Weight: 49g

Weight with dual Tanto (Carson lens): 537g

Weight with dual Tanto (RPO light weight lens): 457g

Weight with dual Pvs-14 (Carson lens): 769g

Weight Tanto (Caron lens) + Pfalcon640: 648g
