Noise Fighter

AX14-PRO

AX14-PRO

$267.05 NZD
$194.00 NZD $267.05 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

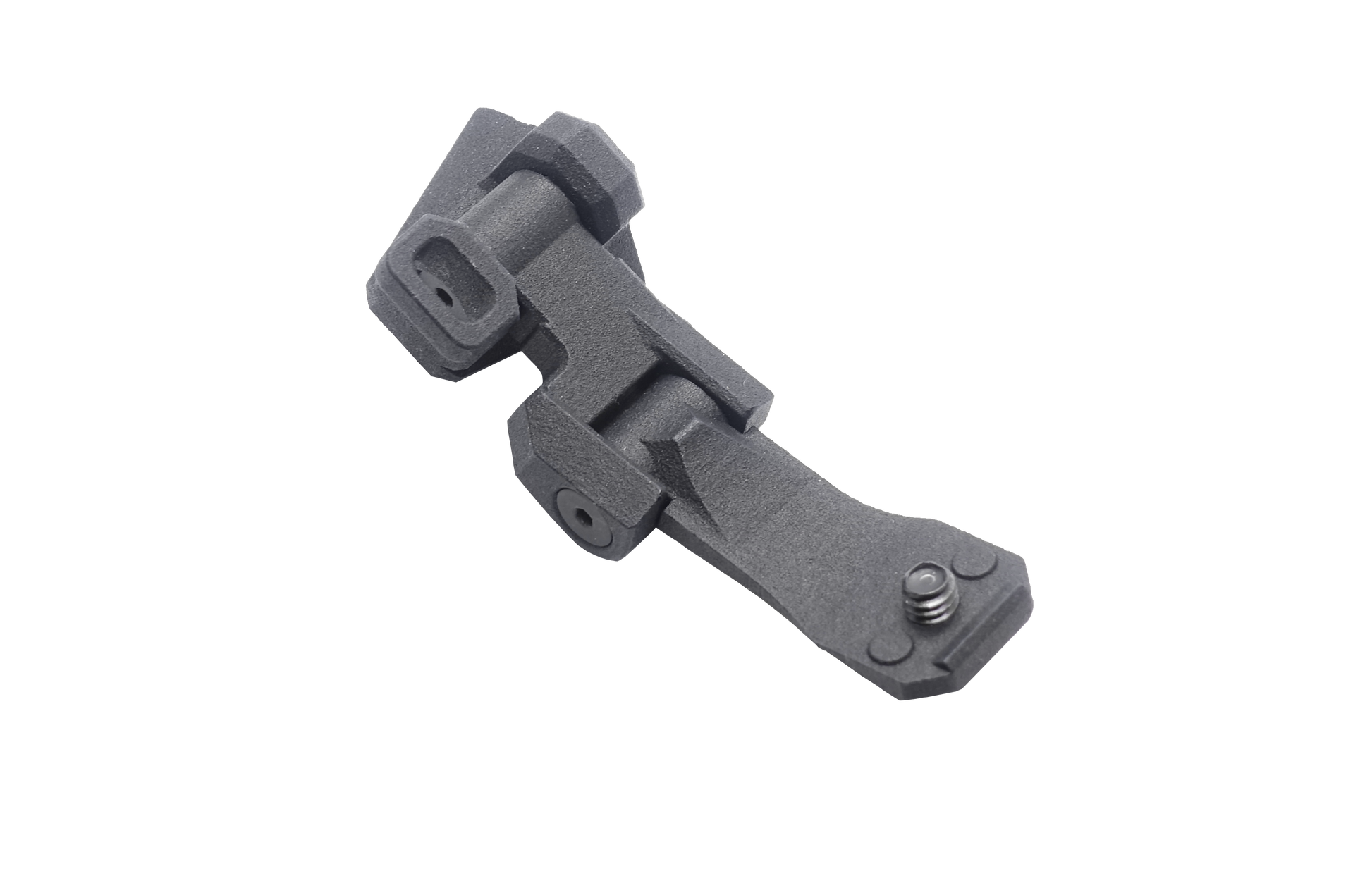

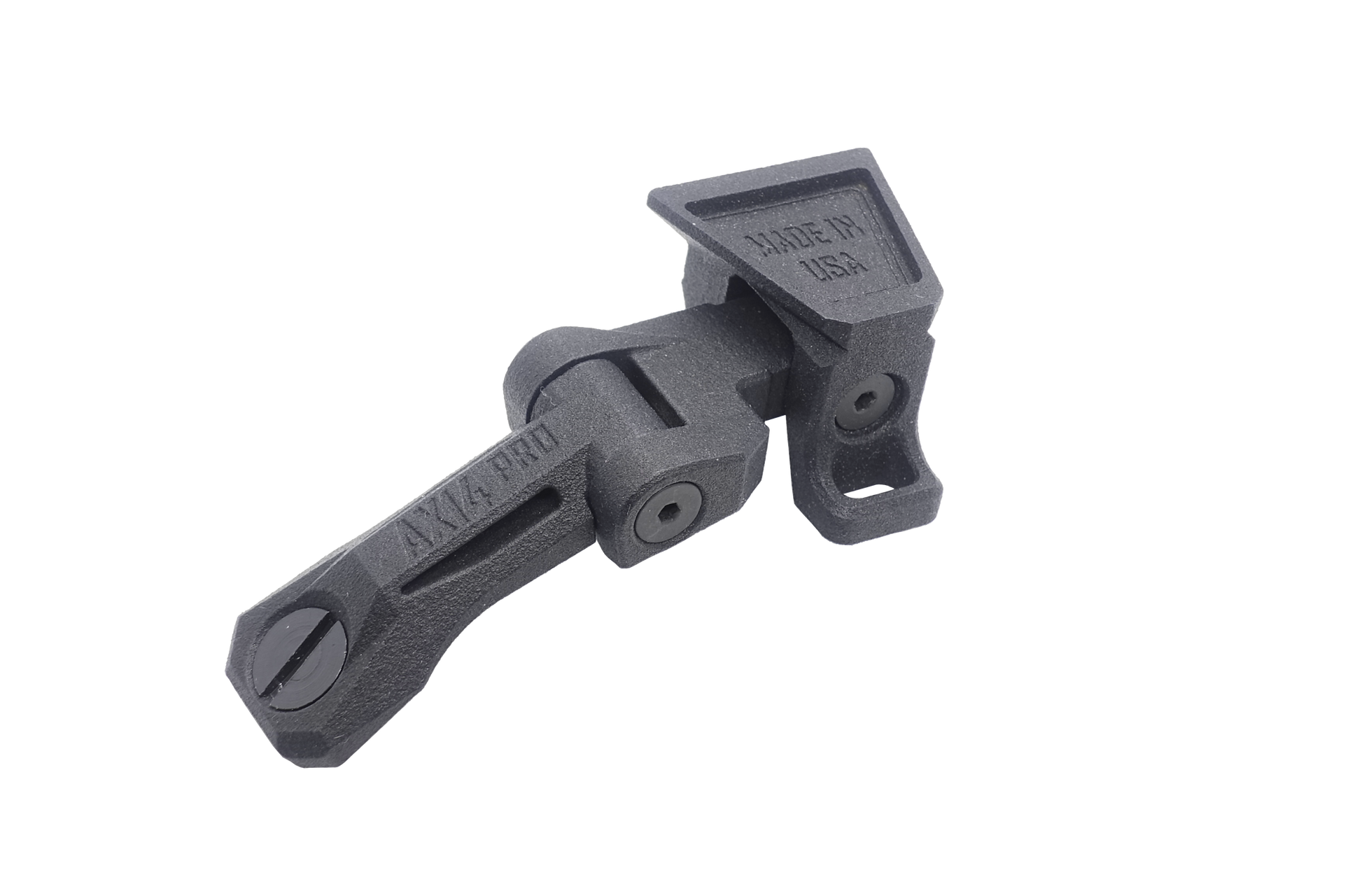

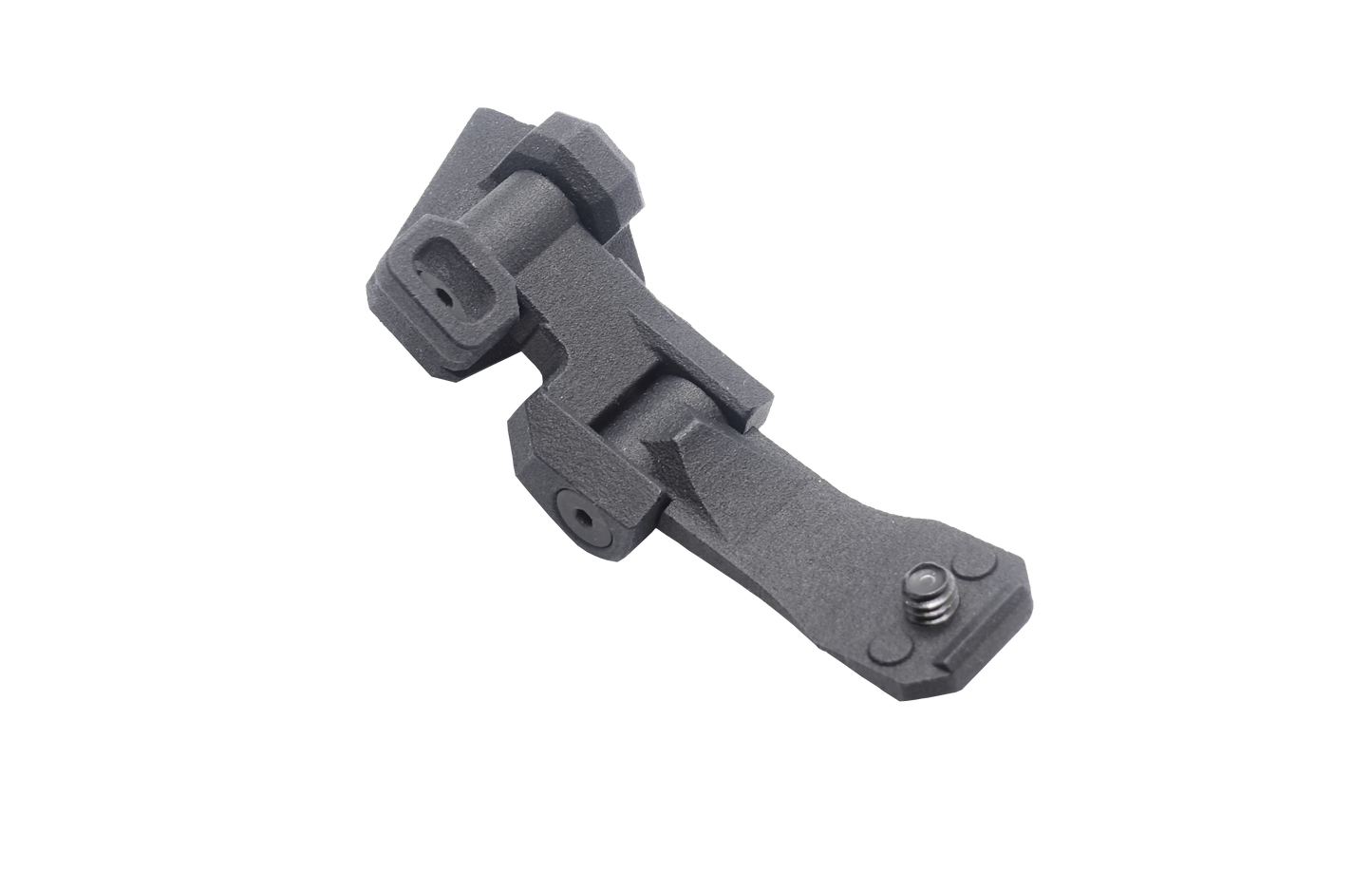

AX14-PRO Dovetail Arm for AN/PVS-14 Monocular

The AX14-PRO is a lightweight mounting arm designed for AN/PVS-14 monocular devices and similar systems. The design provides increased rigidity while weighing significantly less than traditional milspec J-Arms.

The integrated rotating knuckle allows the monocular to swing away from the eye and stow tightly against the helmet when not in use. A slight rearward sweep positions the eyepiece closer to the eye and improves compatibility with larger helmets.

Key Features

  • Compatible with AN/PVS-14 monocular devices
  • Lightweight design at 0.9 oz / 26 g
  • Rotating knuckle for stow and swing-away function
  • Rearward swept arm design for improved positioning
  • Multiple anti-rotation features for stability
  • Reinforced joints with stainless steel washers
  • Maritime rated hardware
  • Tether attachment point
  • Lifetime warranty
  • Made and assembled in USA

Construction

  • High performance polymer from Arkema®
  • Mil spec anodized aluminum hardware
  • 316 stainless steel components
  • Impact resistant structure
  • Corrosion resistant materials

Compatibility

  • AN/PVS-14 monocular
  • Photonis Vyper-14 chassis
  • AB Night Vision MOD3 monocular (autogain version)
  • Knight’s Armament M-14 alloy chassis

Helmet Mount Compatibility

  • Dovetail style helmet mounts required
  • Not compatible with bayonet style mounts

Technical Specifications

Specification Details
Weight 0.9 oz / 26 g
IPD Compatibility 55 - 75 mm
Material Arkema high performance polymer
Hardware 316 stainless steel, anodized aluminum
Finish Black
Dimensions 3.5 x 1 x 1.25 inches

Important Notes

  • Requires dovetail style helmet mount
  • No auto shutoff function integrated
  • Joint tension may vary in extreme temperatures

Warranty

Life time warranty

View full details

Ergonomics

The legacy J-arms that have been issued to the military are often lacking in ergonomics, are heavy, and offer limited adjustability. However, the friction lock design developed by Noise Fighter effectively addresses these concerns. This design allows users to effortlessly swing the J-arm 180 degrees and securely lock it into four positions: transitioning from the right eye to the left eye, or stowing it on either the right or left side, all achievable with a single hand and rapid action.

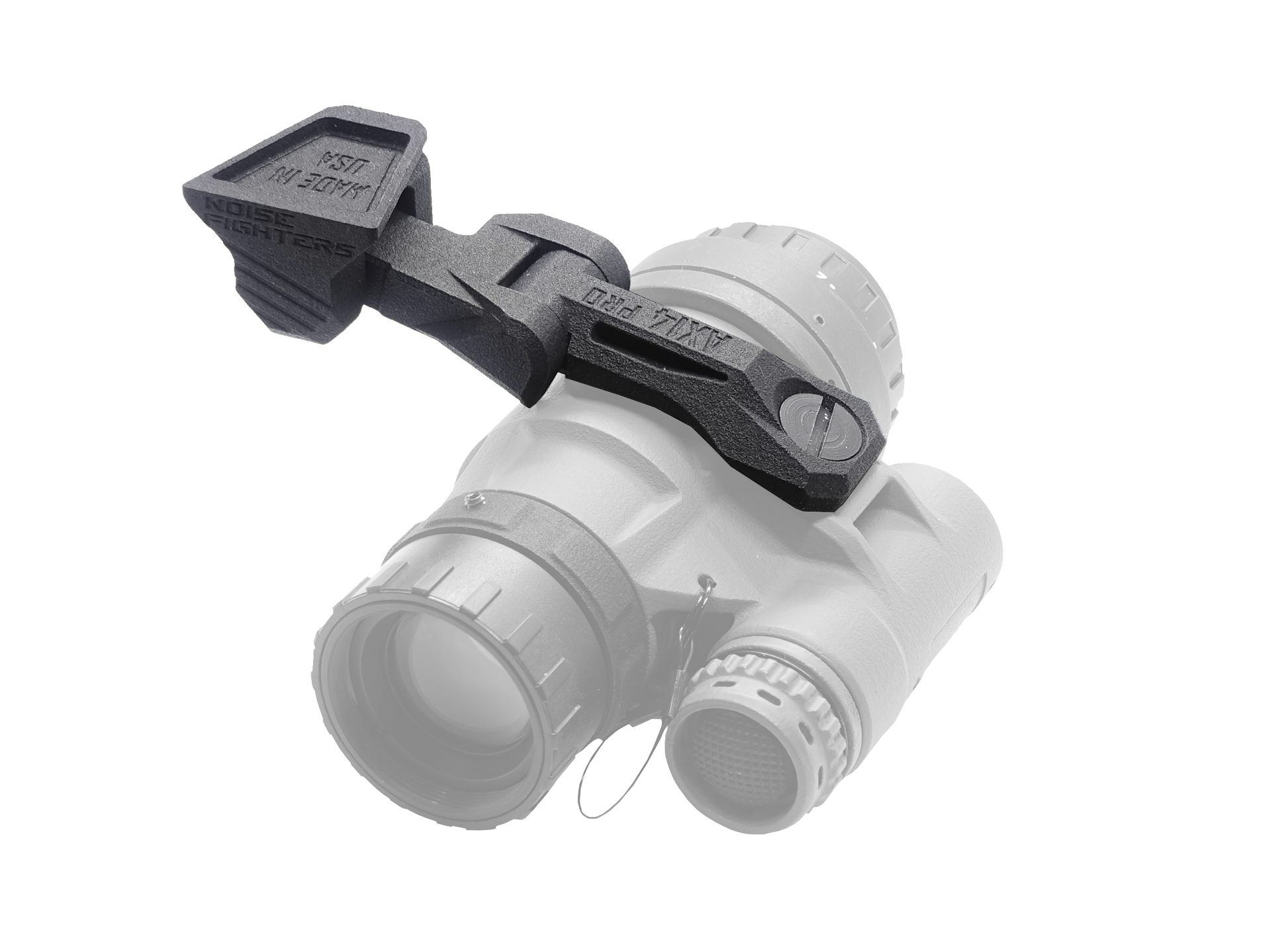

  • The Noisefighters AX14-PRO™ is a lightweight night vision monocular mounting arm for the PVS-14 and similar devices, produced with cutting edge manufacturing and material technologies. The AX14-PRO weighs only 0.9 oz / 26 g total, or approximately 52% less than a milspec J-Arm, yet it is significantly more rigid due to the unique design. Just attach a monocular, snap the complete assembly into an industry-standard dovetail helmet mount, and enjoy. An intuitive, friction-based mechanism allows users to swing the PVS-14 monocular in front of either the left or right eye and perfectly adjust for interpupillary distance.
  • The AX14-PRO is the successor to our original X14-Arm and includes a new, desirable feature: a knuckle is integrated into the arm which allows the entire monocular to both swing away from the eye temporarily and, when not in use, tightly stow against the helmet, significantly lessening the chance for damage during movement under doorways or out of vehicles. This knuckle is supplemented with metal washers for smooth and consistent movements. To be clear, the articulating knuckle permits full range of motion and tight stowing on both the left and right side.
  • The mechanism is pretensioned at the factory and should never need to be adjusted, but a simple hex key wrench may be used for adjustment as necessary.
  • A slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets.
  • Multiple anti-rotation features prevent the monocular from rotating and loosening with vibrations.
  • The choice of a high performance polymer from Arkema® produces a nearly indestructible monocular mount. The highly impact-resistant material chosen for the AX14-PRO should absorb shocks and bounce back into shape instead of fracturing when dropped, bent, or otherwise stressed.
  • All hardware is made of genuine, passivated 316 stainless steel and mil spec anodized aluminum for the ultimate in salt water corrosion resistance. The AX14-PRO is truly maritime rated.
  • A tether (or dummy cord) attachment point is featured on the rear of the AX14-PRO to keep the entire system secure.
  • A no-questions-asked, transferable lifetime warranty is included. The Noisefighters AX14-PRO is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.
