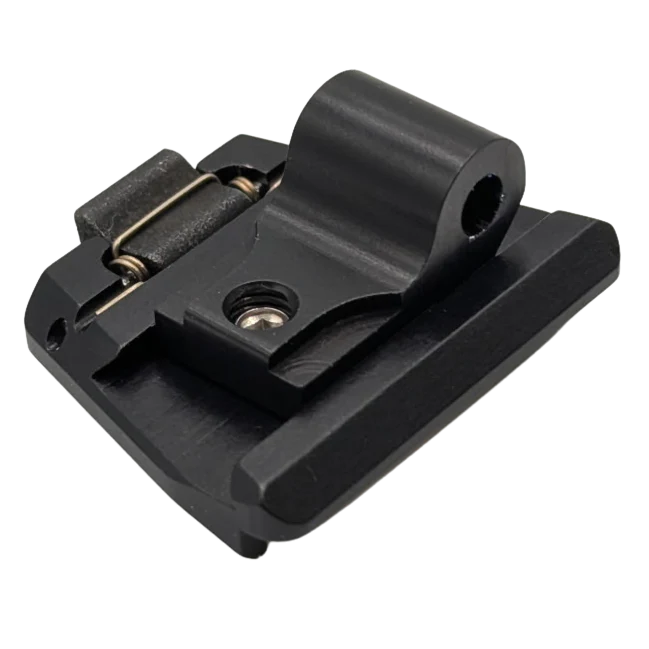

Dovetail Adapter for Panobridge M1

Quick Detach Female Dovetail Adapter for Panobridge M1, M-Zero, and M-Seven

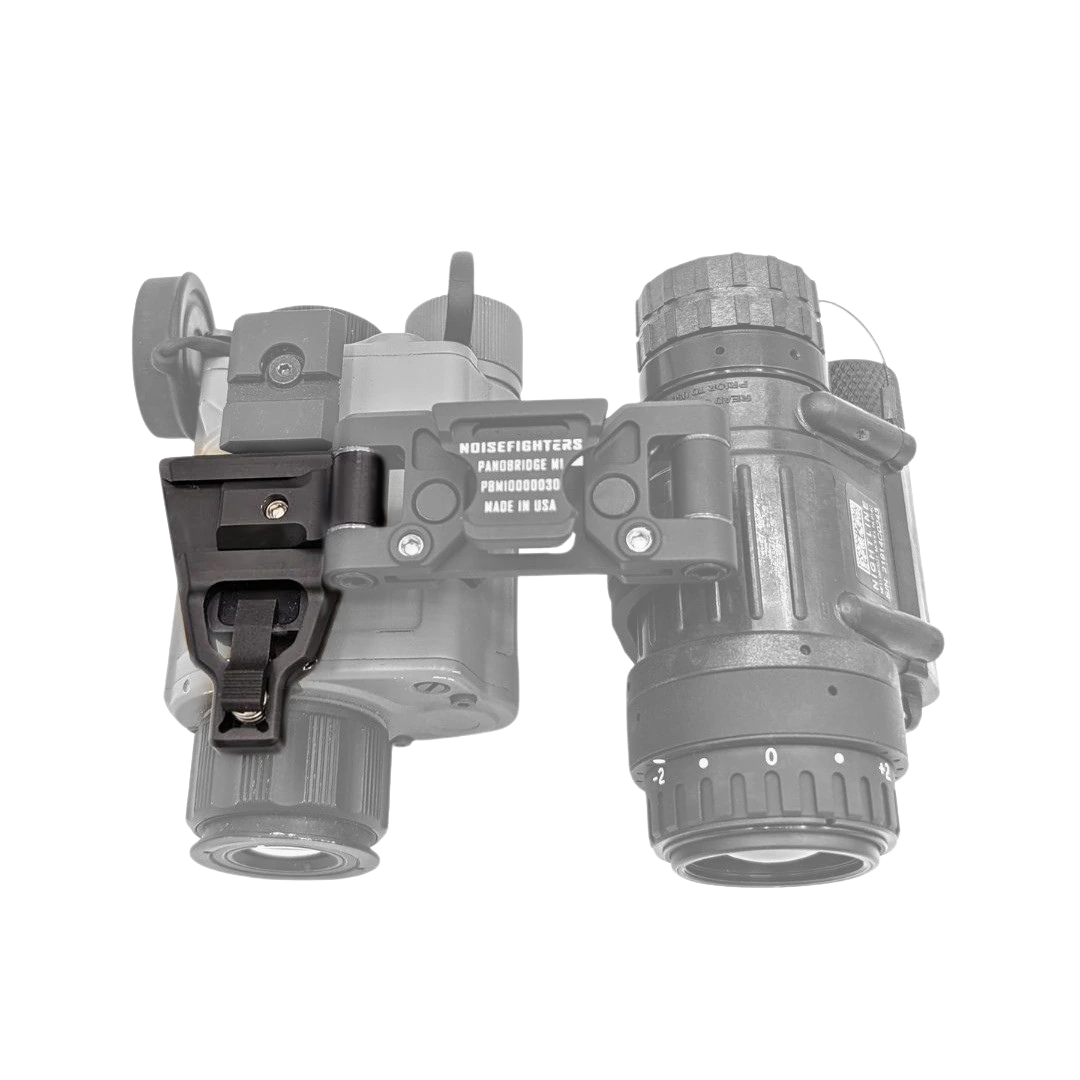

This Quick Detach Female Dovetail Adapter is designed for the Panobridge M1, M-Zero, and M-Seven. It allows fast attachment and removal of compatible thermal and imaging monoculars using a lever-actuated locking mechanism.

It is designed to align an AN/PVS-14 eyepiece with the Infiray RH25 when using the pictail adapter. It also works with AGM StingIR and N-Vision NOX18 when those devices are equipped with a compatible male dovetail.

Key Features

• Quick detach design
• Compatible with Panobridge M1, M-Zero, and M-Seven
• Not side specific
• Infinitely adjustable interpupillary distance
• Full arm rotation for compact stowage
• Optimized for use with Wilcox G24 helmet mount

Mod 1 Product Update

• Smaller and lighter design
• More rigid construction
• Latch redesigned to reduce inadvertent actuation
• Stainless steel latch material
• Custom torsion spring for increased latch retention
• Removable aluminum shim for out-of-spec male dovetails
• Shortened and lightened IPD slider
• Captivated 10-32 screw

Technical Specifications

Compatible Devices

• Infiray RH25 with AC52 pictail or compatible fore-aft adjustable dovetail adapter
• N-Vision Optics NOX18
• AGM StingIR with compatible fore-aft adjustable dovetail adapter
• Trijicon SkeetIR when bridged with another monocular using a compatible dovetail adapter system
• EOTech MonoNV

Important Notes

• Night vision and thermal devices shown in photos are not included
• Made and assembled in the U.S.A.
• Built by a disabled U.S.M.C. combat veteran-owned company
• Subject to Export Administration Regulations (E.A.R.) and may only be exported to certain countries and customers
