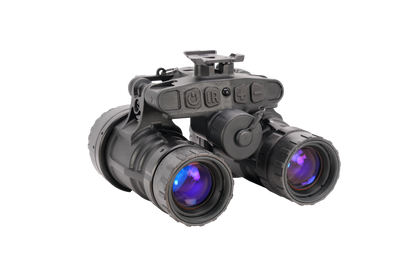

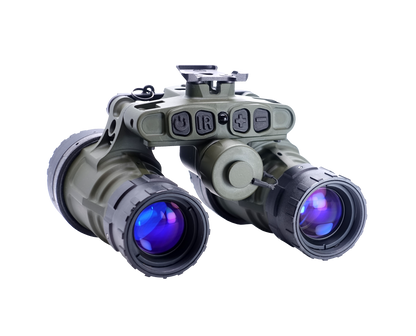

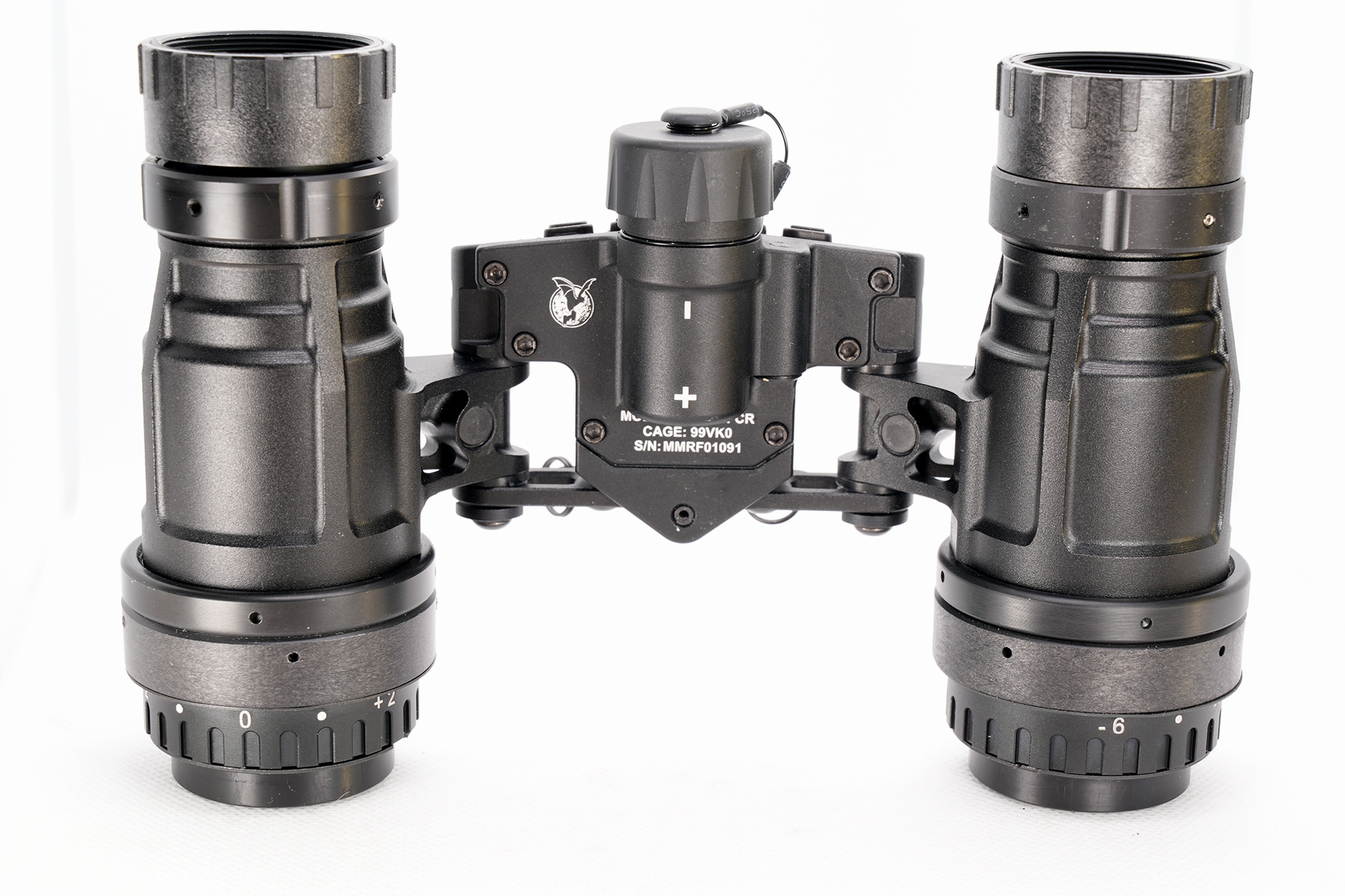

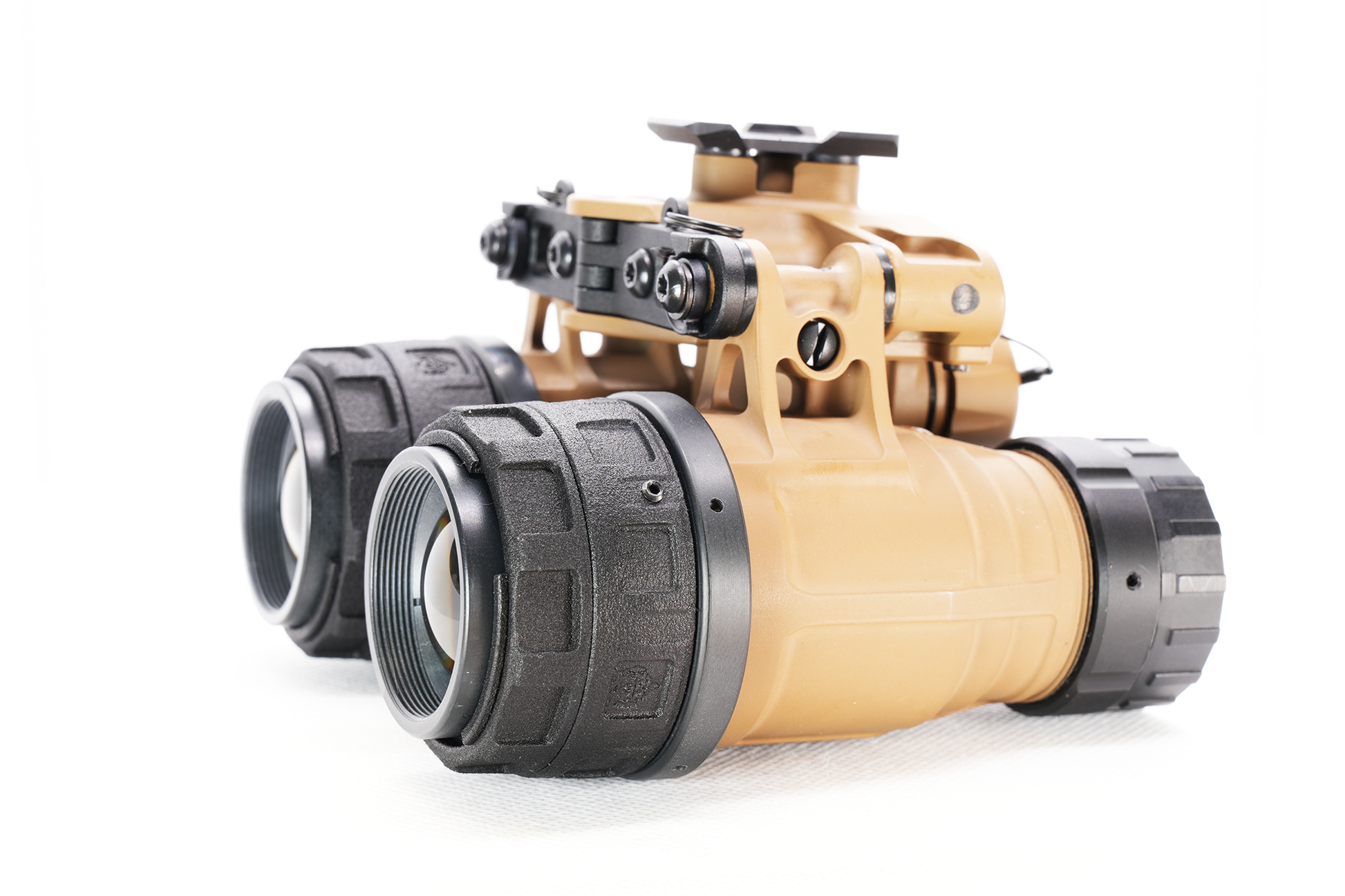

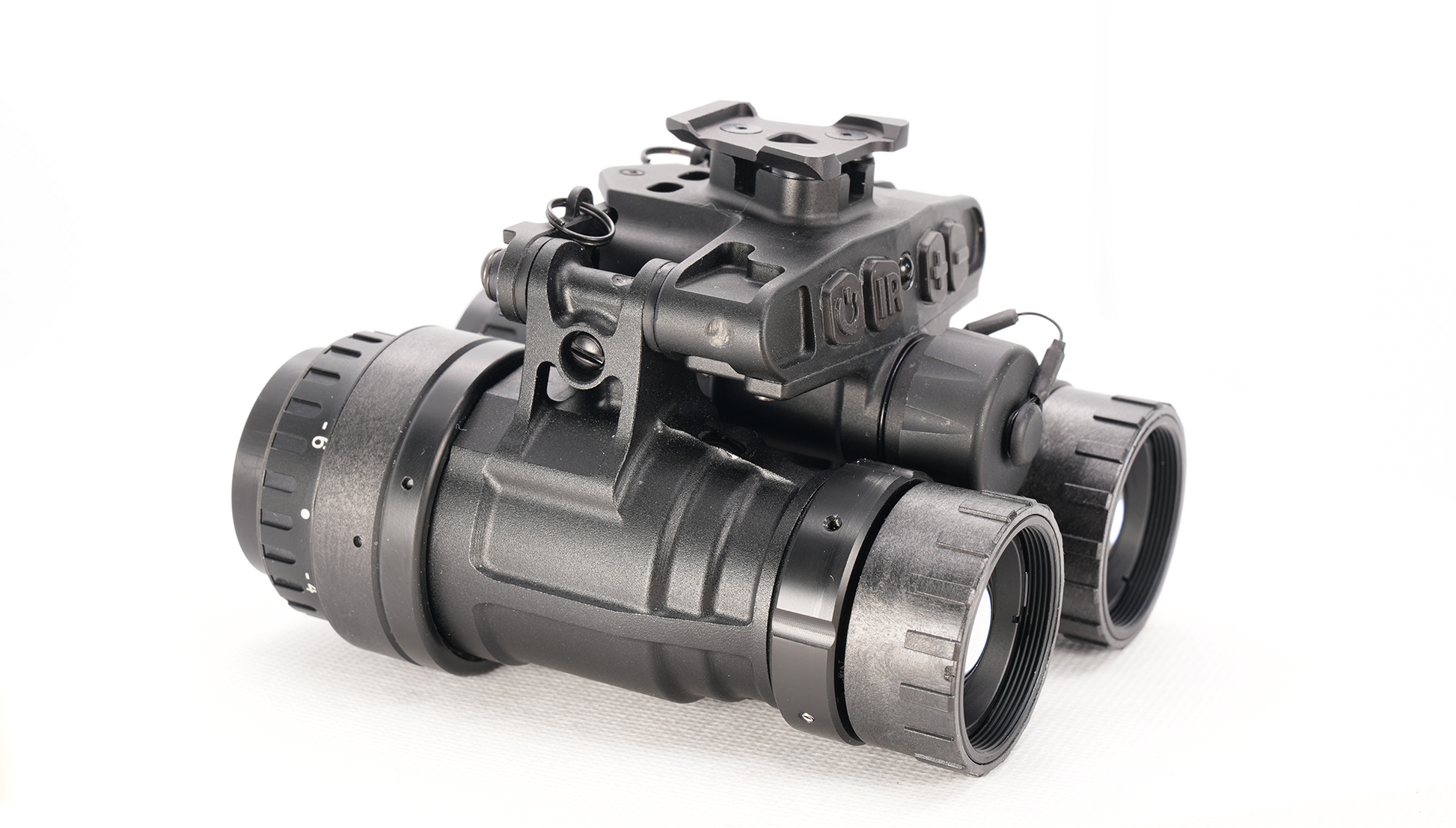

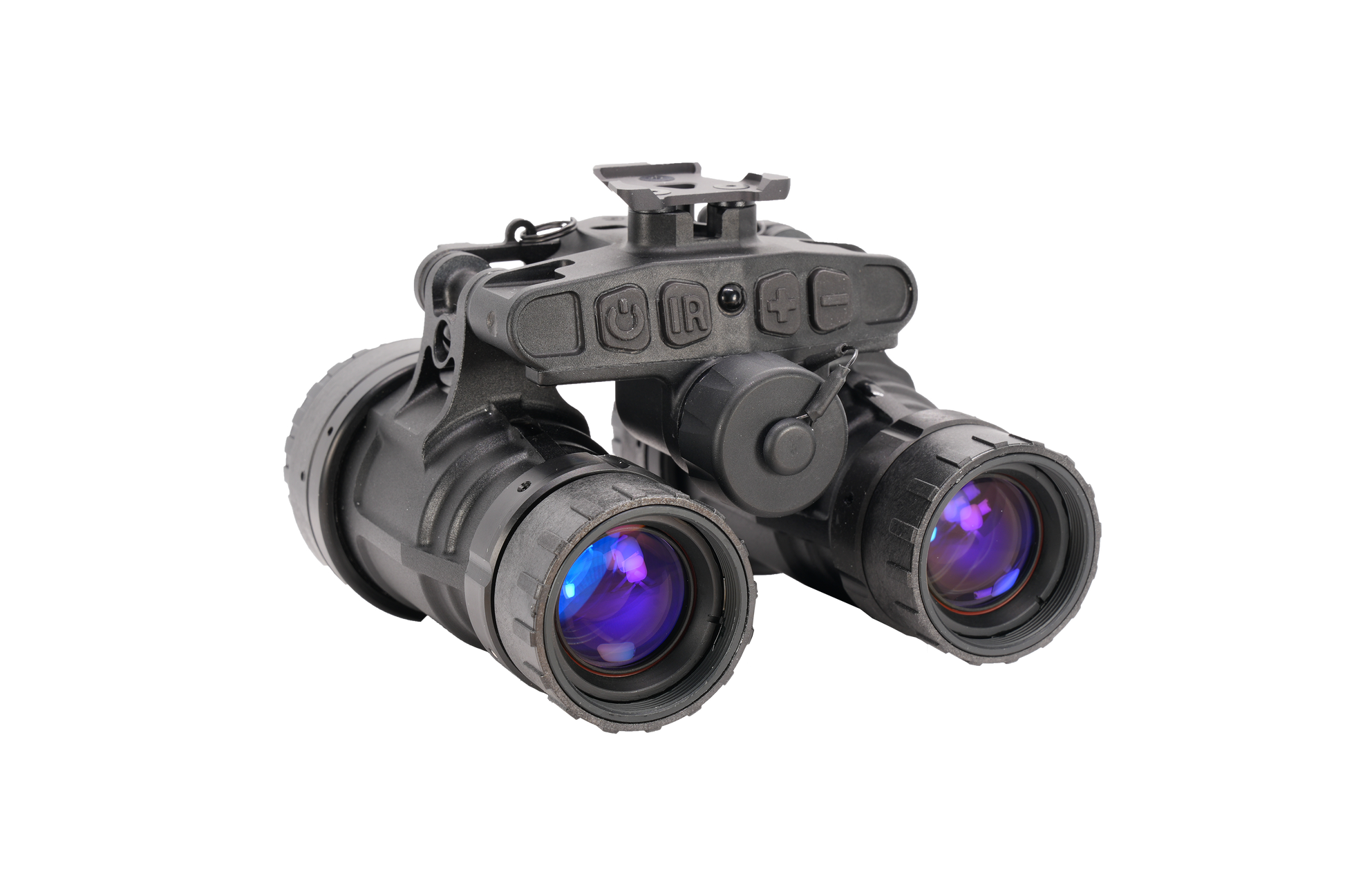

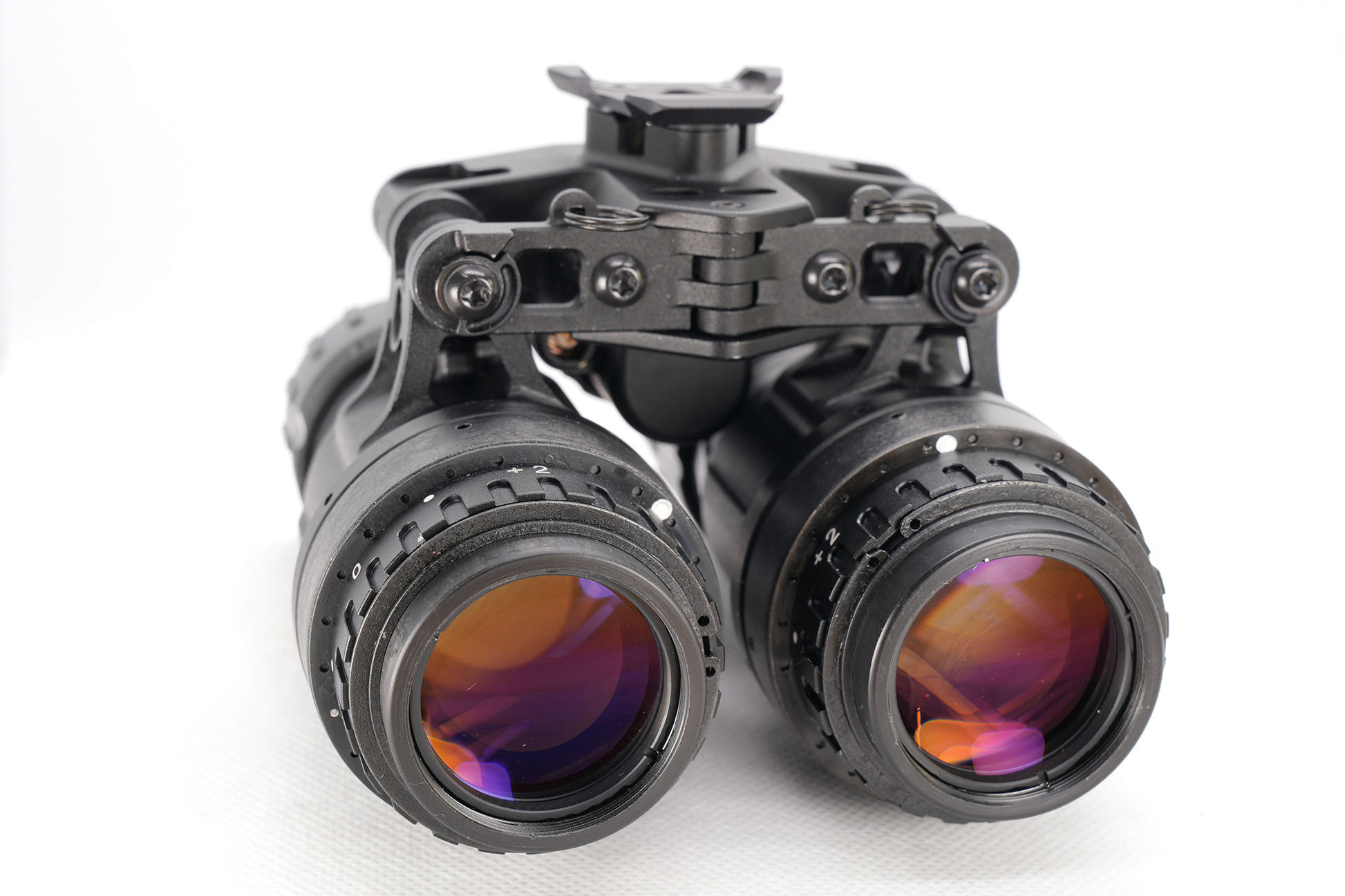

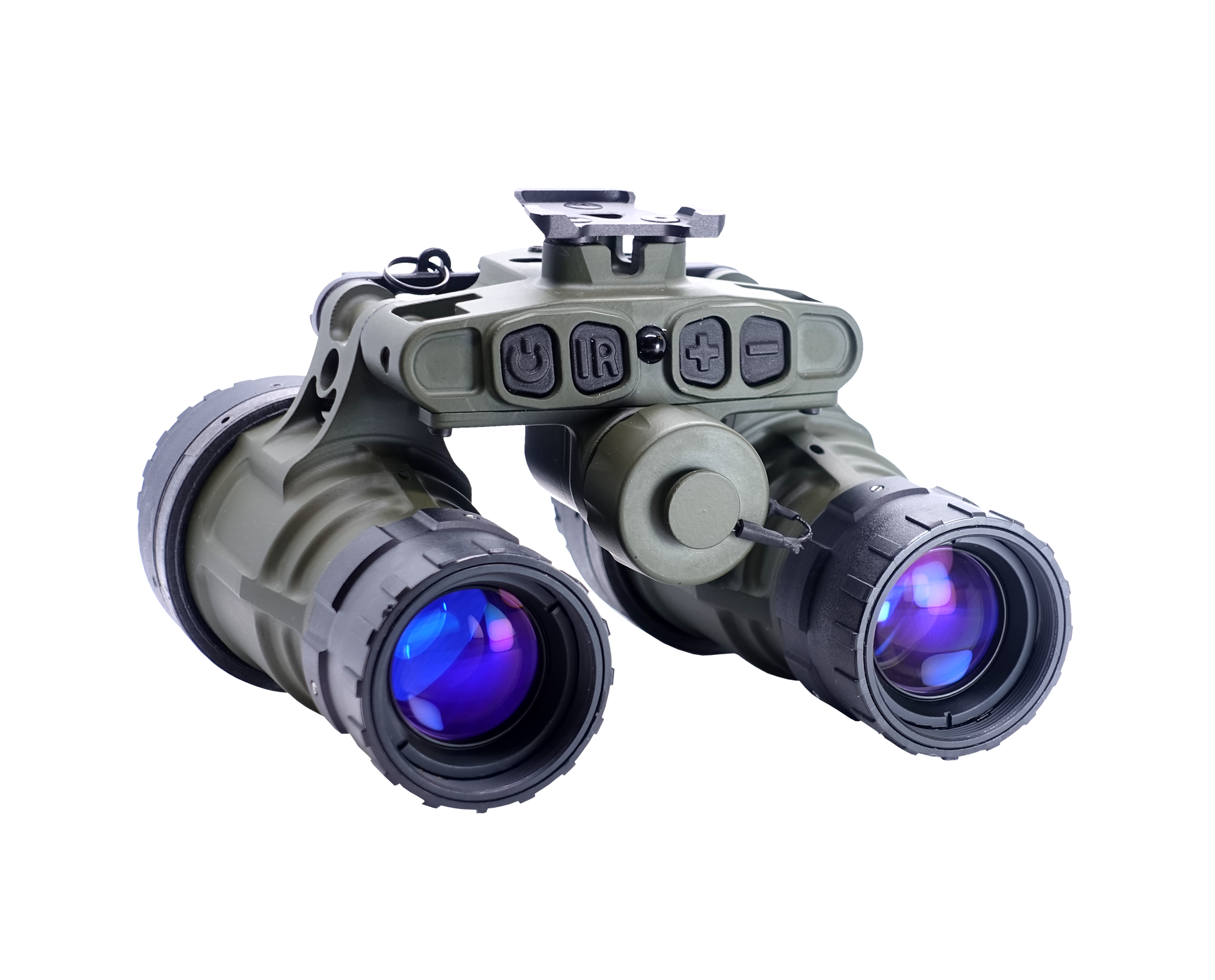

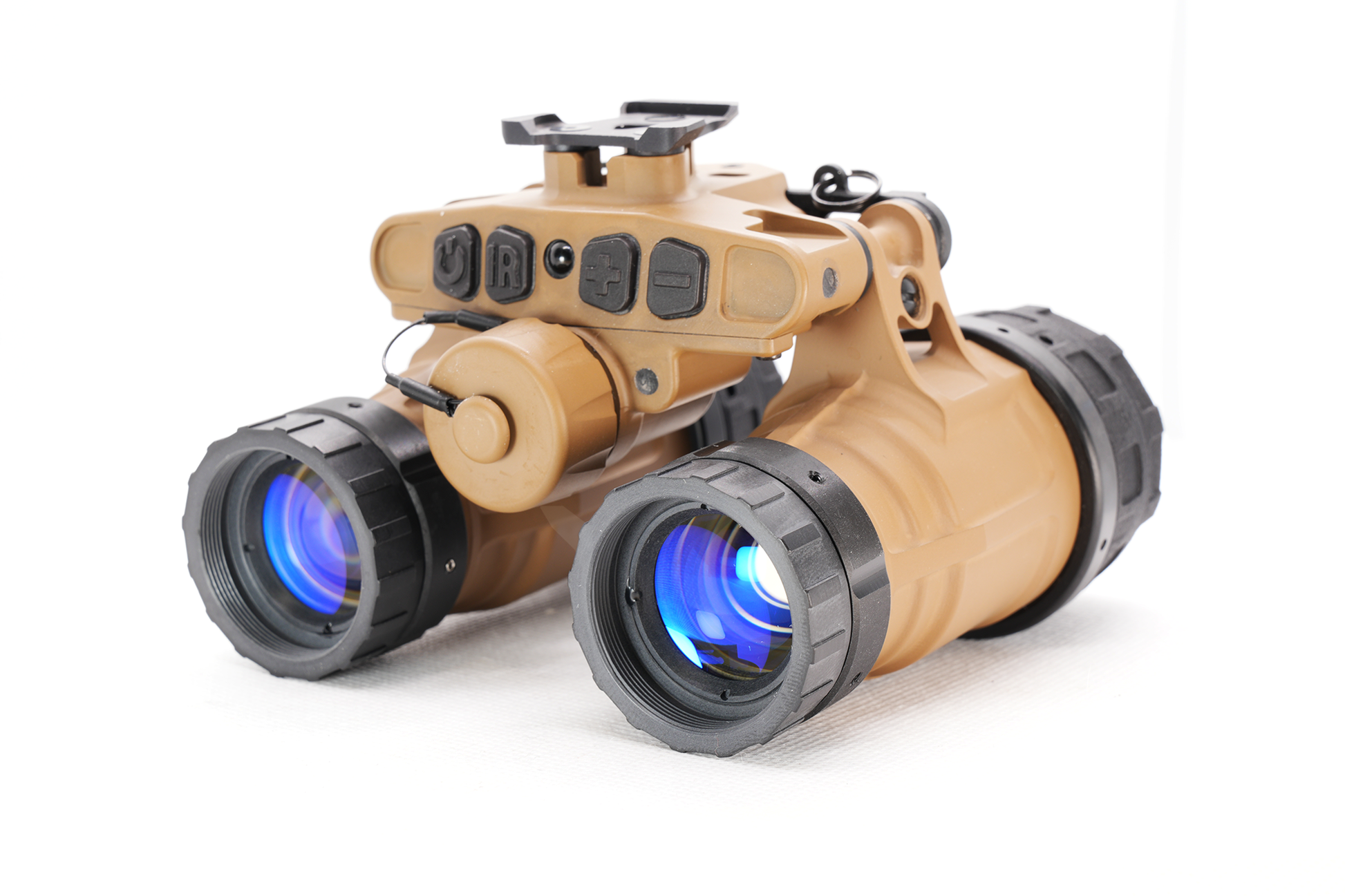

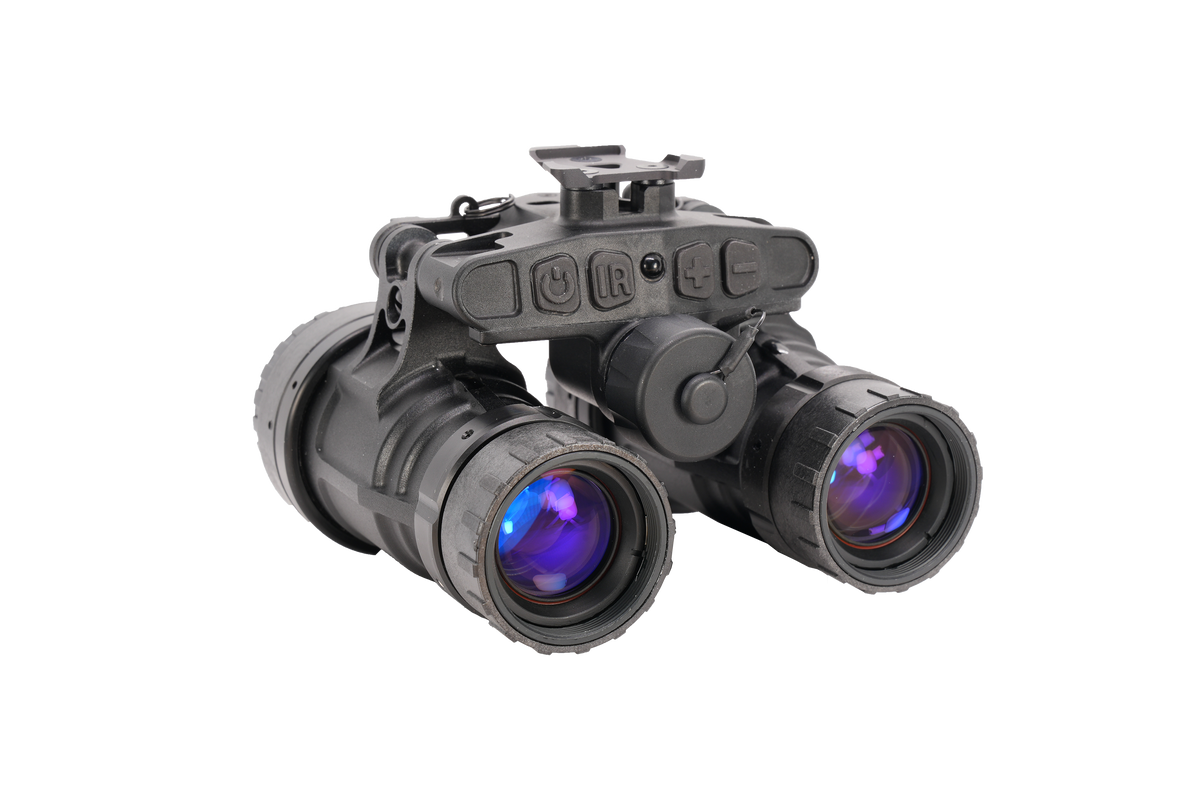

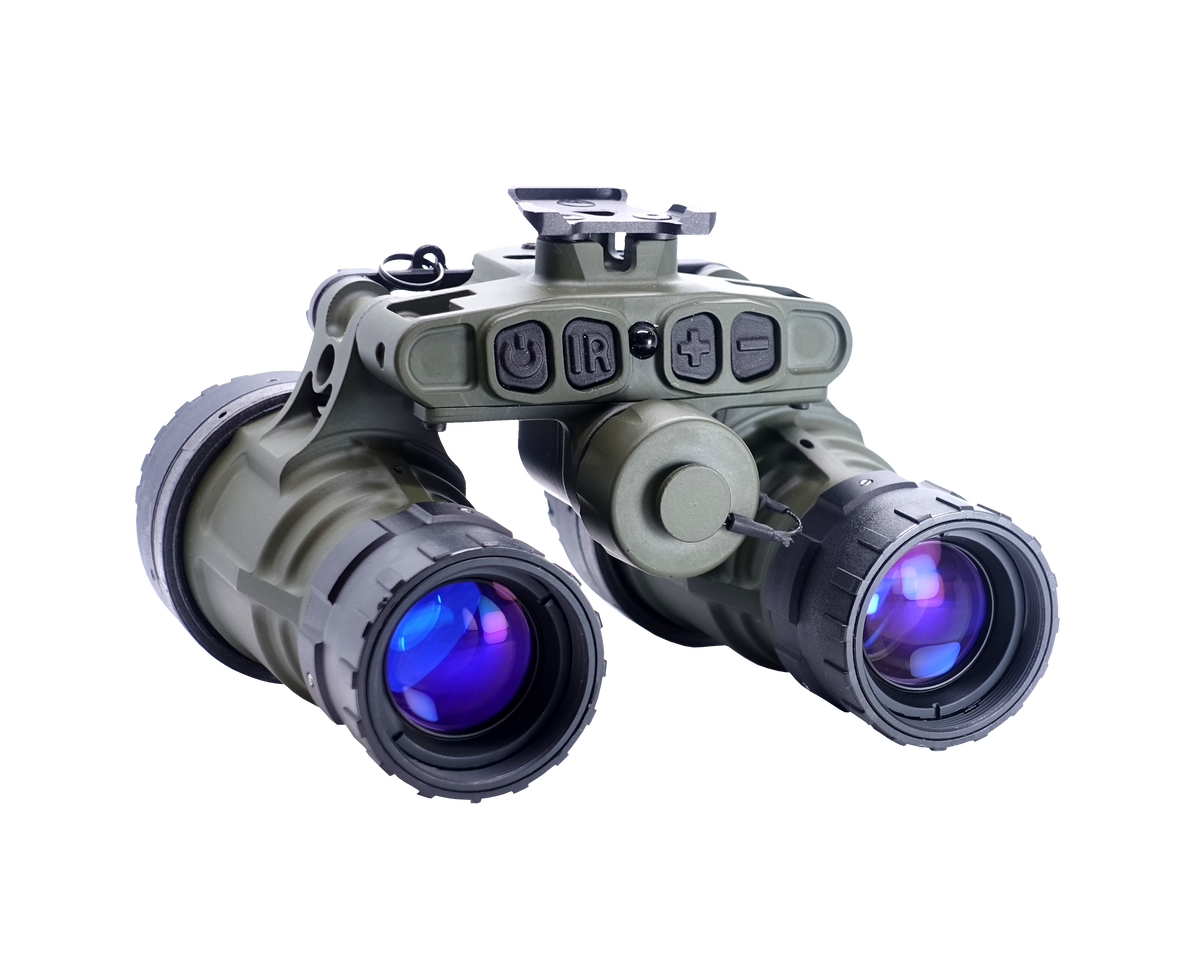

Manticore-Rugged

Manticore-Rugged

Regular price $9,000.00 NZD
Regular price Sale price $9,000.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
Aluminum Housing
View full details

SPECIFICATIONS

CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium

Materials

3 contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter, or MX-10160 with loss of manual gain

Tube type

Mil-standard Type III class II hard anodize, H series Cerakote

Finish

Housing Weight

*6.17 oz. / 0.38 lbs / 175 g

*19.79 oz. / 1.24 lbs / 561 g

(Mil-Spec PVS-14 lenses and Photonis Image intensifiers)

Device Weight Standard

*16.5 oz. / 1.03 lbs / 468 g

(RPO 3.0 PVS-14 lenses and Photonis Image intensifiers)

Device Weight Lightweight

CR123A onboard with a runtime of ~25 hours

On-board power

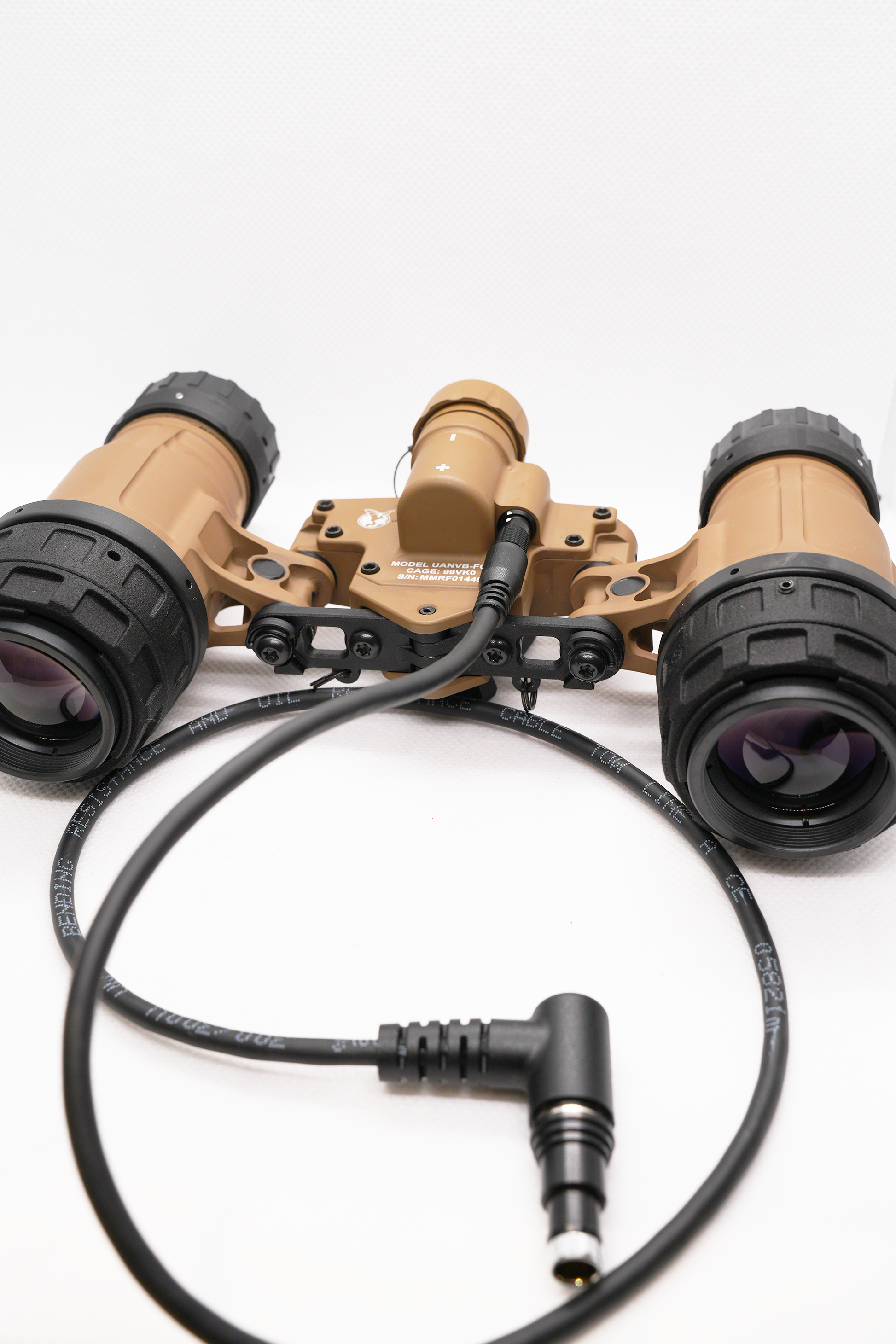

*Optional LEMO port*

Out-board Power

IR Illuminator

YES

Yes, individually

(Pod shutoff is achieved with ultra reliable solid-state magnetic proximity sensors)

Pod power off when rotated to side

Ingress rating

**Exceeds IP-68, and

MIL-STD-810H

Mount style

Dovetail

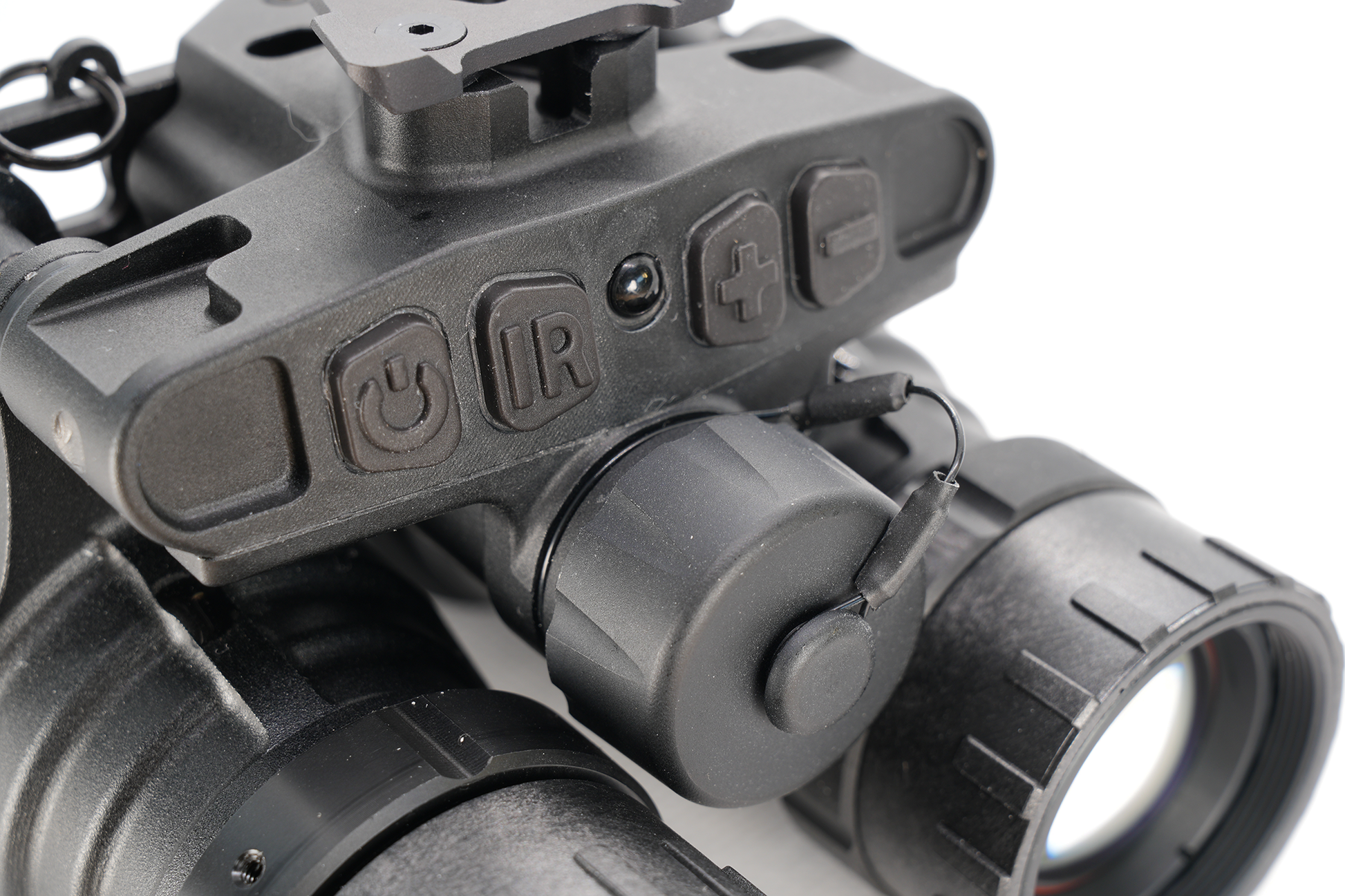

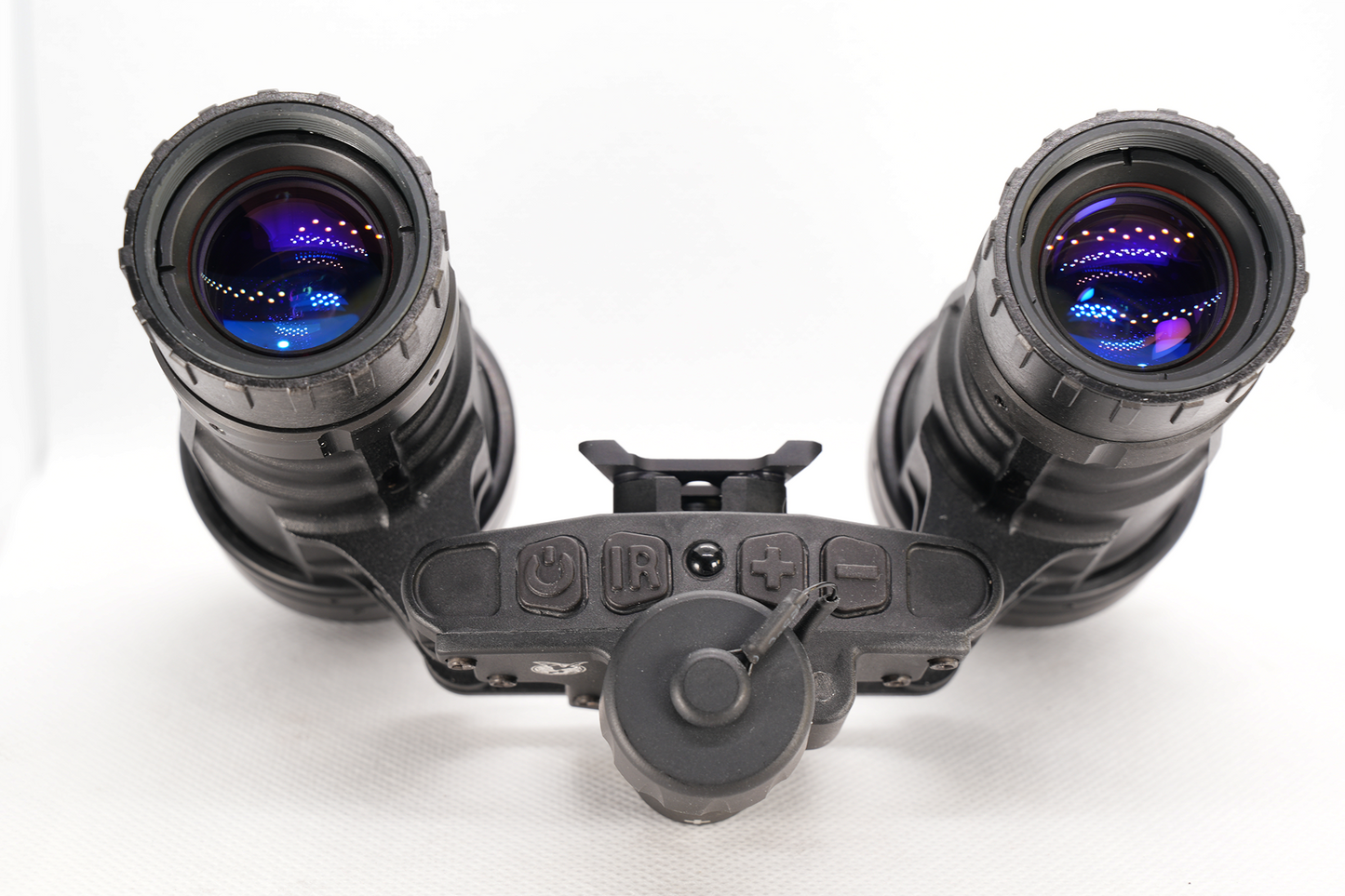

Yes, Digital tactile control buttons

Manual Gain Control:

PVS-14

(Standard or Lightweight)

Optics Style

Lifetime repair or replacement of all housing components no questions asked. (Does not cover damages to intensifier tubes or lens assemblies)
