Night Raider
ELF-31H
ELF-31H
Couldn't load pickup availability
F1.2 Enhanced Dual Tube System with Improved Optical Performance

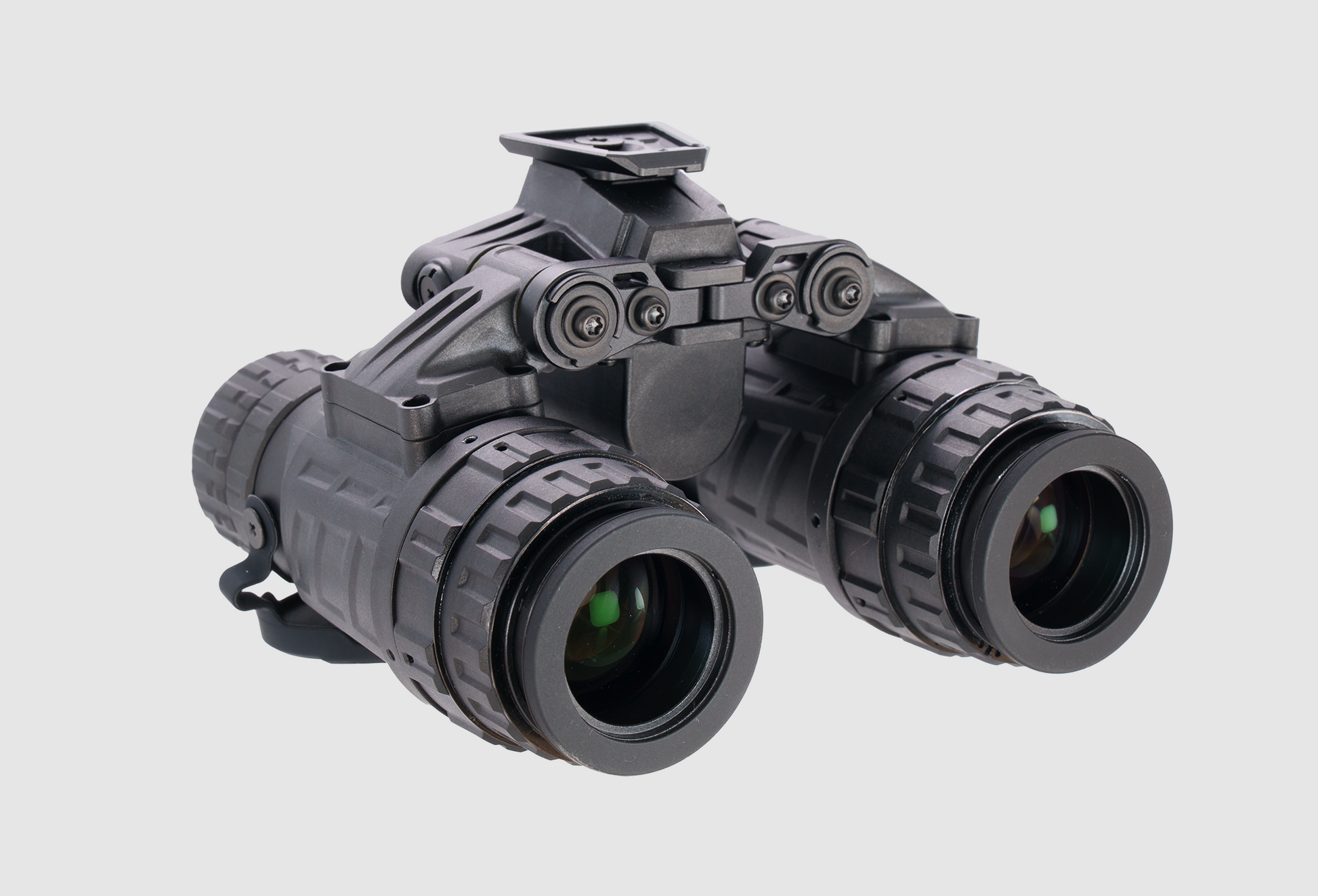

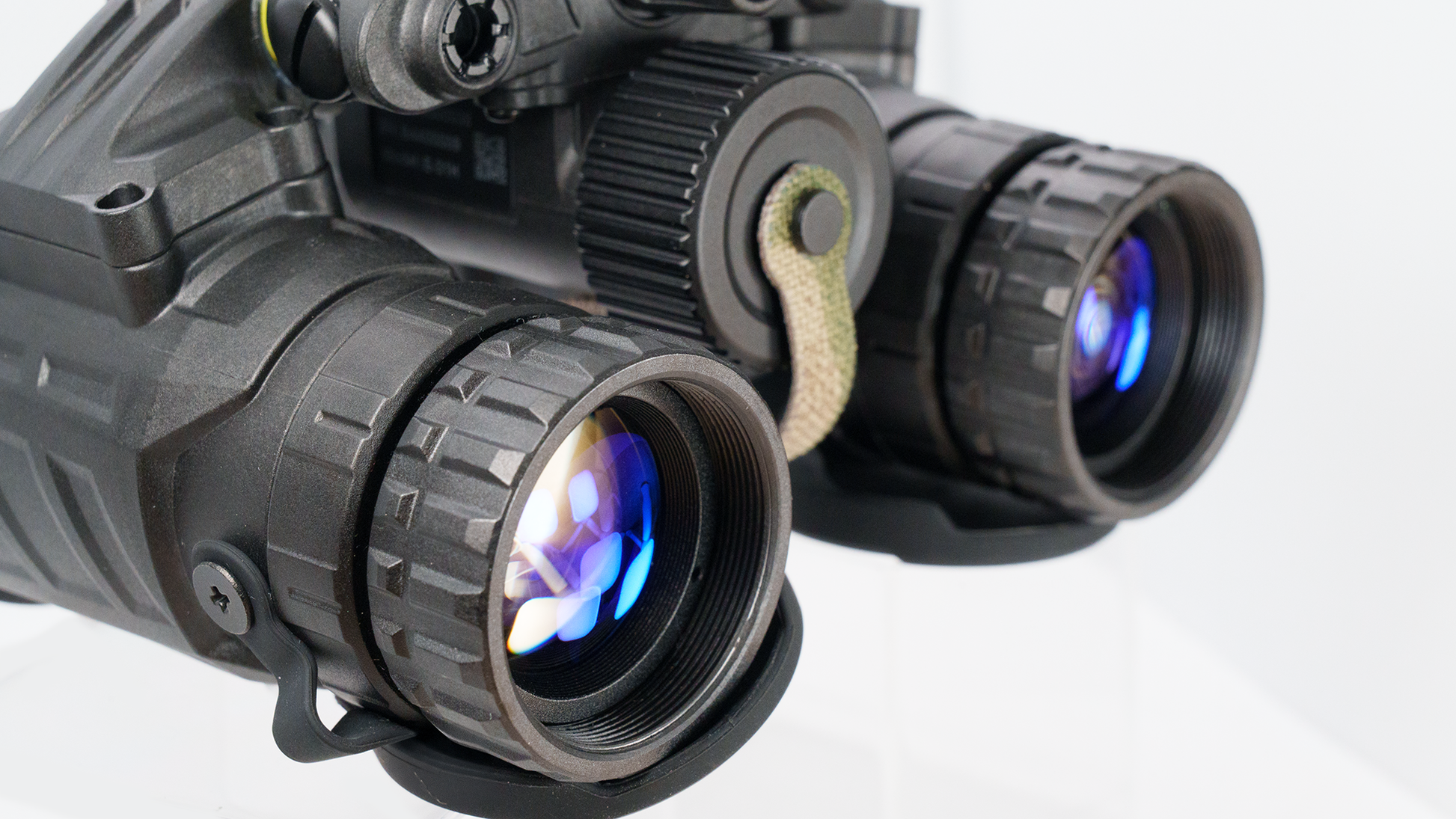

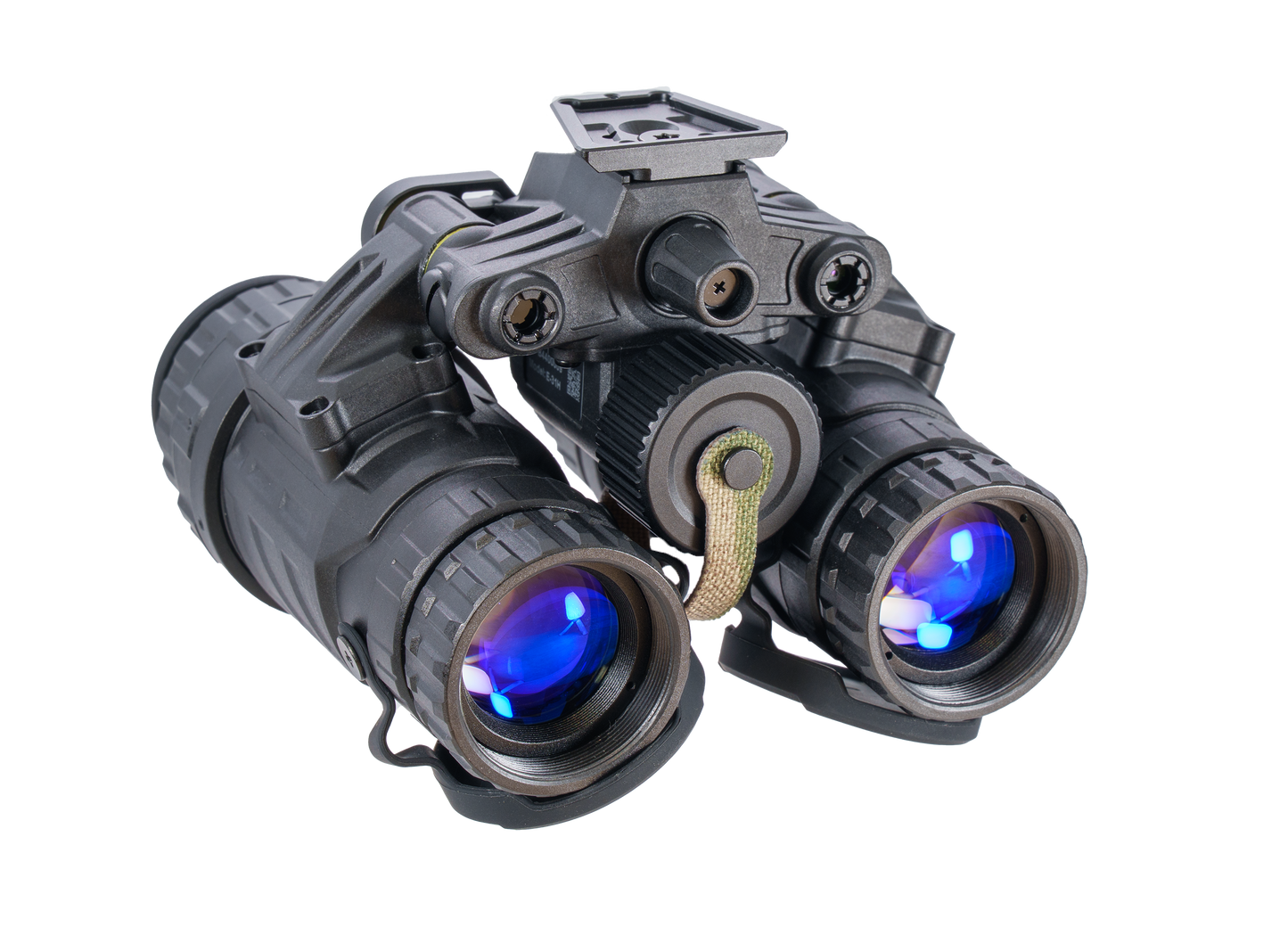

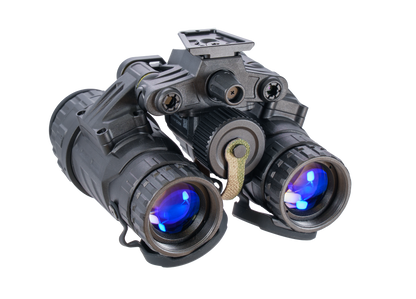

The ELF-31H is an upgraded evolution of the well-known J31 platform, designed to deliver improved brightness and clarity while maintaining a cost-effective dual tube night vision binocular configuration. Featuring an advanced 27mm F1.2 objective lens, the ELF-31H captures more ambient light, resulting in a brighter and sharper image in low-light conditions.
An anti-reflective optical coating helps reduce glare and enhances contrast, improving visibility in challenging environments. This upgraded optical system makes it easier to detect details, improving performance for professional and enthusiast night vision users.
The ELF-31H maintains the compact and practical design that made the J31 popular while offering improved optical efficiency and enhanced viewing performance for demanding applications.
Key Features
- Upgraded 27mm F1.2 objective lens for improved brightness
- Dual tube night vision binocular configuration
- Anti-reflective coated optics for enhanced contrast
- 850nm IR illuminator integrated
- Bright Source Protection (BSP)
- Flip-up auto shutoff functionality
- Low battery indicator within field of view
- Compact and ergonomic binocular design
- Improved optical clarity compared to original J31
Enhanced Optical Performance
- 27mm F1.2 objective lens captures more ambient light
- Improved image brightness in low-light environments
- Anti-reflective coating reduces glare
- Enhanced contrast for improved target identification
- 40° field of view
Construction & Durability
- Compact and rugged night vision binocular housing
- Ingress protection suitable for demanding environments
- Operating temperature range from -40°C to +50°C
- Bright Source Protection safeguards intensifier tubes
- Designed for professional night vision applications
Power System
- Compatible with CR123A battery
- Compatible with AA battery
- Approximately 20 hours runtime
- Efficient power management system
- Low battery indicator visible within field of view
Technical Specifications
| Specification | Details |
|---|---|
| Magnification | 1x |
| Objective Lens | 27mm F1.2 |
| Field of View | 40° ±2° |
| Focus Range | 0.25m to infinity |
| Eye Relief | 25mm |
| Diopter Adjustment | -6 to +2 |
| IR Illuminator | 850nm |
| Battery Type | 1x CR123A or 1x AA |
| Operating Time | Approximately 20 hours |
| Ingress Protection | 20m water resistance |
| Dimensions | 108 × 106 × 83 mm |
| Operating Temperature | -40°C to +50°C |
| Weight | 530 g ±5% |

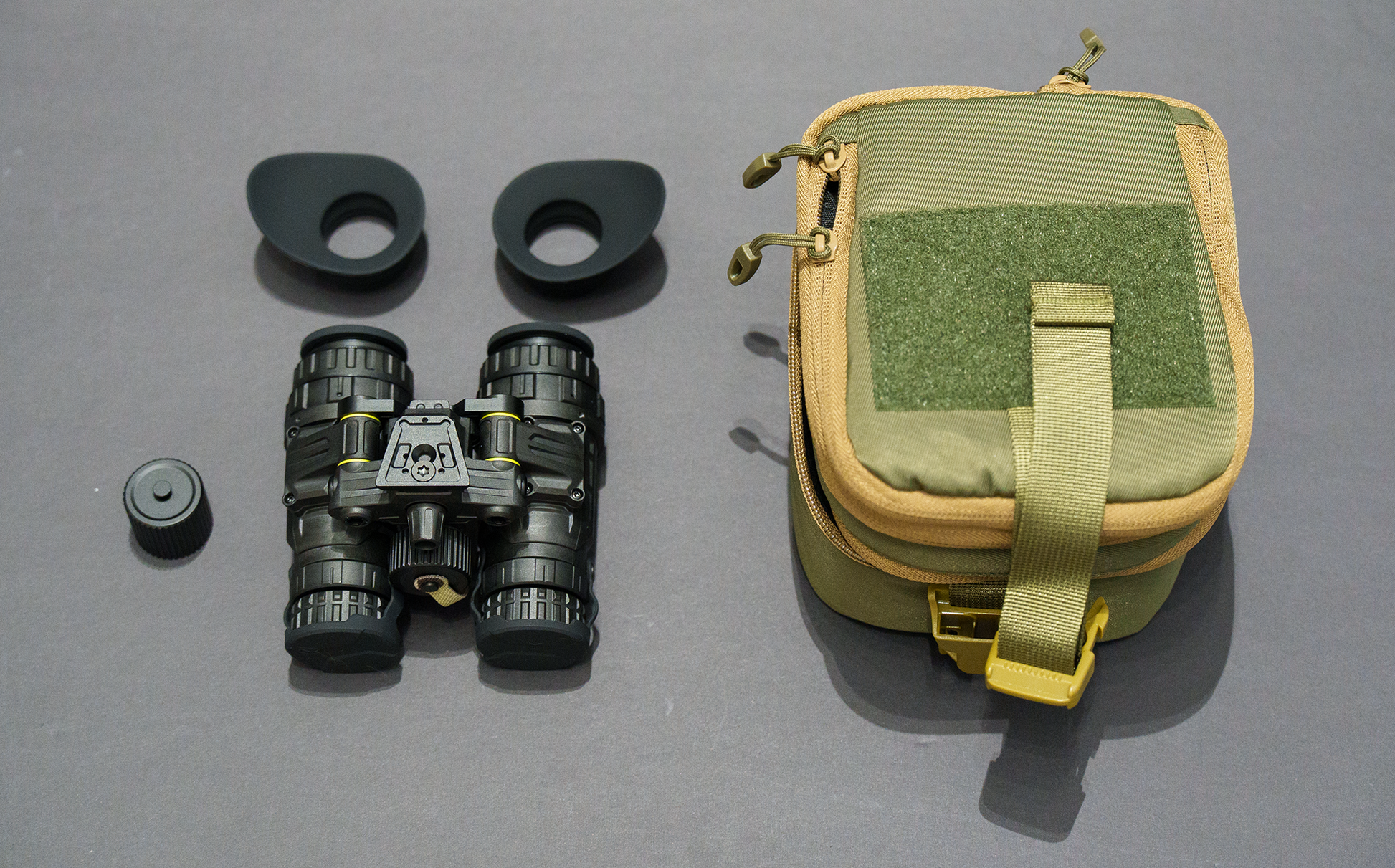

Package Includes
- 1 x ELF-31H night vision binocular
- User manual
The ELF-31H offers improved optical performance compared to the original J31, providing a brighter image, enhanced clarity, and reliable operation in a compact dual tube night vision binocular platform.
