MH-1

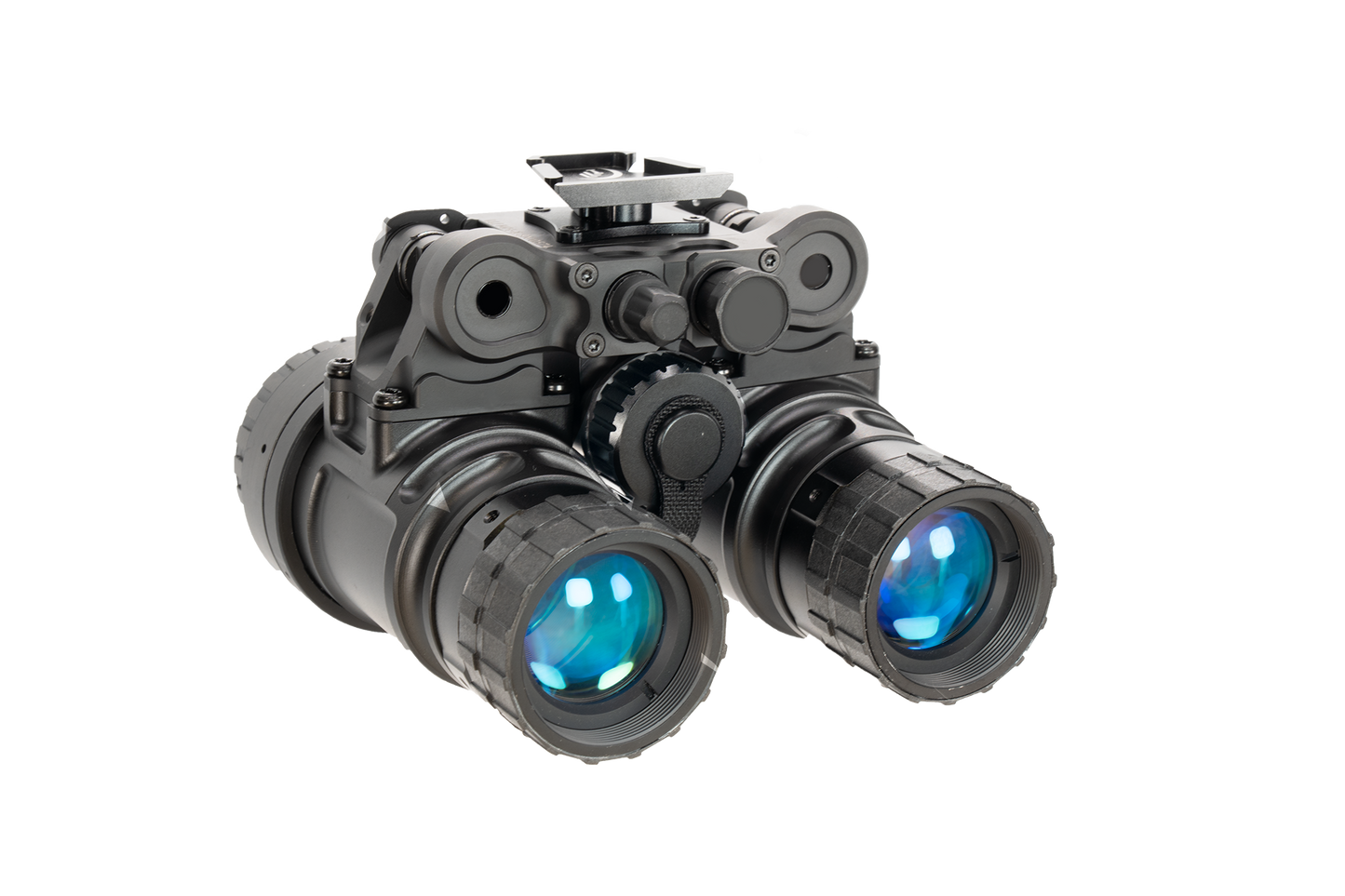

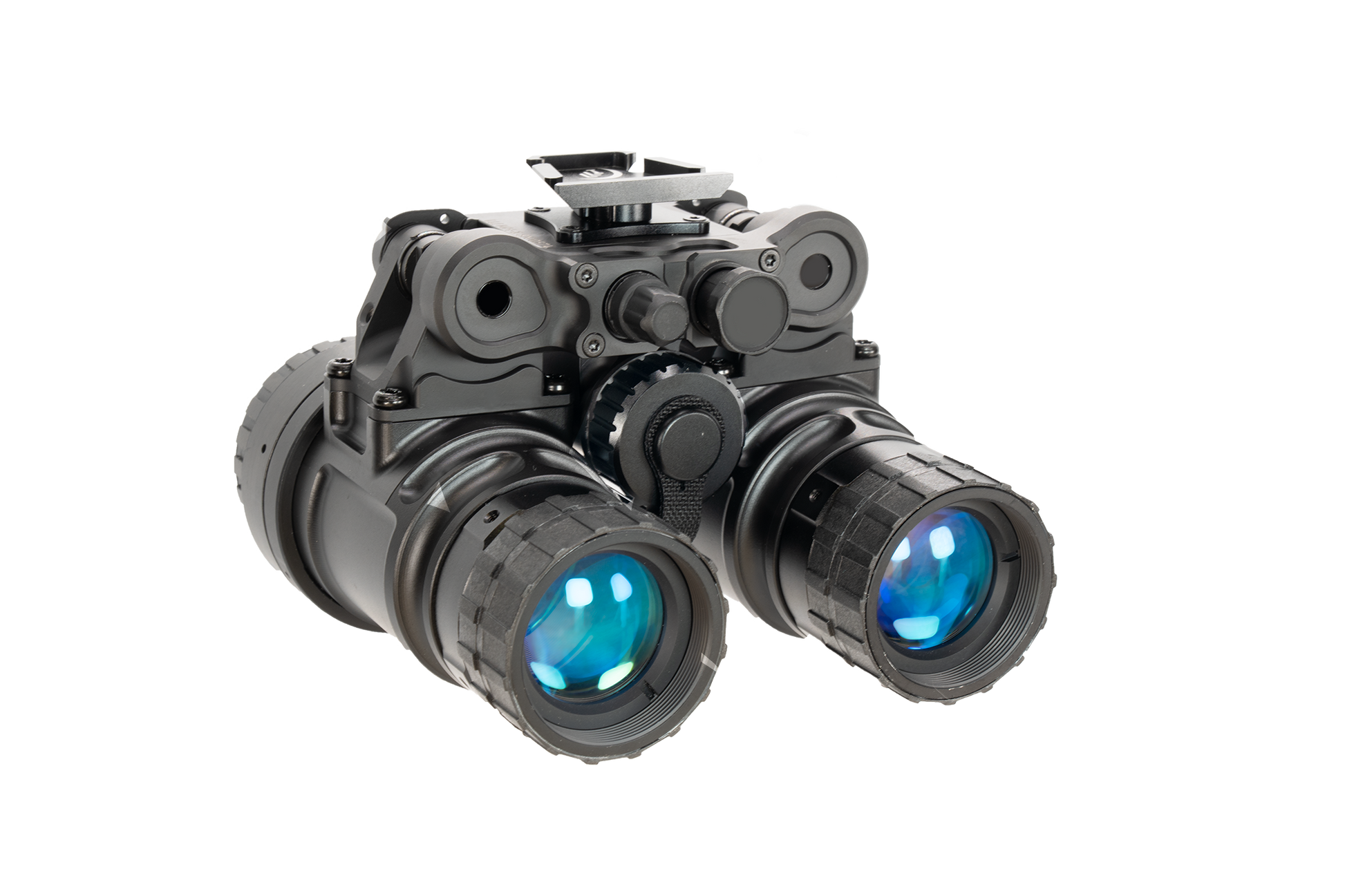

MH-1 Reinforced Modular Night Vision Binocular Housing – Magnesium & Titanium Professional System Made in USA

The MH-1 Reinforced Version from Low Light Innovations represents the most advanced evolution of the MH-1 modular night vision binocular housing. Manufactured in the United States using aerospace-grade magnesium and titanium alloys, this reinforced version offers enhanced durability while maintaining a lightweight and highly adaptable design.

Designed for professional users requiring a reliable and configurable dual tube night vision system, the MH-1 features a fully modular architecture allowing users to quickly swap power supply configurations including CR123A, AA, and external battery solutions. The innovative Modular Bridge System (MBS) also allows the device to be separated into two monocular units, providing exceptional operational flexibility.

The integrated manual gain control connects directly via plug-in without soldering, helping preserve the warranty of compatible image intensifier tubes. Compatible with MX10160 and MX11769 tubes as well as PVS-14 optics, the MH-1 reinforced housing is designed for high performance night vision setups.

Key Features

• Reinforced aerospace-grade magnesium and titanium housing
• Made in USA professional night vision binocular housing
• Manual gain control via plug-in connection
• Dual power IR illumination capability
• Rotational pod shutoff functionality
• IPD stops for consistent alignment
• Modular onboard and external power options
• Modular Bridge System allowing split monocular configuration
• Adjustable pod tension
• Designed for professional and tactical applications

Modular Power System

• Onboard CR123A battery configuration
• External battery compatibility with modular components
• Approximate runtime of 25 hours with onboard battery
• Flexible power configuration options
• Optimized for extended operational use

Optics & Tube Compatibility

• Compatible with 18mm MX10160 3-pin image intensifier tubes
• Compatible with MX11769 tubes with EGAC pigtail
• Compatible with PVS-14 eyepiece optics
• Compatible with PVS-14 objective lenses
• Supports professional night vision configurations

Construction & Durability

• Magnesium and titanium alloy reinforced housing
• Submersible to 1.5 meters for 30 minutes
• Enhanced structural strength compared to standard polymer housings
• Designed for demanding environmental conditions
• Reliable long-term durability

Technical Specifications

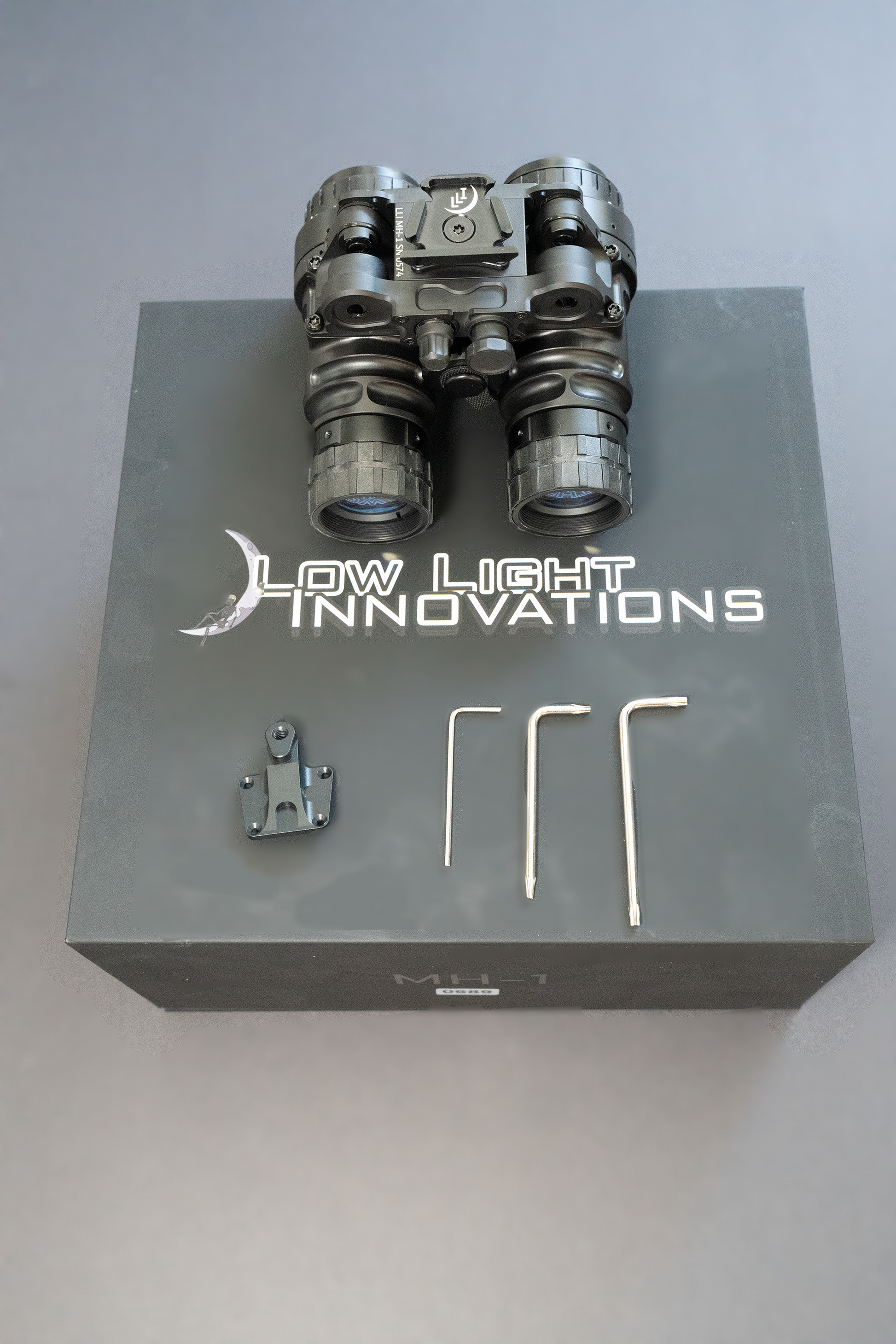

Package Includes

• 1 x MH-1 reinforced modular night vision binocular

The MH-1 Reinforced provides a premium combination of lightweight aerospace materials, modular adaptability, and professional-grade performance, making it a high-end modular night vision binocular housing compatible with widely used optics and intensifier tubes.
