RPO 4.0 NVD-Next Gen Lightweight PVS-14 Lenses

RPO 4.0 NVD-Next Gen Lightweight PVS-14 Lenses

MS-8905-RPO-GST IIN N-OBJ

$1,141.65 NZD
$873.00 NZD $1,141.65 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

9 in stock

Lens

RPO NVD Next Gen 4.0 Ultra Lightweight PVS-14 Lenses – Mil-Spec Performance Optics

The RPO NVD Next Gen (RPO 4.0) is designed to be one of the lightest PVS-14 compatible night vision lenses available on the commercial market. Engineered for professional performance, the RPO 4.0 eyepiece and objective lenses deliver reliable Mil-Spec optical performance while significantly reducing overall system weight.

Constructed from high-quality materials, these lightweight optics provide sharp image clarity and consistent performance in demanding environments. The eyepiece weighs under 41 grams while the objective lens weighs only 38 grams, making the RPO 4.0 an excellent choice for users seeking lightweight night vision optics.

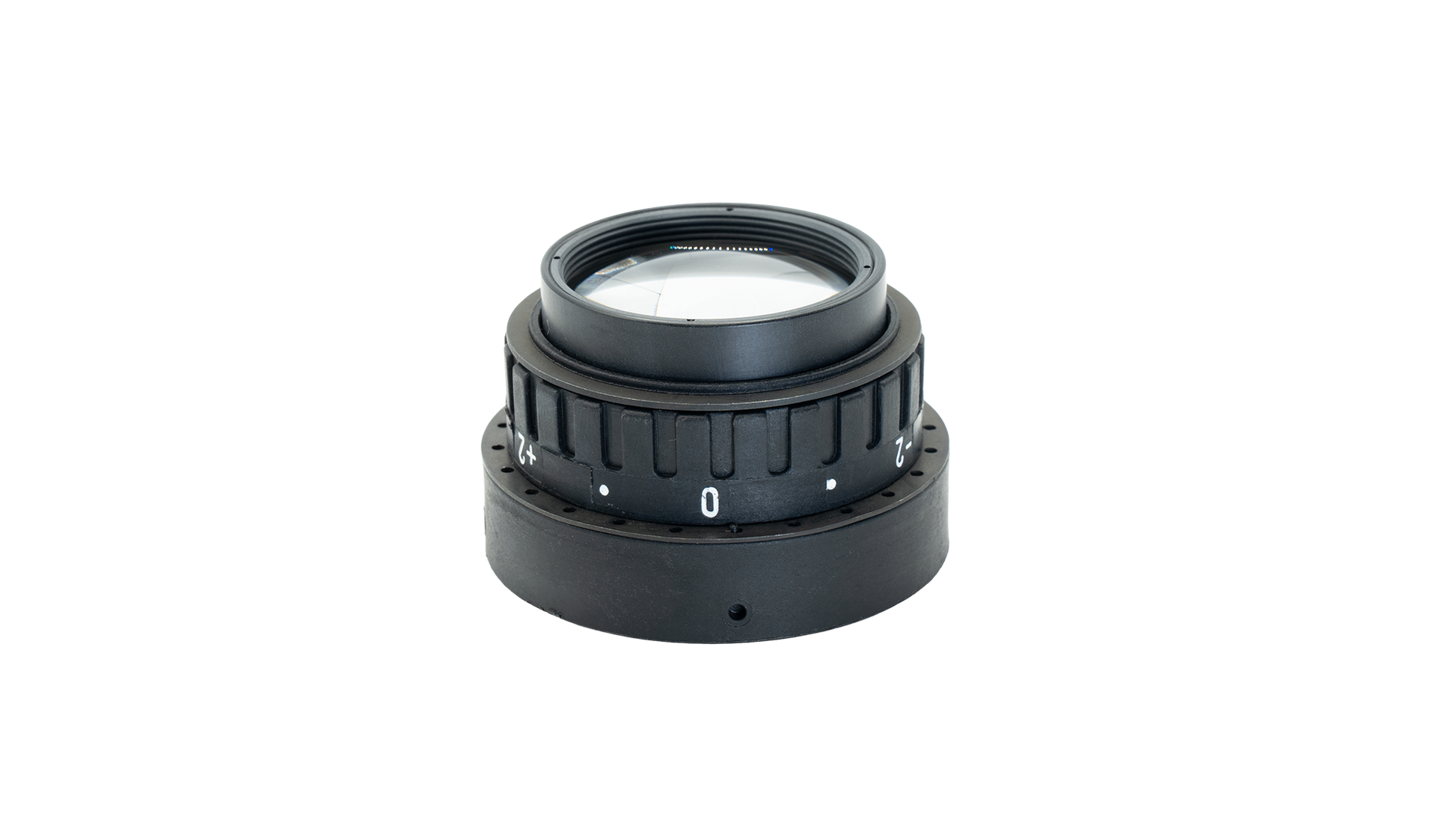

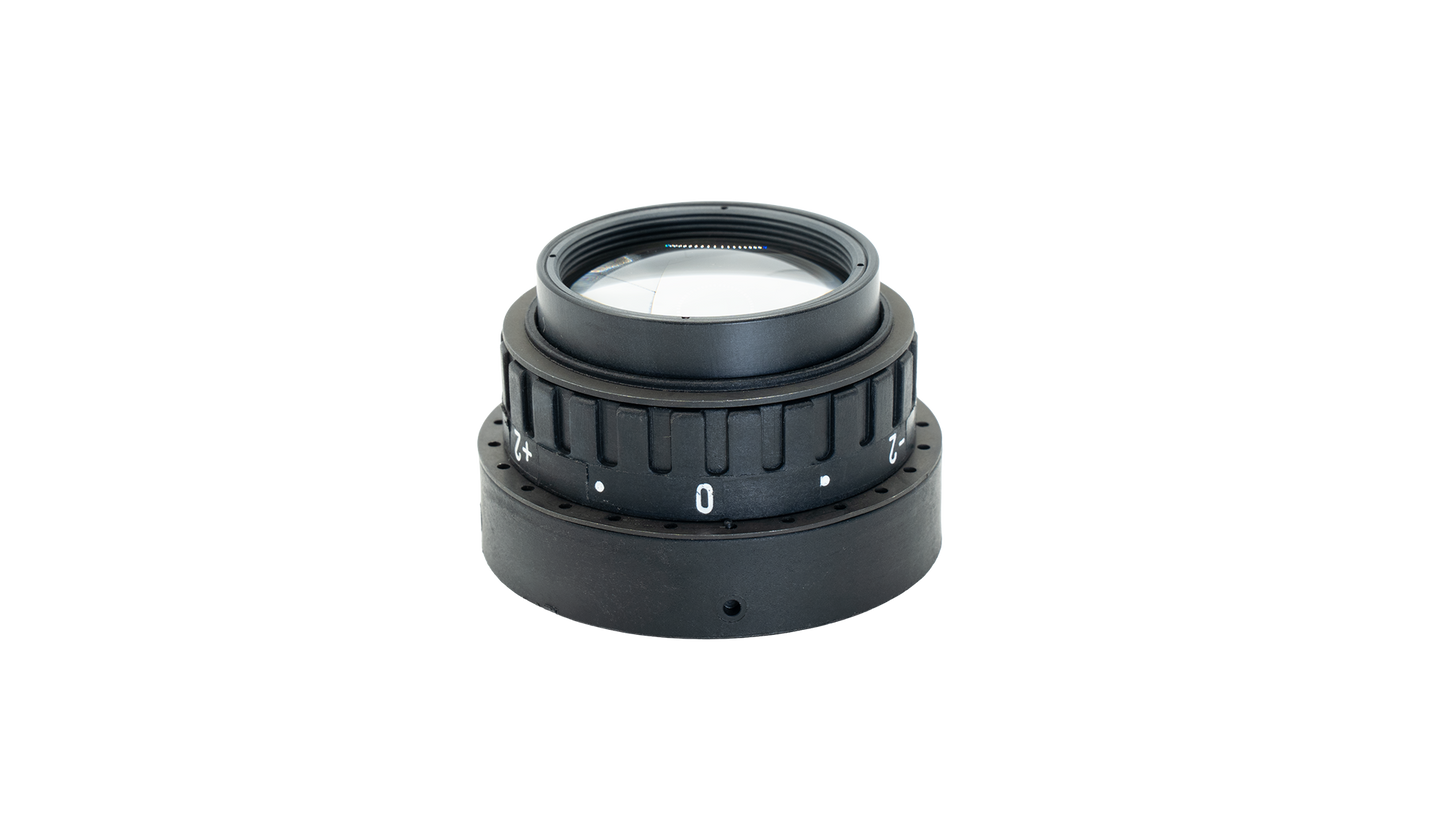

Compared to the previous generation, the 4.0 eyepiece features an enlarged eye box and extended eye relief, improving comfort and flexibility during extended use. These improvements allow faster alignment and reduced eye strain, making the RPO 4.0 an ideal upgrade for professional users and enthusiasts looking to optimize their PVS-14 optical system.

Key Features

  • Ultra lightweight PVS-14 compatible eyepiece and objective lenses
  • Improved eye box for easier alignment
  • Extended eye relief for increased comfort
  • Mil-spec optical performance standards
  • High light transmission efficiency
  • Reduced optical distortion
  • Enhanced usability compared to RPO 3.0 generation
  • Optimized for professional night vision systems
  • Improved performance at a lower cost

Optical Performance

  • 40° field of view for wide visual coverage
  • High optical clarity across full image area
  • Improved edge-to-edge sharpness
  • Reduced distortion compared to standard optics
  • High light transmission between 450–680nm

Lightweight Design

  • Eyepiece weight under 41 grams
  • Objective lens weight under 38 grams
  • Optimized for helmet mounted night vision systems
  • Reduces overall system fatigue
  • Ideal upgrade for lightweight night vision builds

Construction & Durability

  • High quality optical glass construction
  • MIL-STD-810 environmental testing standard
  • Immersion resistant up to 20 meters
  • Designed for demanding operational environments
  • Professional-grade optical durability

Technical Specifications

Specification Eyepiece Objective
Weight ≤ 41 g (<27 g cell) ≤ 38 g
Effective Focal Length 27.03 ± 0.5 mm 27.03 ± 0.5 mm
Flange Focal Distance 10 mm (+0.28 / -0.42 mm) ≥ 1.0 mm
Eye Relief 28 mm –
Exit Pupil Diameter ≥ 14 mm on axis –
Field of View 40° ± 1° 40° ± 2°
Diopter Focus +2 to -6 –
Transmission ≥ 85% –
F-number – ≤ 1.23
Relative Illumination – ≥ 40%
Distortion -8% ± 0.5% -8% ± 0.5%
Environmental Standard MIL-STD-810 MIL-STD-810
Immersion Resistance 20m ≥ 2 hours 20m ≥ 2 hours

Package Includes

  • RPO NVD Next Gen 4.0 eyepiece lens
  • RPO NVD Next Gen 4.0 objective lens

The RPO NVD Next Gen 4.0 provides a high-performance lightweight upgrade for users seeking improved clarity, comfort, and durability in a professional PVS-14 compatible optical system.
