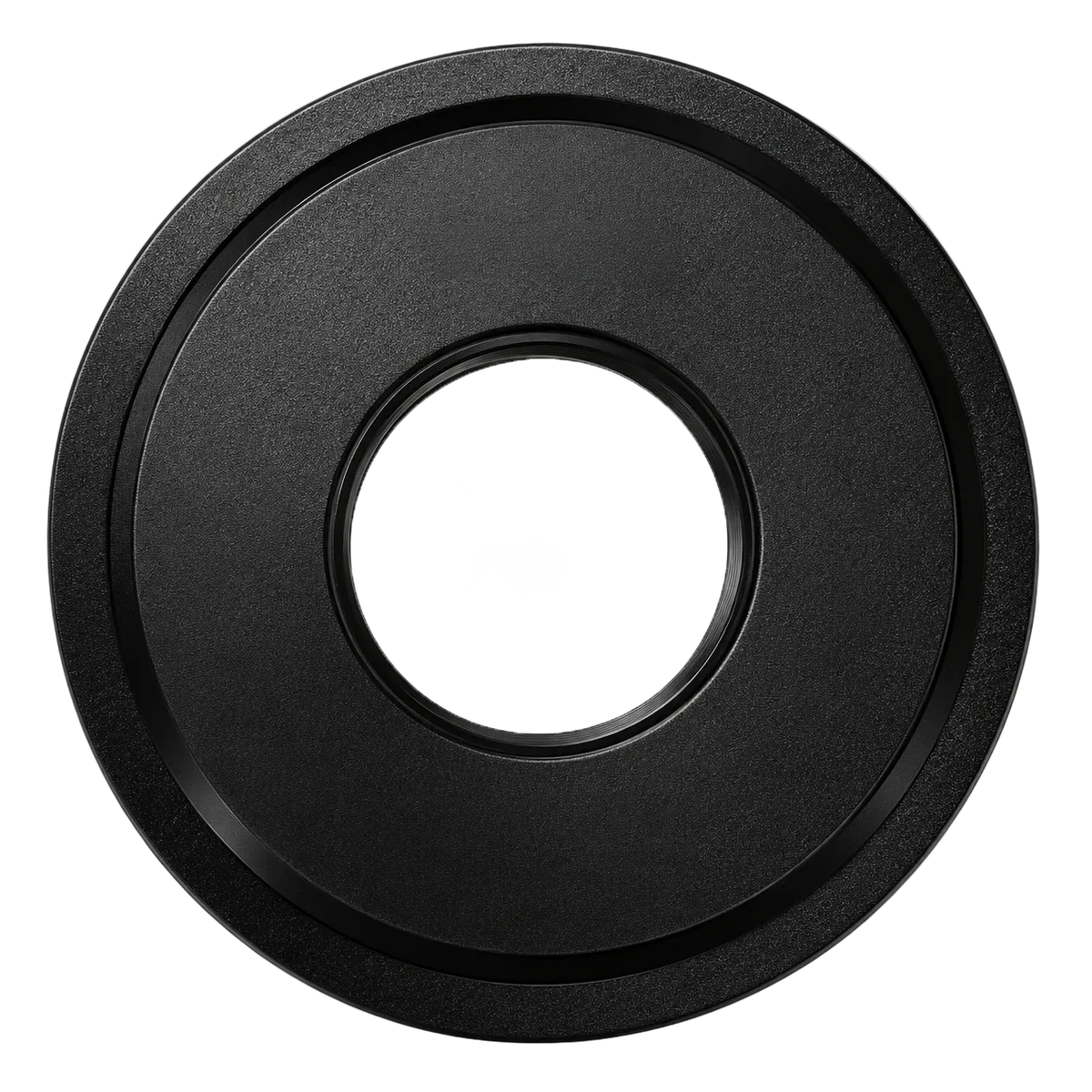

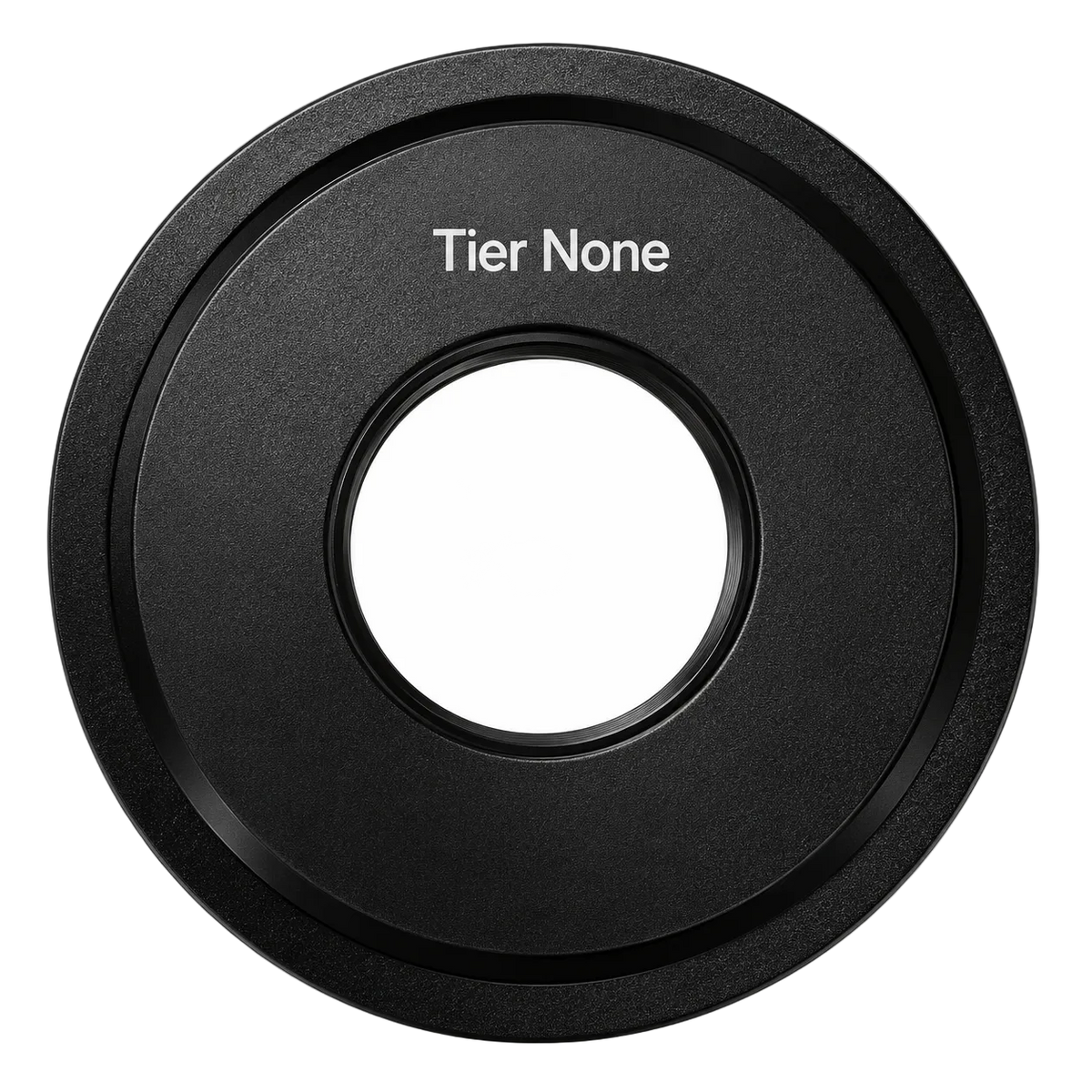

Tier None PVS-14 NVG Camera Adapter

Tier None PVS-14 NVG Camera Adapter

Capture high-quality night vision photos and videos with the Tier None PVS-14 NVG Camera Adapter, designed to connect compatible PVS-14 pattern night vision eyepieces directly to DSLR, mirrorless and cinema camera lenses.

Unlike handheld or indirect camera setups, this direct-mount night vision camera adapter creates a secure optical connection between your NVG and camera lens. This helps reduce stray light, unwanted movement, optical misalignment and vignetting for a cleaner and more natural representation of the image seen through your night vision device.

Machined from 6061-T6 aluminum and finished with a matte hardcoat anodized surface, the Tier None adapter provides a compact, lightweight and purpose-built solution for PVS-14 photography and videography with compatible DSLR, mirrorless and cinema camera systems.

Key Features

• Direct-mount PVS-14 camera adapter
• Designed for night vision photography and videography
• Compatible with DSLR, mirrorless and cinema camera lenses
• Available in multiple camera lens filter thread sizes
• Threads directly into compatible PVS-14 pattern eyepieces
• Maintains full eyepiece diopter adjustment
• Helps reduce stray light and unwanted movement
• Helps minimise optical misalignment and vignetting
• Machined from 6061-T6 aluminum
• Matte hardcoat anodized finish
• Designed to minimise unwanted internal reflections
• Compact direct-mount optical configuration

Direct-Mount PVS-14 Camera Adapter

The Tier None PVS-14 Camera Adapter creates a direct mechanical and optical connection between a compatible PVS-14 eyepiece and camera lens. This eliminates the need to manually hold a camera behind the night vision eyepiece and provides a more stable platform for capturing night vision images and video.

The direct-mount design keeps the distance between the PVS-14 eyepiece and camera lens as short as possible. This helps maintain optical alignment while reducing unwanted external light entering between the night vision device and camera lens.

Full eyepiece diopter adjustment is retained after installation, allowing the night vision image to be precisely focused for the camera.

DSLR, Mirrorless & Cinema Camera Compatibility

The Tier None NVG Camera Adapter is available in multiple camera lens thread sizes, allowing it to be used across a wide range of DSLR, mirrorless and cinema camera lenses.

Not sure which adapter size you need? Look at the front of your camera lens for the number next to the Ø symbol. This number indicates the lens filter thread diameter and should correspond to the adapter size required for your camera lens.

6061-T6 Aluminum Construction

The Tier None PVS-14 Lens Adapter is machined from durable 6061-T6 aluminum, providing a strong yet lightweight interface between the night vision eyepiece and camera lens.

The adapter threads directly into the female eyepiece threads found on compatible PVS-14 pattern optics, creating a secure direct-mount connection without requiring a bulky external camera mounting system.

Matte Hardcoat Anodized Finish

A matte hardcoat anodized finish helps minimise unwanted internal reflections between the night vision eyepiece and camera lens. Reducing these reflections helps maintain a cleaner optical path when photographing or recording through the night vision device.

The matte finish is particularly useful for night vision imaging, where unwanted reflections and stray light between optical components can negatively affect the captured image.

Optimized for Night Vision Photography & Video

For best results, camera lenses with focal lengths between approximately 24mm and 55mm are recommended. The ideal focal length depends on the camera's sensor size, lens design and desired framing.

For full-frame cameras, approximately 28mm provides an excellent starting point. APS-C, cinema and medium-format camera systems may require different focal lengths depending on sensor dimensions and the specific lens configuration.

Experimenting within the recommended focal-length range can help achieve the preferred balance between field of view, image coverage and vignetting for a particular camera setup.

Compatible PVS-14 Pattern Eyepieces

The Tier None PVS-14 NVG Camera Adapter has been tested with PVS-14 pattern eyepieces from multiple manufacturers and optical systems, including:

• Noctis Technologies / Carson Industries
• Fujinon
• Qioptiq
• Salvo Engineering
• RPO 2.0
• RPO 3.0
• RPO NVD-N / 4.0
• Photonis Defense Boomslang

Compatibility Limitations

The adapter is designed around compatible PVS-14 pattern eyepiece threads. Night vision systems using different eyepiece designs or mounting interfaces may require additional adapters.

Not directly compatible with L3 PVS-31A, GPNVG-18, Infiray Jerry14, Jerry31 or Optronics lenses without additional adapters.

Recommended Camera Setup

Specification	Recommendation
Camera Type	DSLR / Mirrorless / Cinema Camera
Recommended Lens Range	Approximately 24–55mm
Full-Frame Starting Point	Approximately 28mm
Camera Lens Connection	Lens Filter Thread
NVG Interface	Compatible PVS-14 Pattern Eyepiece Threads
Eyepiece Diopter Adjustment	Retained

Technical Specifications

Specification	Details
Brand	Tier None
Product Type	PVS-14 / NVG Camera Adapter
Material	6061-T6 Aluminum
Finish	Matte Hardcoat Anodized
NVG Compatibility	Compatible PVS-14 Pattern Eyepieces
Camera Compatibility	Compatible DSLR, Mirrorless & Cinema Camera Lenses
Camera Interface	Lens Filter Thread
Available Sizes	Multiple Lens Thread Diameters
Recommended Focal Length	Approximately 24–55mm

Installation

DO NOT overtighten the adapter. Excessive tightening can cause the adapter ring to bind against the camera lens.

For easier installation, attach the night vision device to the adapter ring first. Once the NVG is correctly installed, attach the adapter assembly to the camera lens. This installation sequence helps reduce the likelihood of the adapter ring becoming excessively tight on the camera lens.

Ideal Applications

• Night vision photography
• Night vision videography
• PVS-14 photography
• NVG video recording
• DSLR night vision imaging
• Mirrorless night vision imaging
• Cinema camera night vision recording
• Night vision testing and documentation

Why Choose the Tier None PVS-14 NVG Camera Adapter?

The Tier None PVS-14 NVG Camera Adapter provides a compact direct-mount solution for capturing the image produced by compatible PVS-14 pattern night vision devices. By securely connecting the eyepiece to a compatible DSLR, mirrorless or cinema camera lens, the adapter helps reduce stray light, movement and optical misalignment while maintaining full eyepiece diopter adjustment. Its 6061-T6 aluminum construction and matte hardcoat anodized finish make it a purpose-built solution for high-quality night vision photography and videography.
