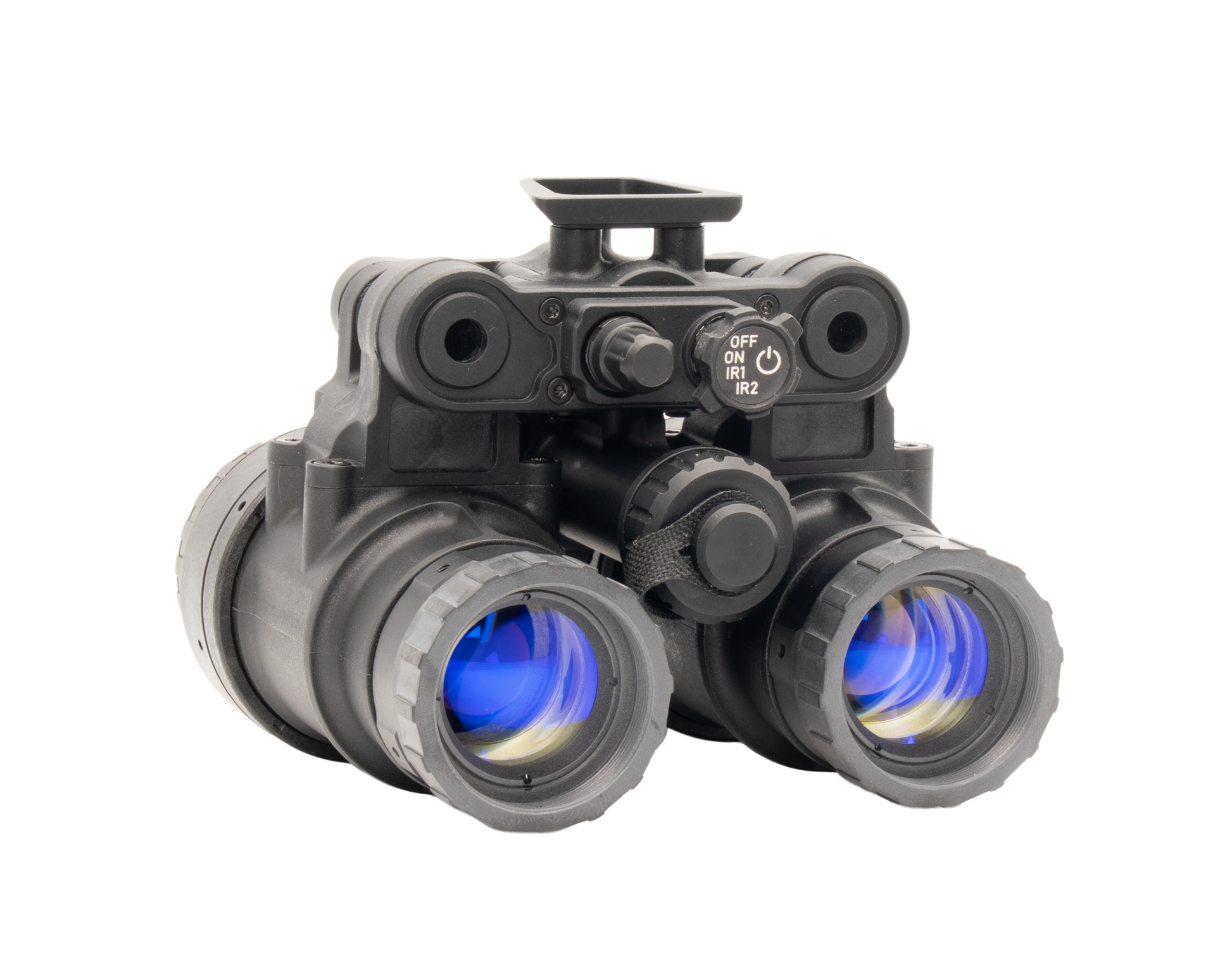

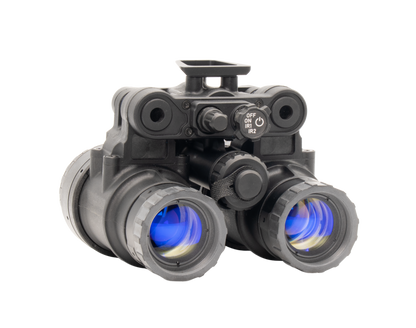

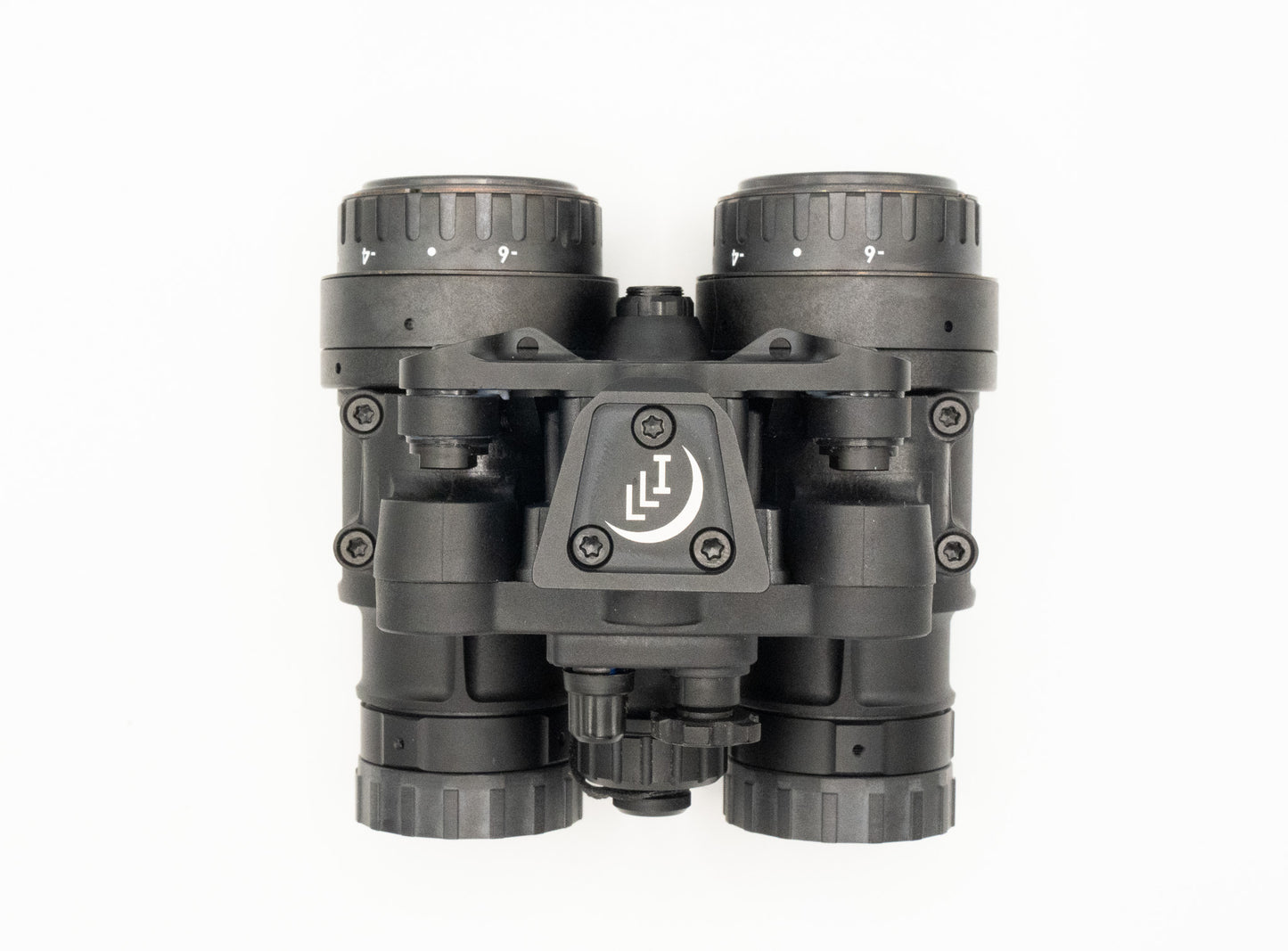

UH-1 Night Vision Binocular Housing – Manual Gain Dual Tube System Made in USA
The UH-1 from Low Light Innovations is a professional dual tube night vision binocular housing developed in 2026 as a cost-effective alternative to the flagship MH-1 platform. Designed to balance performance, durability, and accessibility, the UH-1 utilizes a high-strength hybrid filled polymer construction to provide a rugged and lightweight solution for professional night vision users.
While inspired by the modular design philosophy of the MH-1, the UH-1 focuses on delivering essential features such as manual gain control, dual power IR illumination, and PVS-14 optics compatibility in a streamlined configuration. The manual gain system connects directly via plug-in, requiring no soldering and helping preserve the warranty of compatible image intensifier tubes.
Manufactured in the United States, the UH-1 offers dependable performance, professional-grade durability, and long-term reliability, making it an excellent choice for users seeking an affordable manual gain night vision binocular housing compatible with industry-standard components.
Key Features
Hybrid filled polymer professional night vision housing
Manual gain control via 4-pin ECAG plug-in connection

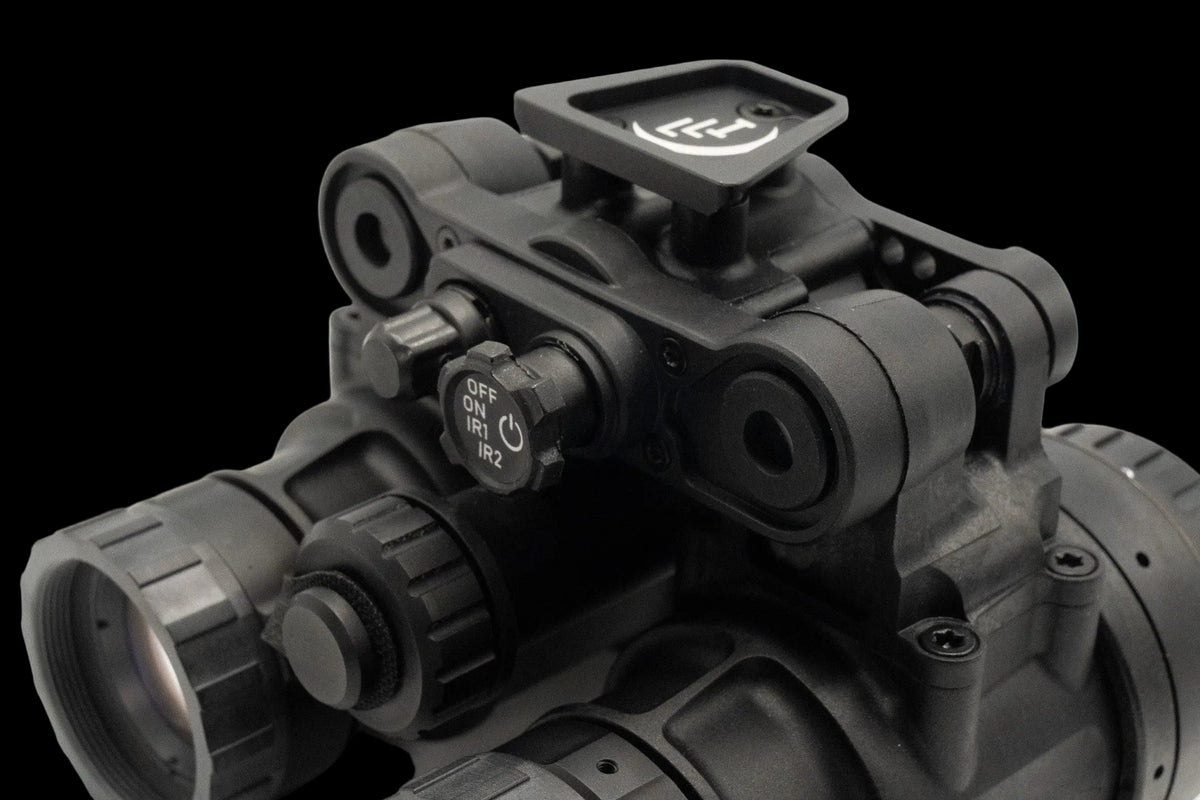

Dual power IR illuminator with low and high settings
Rotational pod auto shutoff functionality
IPD stops for consistent alignment
User adjustable hinge tension
Onboard AA battery compatibility

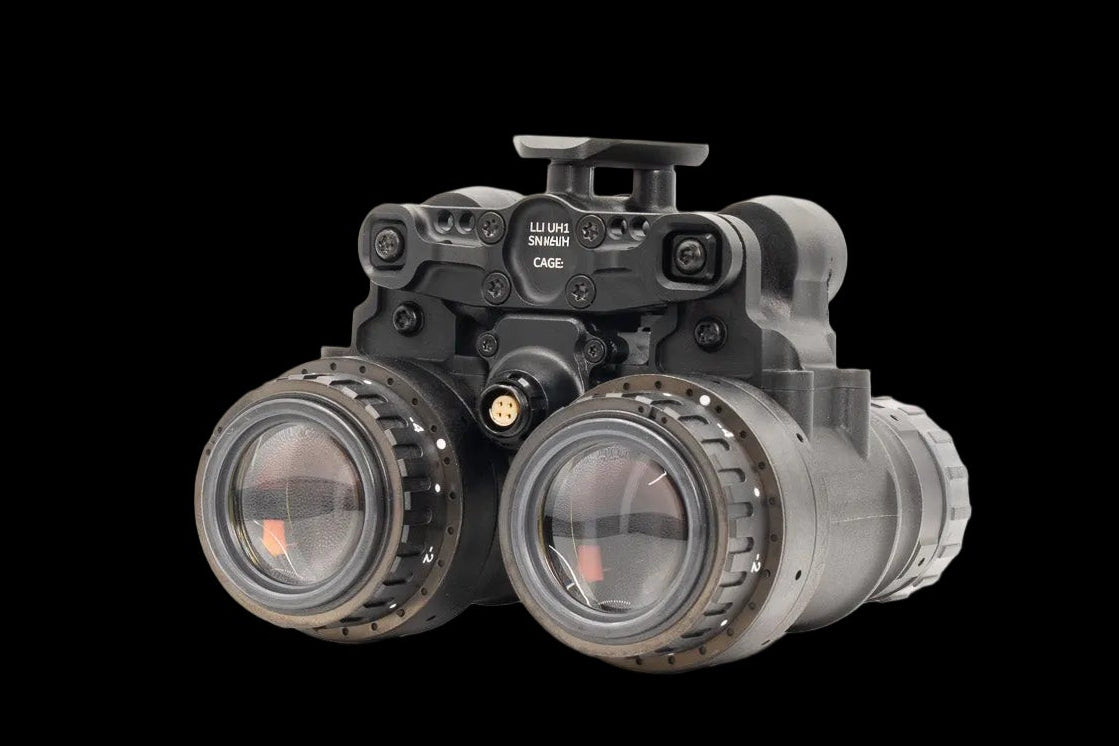

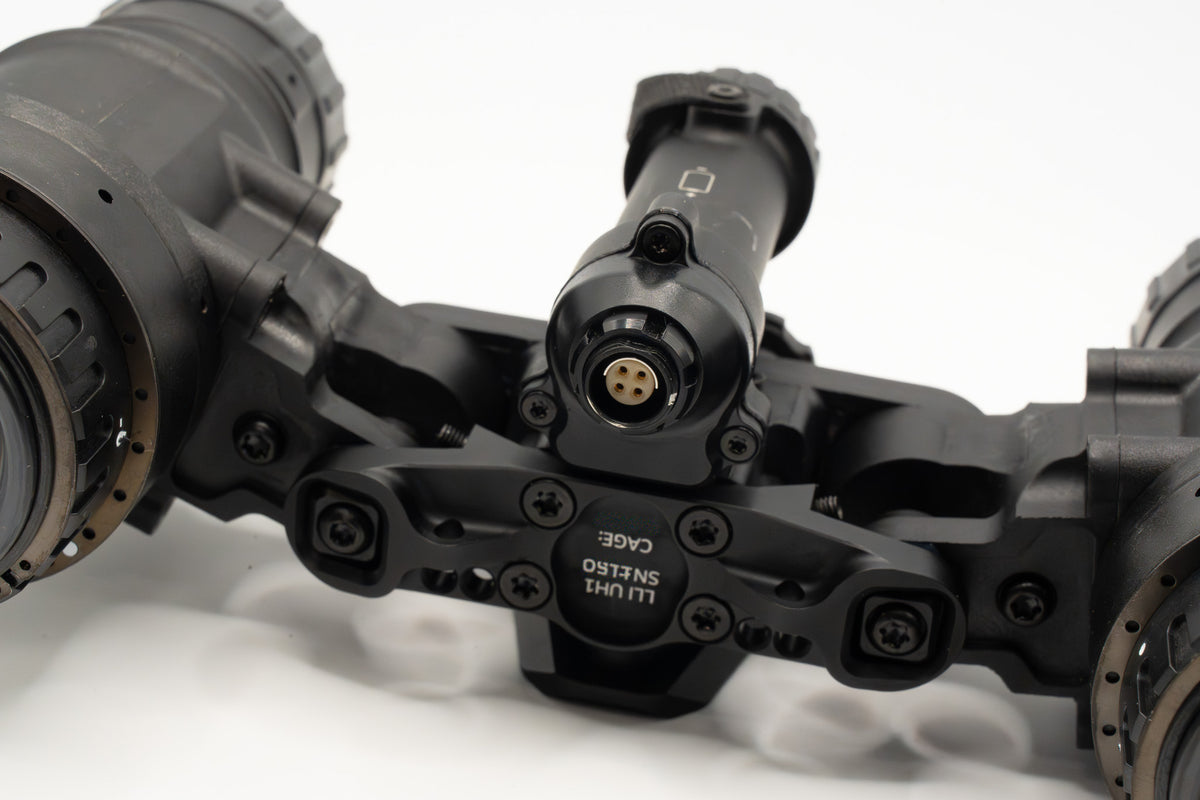

External Fischer port power capability
Lifetime warranty coverage
Made in USA
Manual Gain System
Manual gain adjustment capability
Direct plug-in connection without soldering
Compatible with ECAG 4-pin configuration
Helps preserve intensifier tube warranty
Professional brightness control capability
Optics & Tube Compatibility
Compatible with MX10160 image intensifier tubes
Compatible with MX11769 image intensifier tubes
Compatible with PVS-14 eyepiece optics
Compatible with PVS-14 objective lenses
Supports 40° and 50° field of view configurations
Construction & Durability
Hybrid reinforced polymer construction
IP68 waterproof rating
NATO drop tested to 1.5 meters
Designed for demanding environments
Optimized for professional helmet-mounted setups
Power System
Onboard AA battery compatibility
External Fischer port power support
Runtime approximately 25 to 90 hours depending on configuration
Flexible power configuration options
Reliable performance for extended operations
Technical Specifications
Specification
Details
Magnification
1x
Field of View
40° / 50°
Focus Range
9.8 inches to infinity
Eye Relief
25 mm
IPD Range
57–80 mm
Diopter Adjustment
-6 to +2
Weight
434 g (15.3 oz)
Material
Hybrid filled polymer
Power Source
AA onboard / Fischer external
Runtime
25–90 hours
Waterproof Rating
IP68
Drop Rating
NATO 1.5m+
IR Illuminator
Dual power (low / high)
Manual Gain
Yes (4-pin ECAG, no soldering)
Pod Shutoff
Yes rotational auto shutoff
IPD Stops
Yes
Hinge Adjustment
User adjustable
Warranty
Lifetime
Manufactured In
USA
Package Includes
1 x UH-1 night vision binocular housing
The UH-1 provides a strong balance between affordability, durability, and professional functionality, making it a reliable manual gain night vision binocular housing compatible with widely used optics and image intensifier tubes.
