NNVT

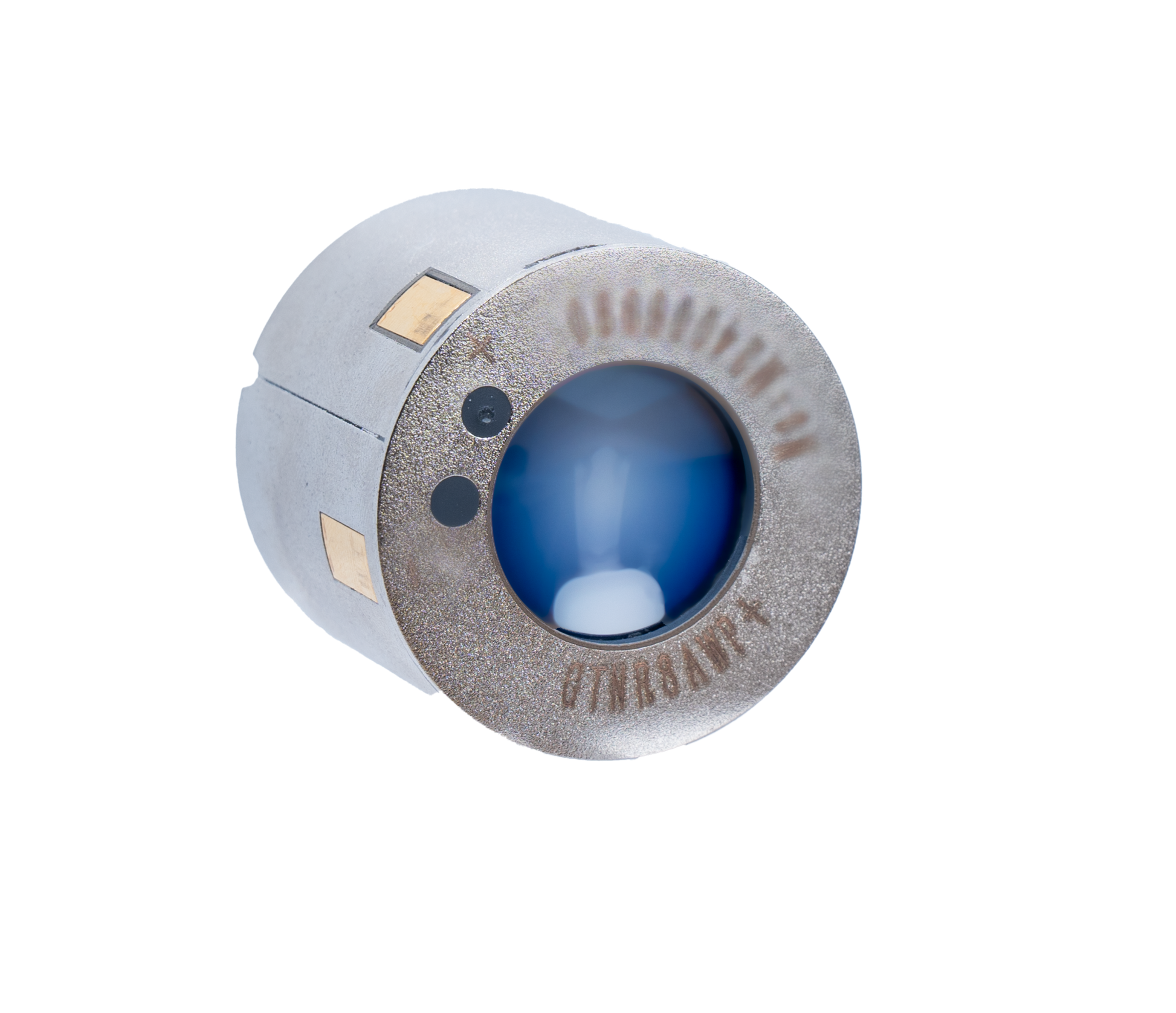

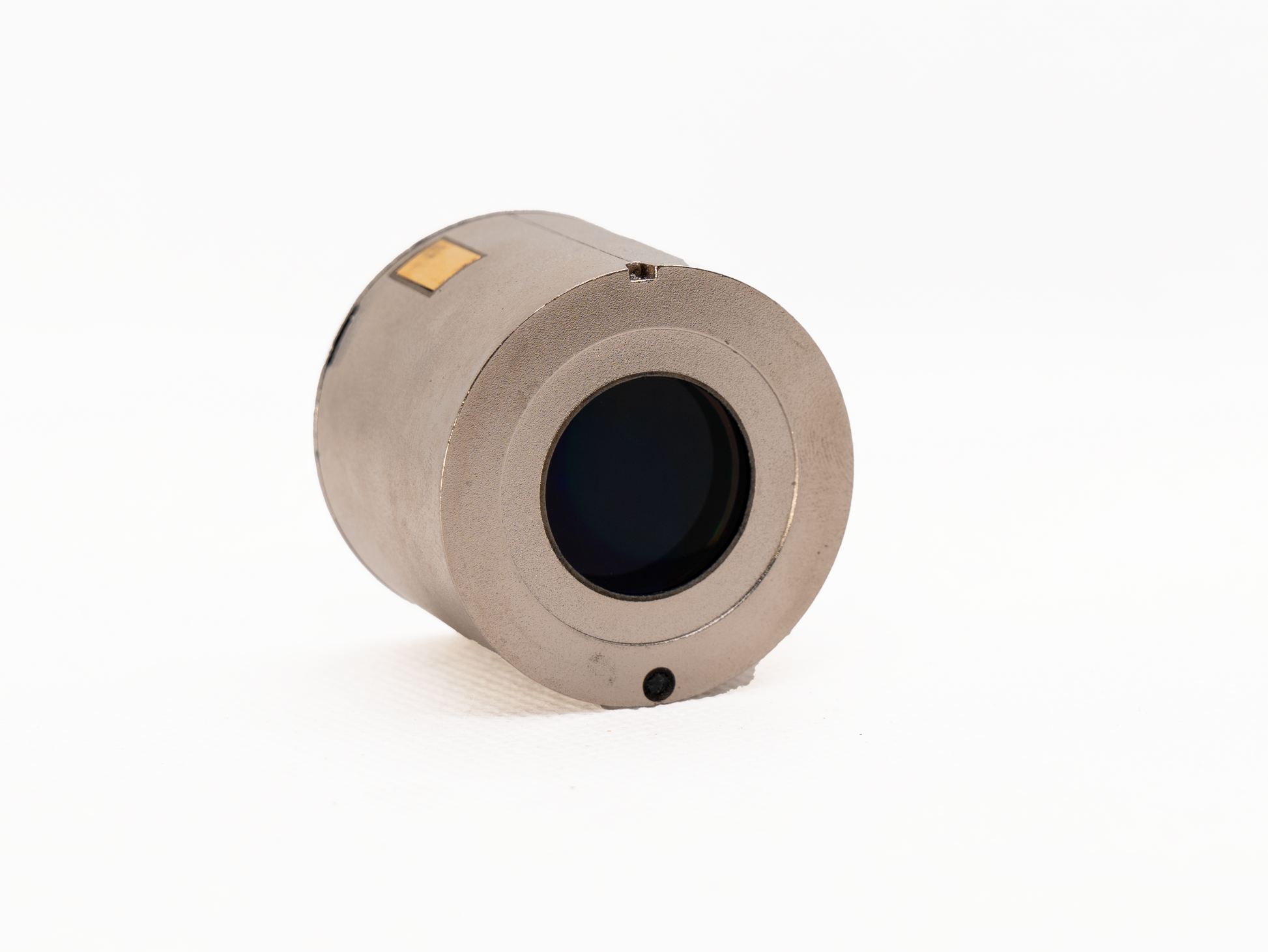

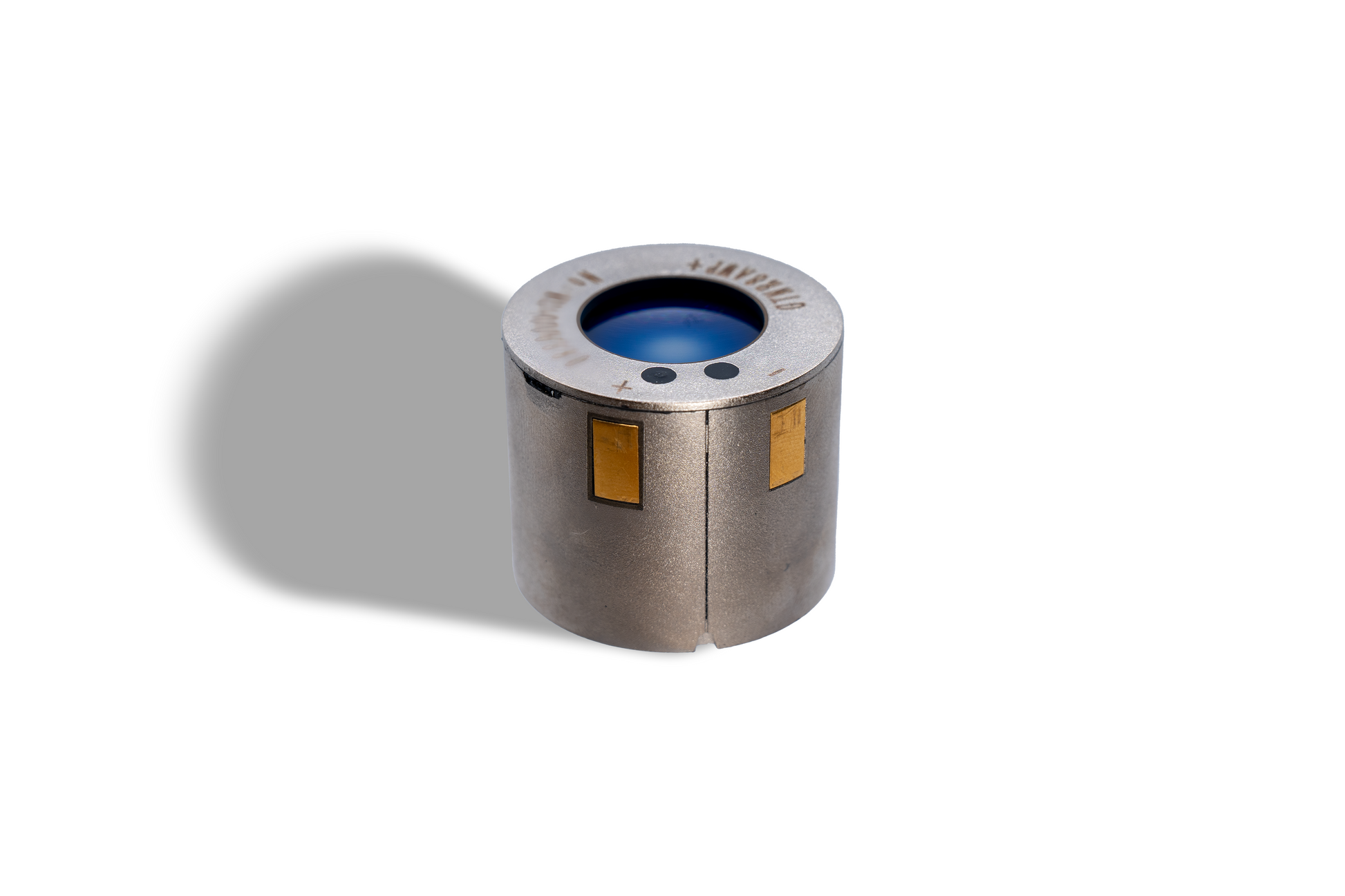

Gen2+ Aerograde (ANVIS) 2100FOM+ Image Intensifier

Gen2+ Aerograde (ANVIS) 2100FOM+ Image Intensifier

MS-6622-GEN-GST IIN N-WHI

$5,172.48 NZD
$5,172.48 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left

Phosphors
Type

NVT7+ ANVIS-Grade Image Intensifier Tube

The NVT7+ ANVIS-grade tube is one of the finest image intensifier tubes available from NNVT, designed to meet the demanding standards of aero users. It is engineered with carefully selected specifications to deliver superior performance.

Key features include a small halo and a spotless image, ensuring a clean, unobstructed view in low-light conditions. Additionally, the tube is treated with specialized coatings tailored for aircraft applications.

With a high Figure of Merit (FOM)—a critical measure of image resolution and signal-to-noise ratio—it provides crystal clear image quality, making it an ideal choice for aviation and other high-precision operations.

Key Features

  • ANVIS-grade image intensifier tube
  • Small halo
  • Spotless image
  • Specialized coatings for aircraft applications
  • High Figure of Merit (FOM)
  • Designed for aviation and high-precision operations
  • Auto-gating

Technical Specifications

Specification Minimum
FOM 2100
Resolution 68
Highlight Resolution 45
Photocathode Sensitivity @2856K, μA/lm 1100
Signal-to-Noise Ratio 29
Luminous Gain, cd/m2 /lx 12000-20000
Auto-Gating Yes
Output Brightness, cd/m2 (@1lx～10lx) 4-12
Operation Voltage 2.2-3.4
Weight <80 g
Photocathode Diameter 18 mm
