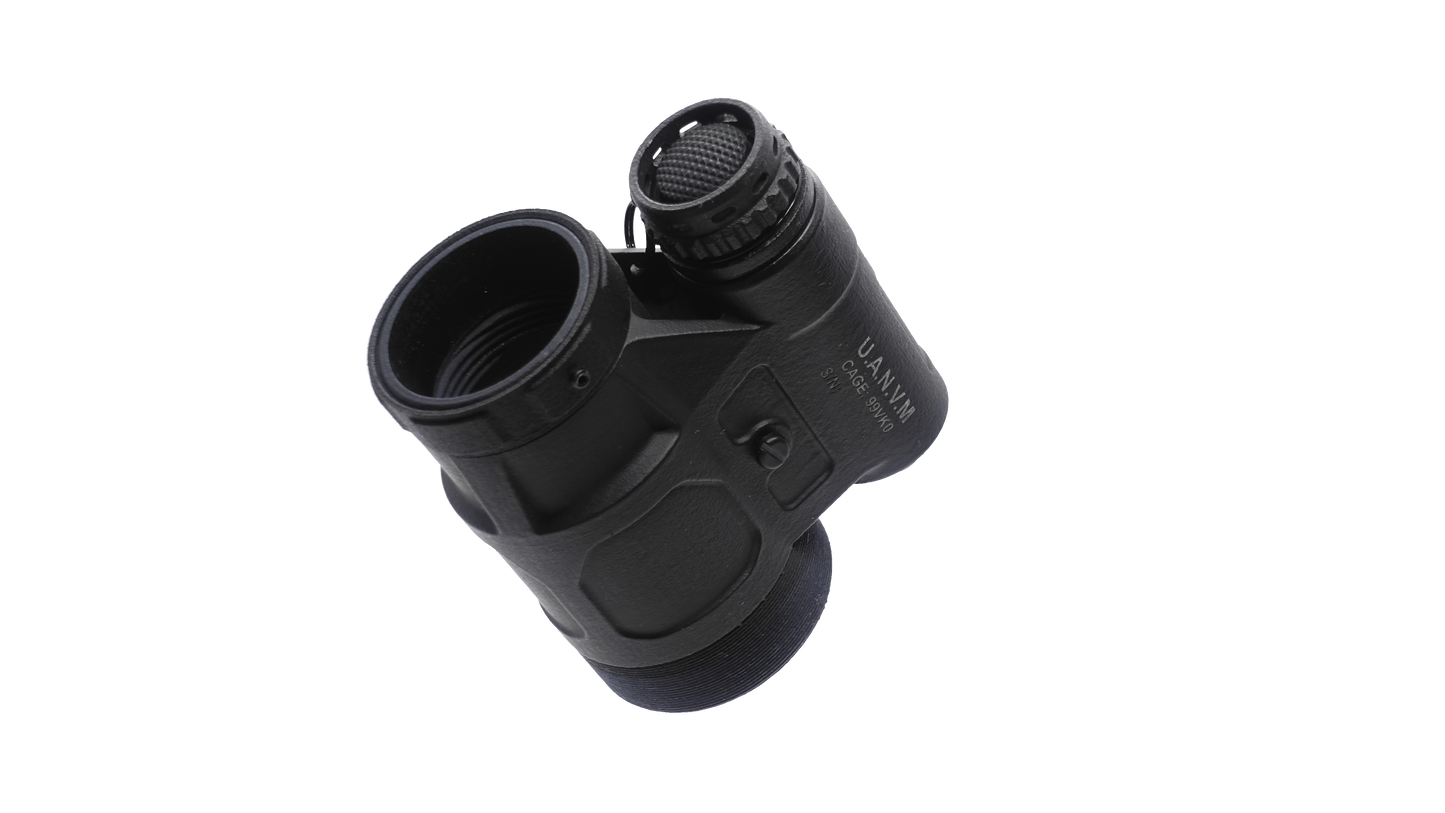

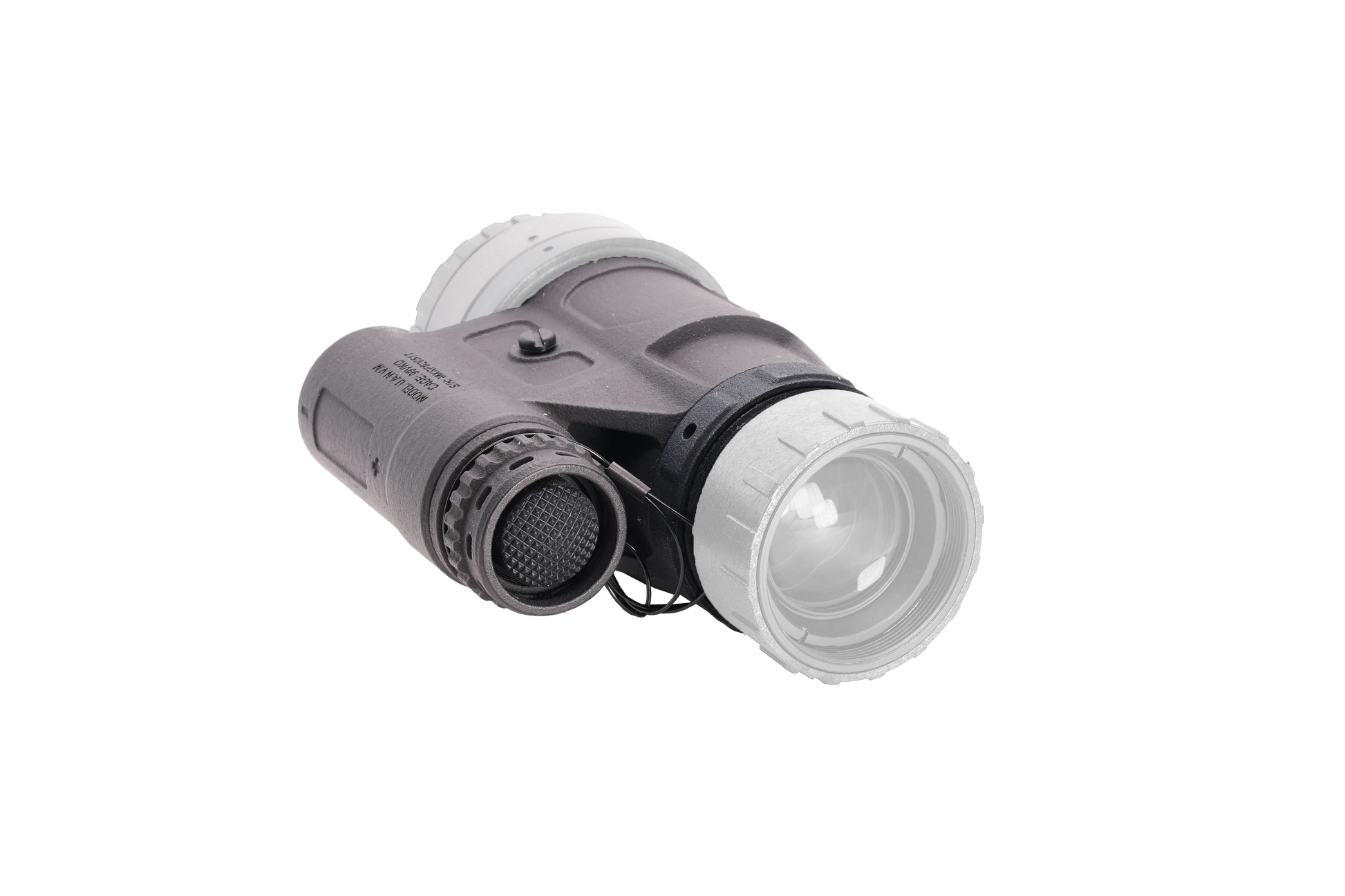

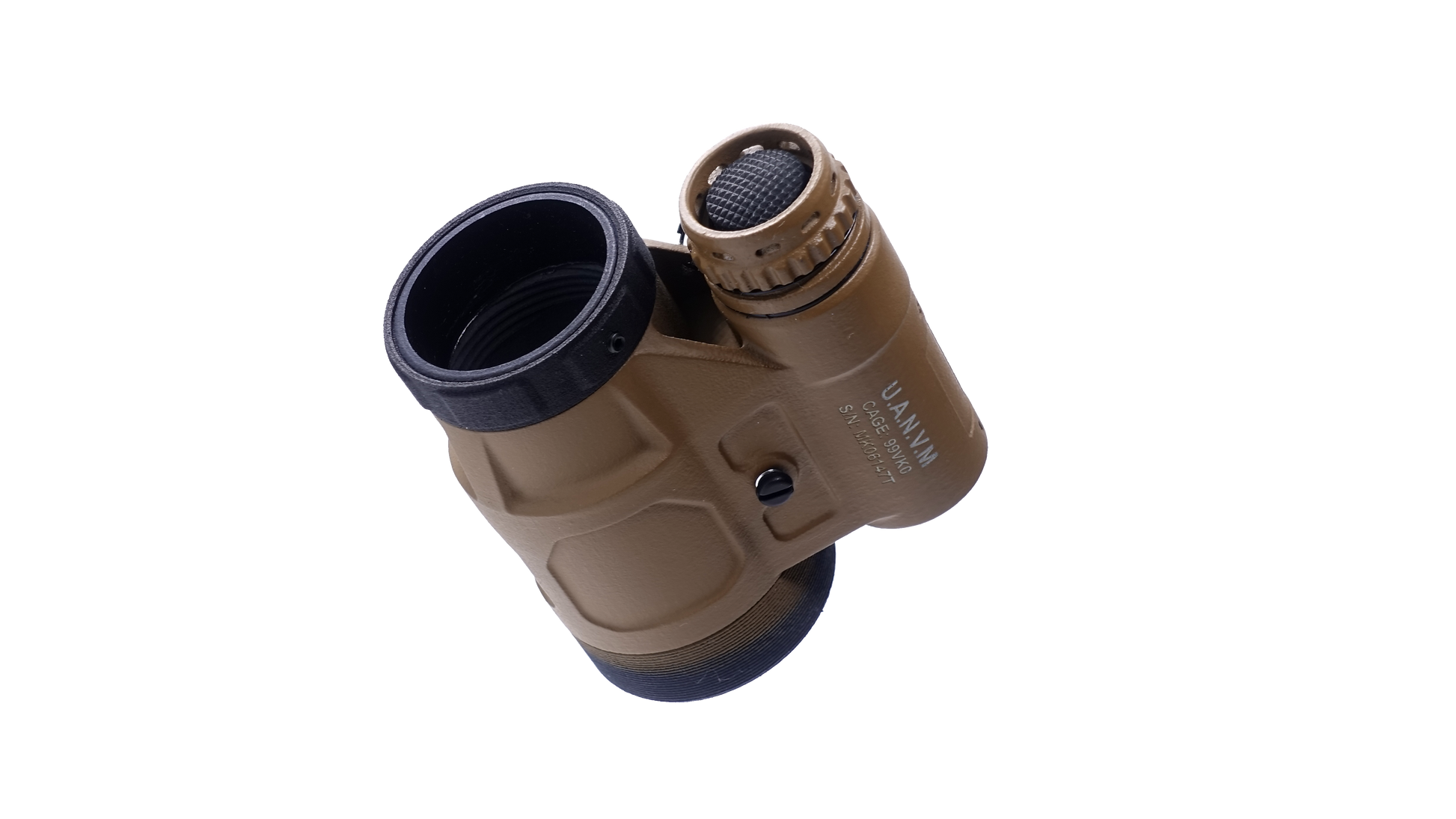

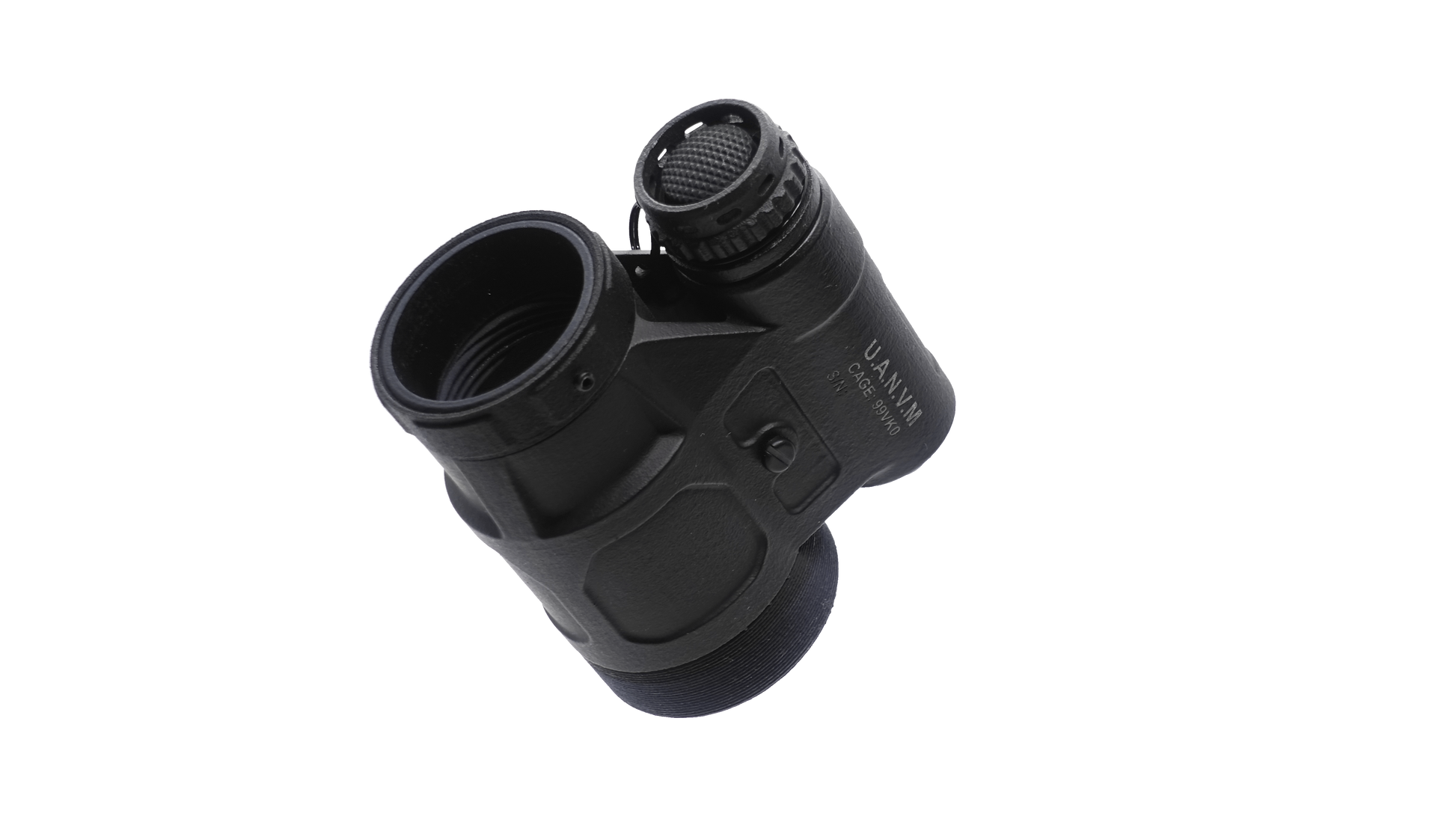

Tanto housing

Tanto housing

Regular price $1,099.00 NZD
Regular price Sale price $1,099.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

This is an upgraded version of the PVS-14 that utilizes its optics but features a modern, lighter, and more ergonomic body. It is manufactured by Nocturnal Industries.

This unit mounts via a standard PVS-14 J-arm mount. A unique feature of this monocular is its ability to be adapted to a proprietary powered articulating dual bridge mount called the TAB (Tanto Articulating Bridge) “Daisho” with minimal tools or extra parts. The innovative design allows users to transform their monoculars into an articulating binocular in seconds or go from a binocular back to a monocular to share with a partner. To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”, and other features when released.

It is simple with a minimalist lightweight design. Push button on/off in the cap to reduce weight and reduce the footprint of the monocular. When assembled to the TAB “Daisho” bridge extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.

This unit is light weight without compromising strength. It is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.

Materials  Impact resistant polymer
Device Weight  241g with standard lenses/ 204g with RPO3.0 lenses
Ingress rating Exceeds IP-68, and MIL-STD-810H 1.5m under water for 30minutes
Out-Board Power No
On-Board Power CR123A onboard with a runtime of ~40 hours
IR Illuminator No
Tube type 18mm MX-10160 style or MX11769 style with EGAC pigtail
removed



Warranty

Life time warranty for the housing
