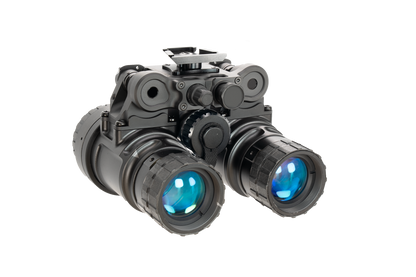

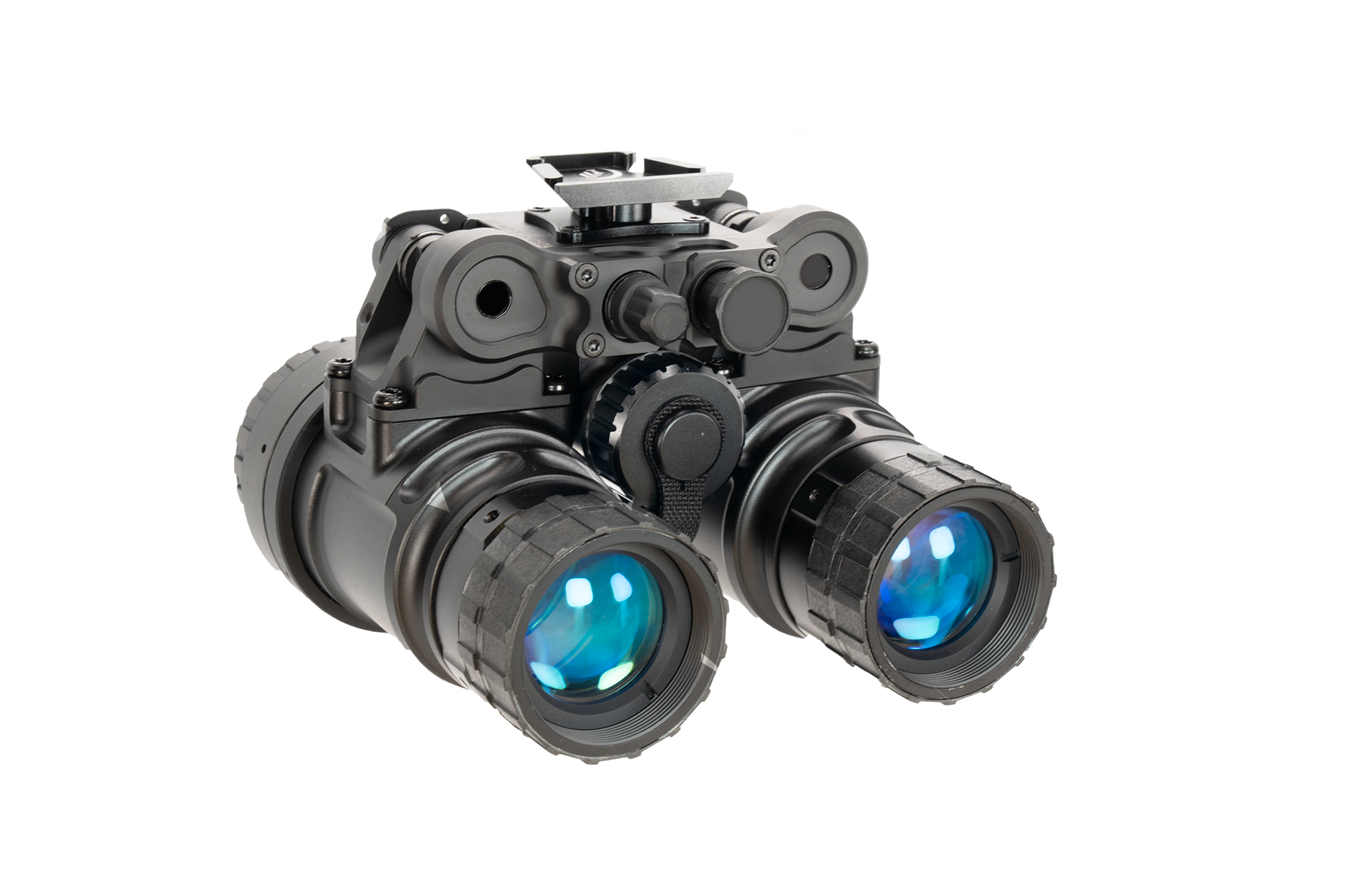

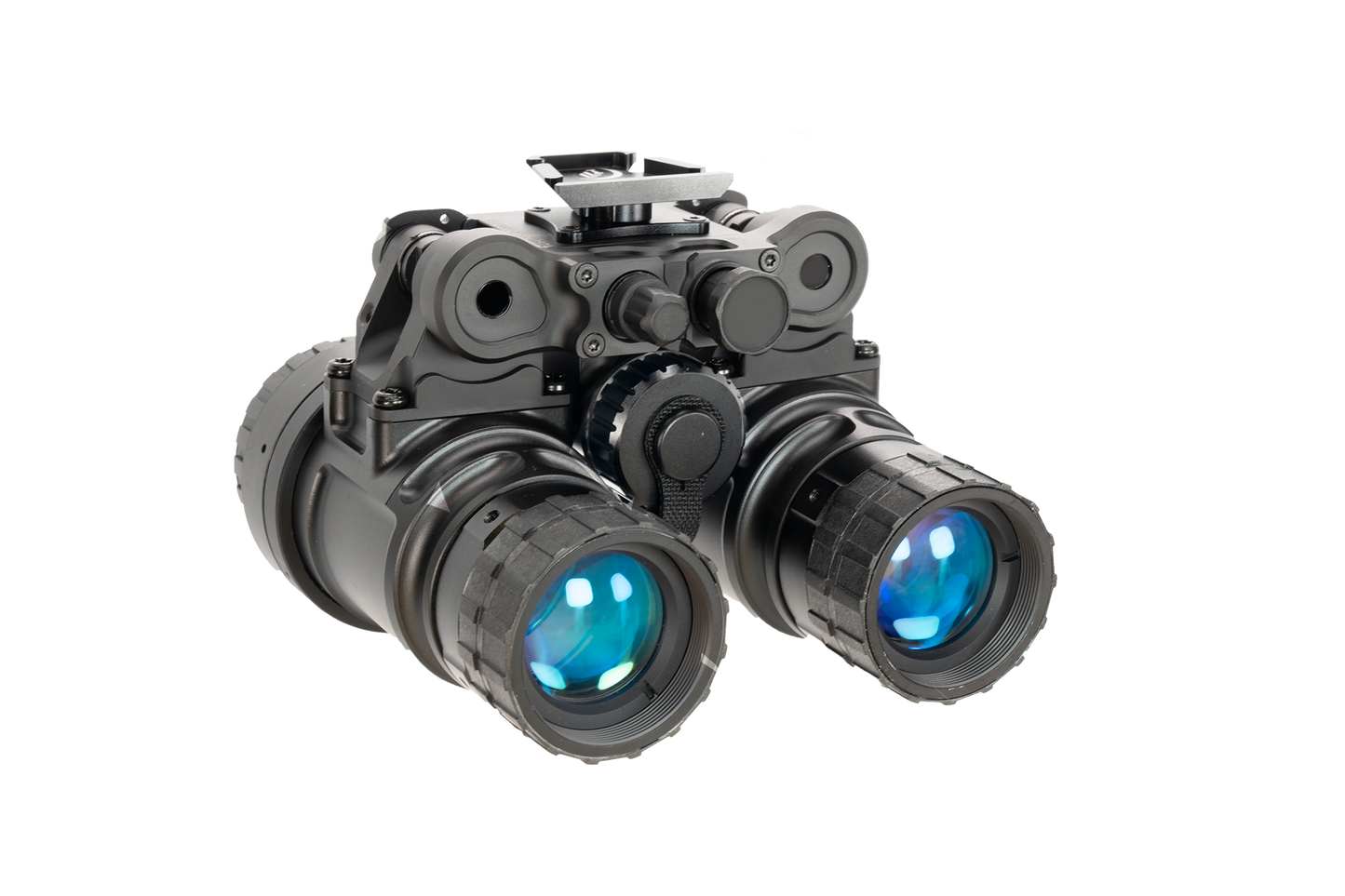

MH-1 Reinforced Modular Night Vision Binocular Housing – Magnesium & Titanium Professional System Made in USA
The MH-1 Reinforced Version from Low Light Innovations represents the most advanced evolution of the MH-1 modular night vision binocular housing. Manufactured in the United States using aerospace-grade magnesium and titanium alloys, this reinforced version offers enhanced durability while maintaining a lightweight and highly adaptable design.
Designed for professional users requiring a reliable and configurable dual tube night vision system, the MH-1 features a fully modular architecture allowing users to quickly swap power supply configurations including CR123A, AA, and external battery solutions. The innovative Modular Bridge System (MBS) also allows the device to be separated into two monocular units, providing exceptional operational flexibility.
The integrated manual gain control connects directly via plug-in without soldering, helping preserve the warranty of compatible image intensifier tubes. Compatible with MX10160 and MX11769 tubes as well as PVS-14 optics, the MH-1 reinforced housing is designed for high performance night vision setups.
Key Features
Reinforced aerospace-grade magnesium and titanium housing
Made in USA professional night vision binocular housing
Manual gain control via plug-in connection
Dual power IR illumination capability
Rotational pod shutoff functionality
IPD stops for consistent alignment
Modular onboard and external power options
Modular Bridge System allowing split monocular configuration
Adjustable pod tension
Designed for professional and tactical applications
Modular Power System
Onboard CR123A battery configuration
External battery compatibility with modular components
Approximate runtime of 25 hours with onboard battery
Flexible power configuration options
Optimized for extended operational use
Optics & Tube Compatibility
Compatible with 18mm MX10160 3-pin image intensifier tubes
Compatible with MX11769 tubes with EGAC pigtail
Compatible with PVS-14 eyepiece optics
Compatible with PVS-14 objective lenses
Supports professional night vision configurations
Construction & Durability
Magnesium and titanium alloy reinforced housing
Submersible to 1.5 meters for 30 minutes
Enhanced structural strength compared to standard polymer housings
Designed for demanding environmental conditions
Reliable long-term durability
Technical Specifications
Specification
Details
Material
Magnesium and titanium alloy
Weight
546 g with standard lenses and NNVT tubes
Ingress Rating
Submersible to 1.5 meters for 30 minutes
External Power
Supported with modular components
Onboard Power
CR123A battery – approximately 25 hours runtime
IR Illuminator
Dual power IR illumination
Tube Compatibility
18mm MX10160 3-pin or MX11769 with EGAC pigtail
Individual Pod Shut Off
Yes when pods are rotated outward
IPD Stops
Yes
Manual Gain
Yes
Package Includes
1 x MH-1 reinforced modular night vision binocular
The MH-1 Reinforced provides a premium combination of lightweight aerospace materials, modular adaptability, and professional-grade performance, making it a high-end modular night vision binocular housing compatible with widely used optics and intensifier tubes.
