Panning Daisho Bridge 55º (Tanto Bridge)

$1,293.00 NZD

~~$2,473.00 NZD~~ $1,293.00 NZD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color: Black

Panning Angles 50º

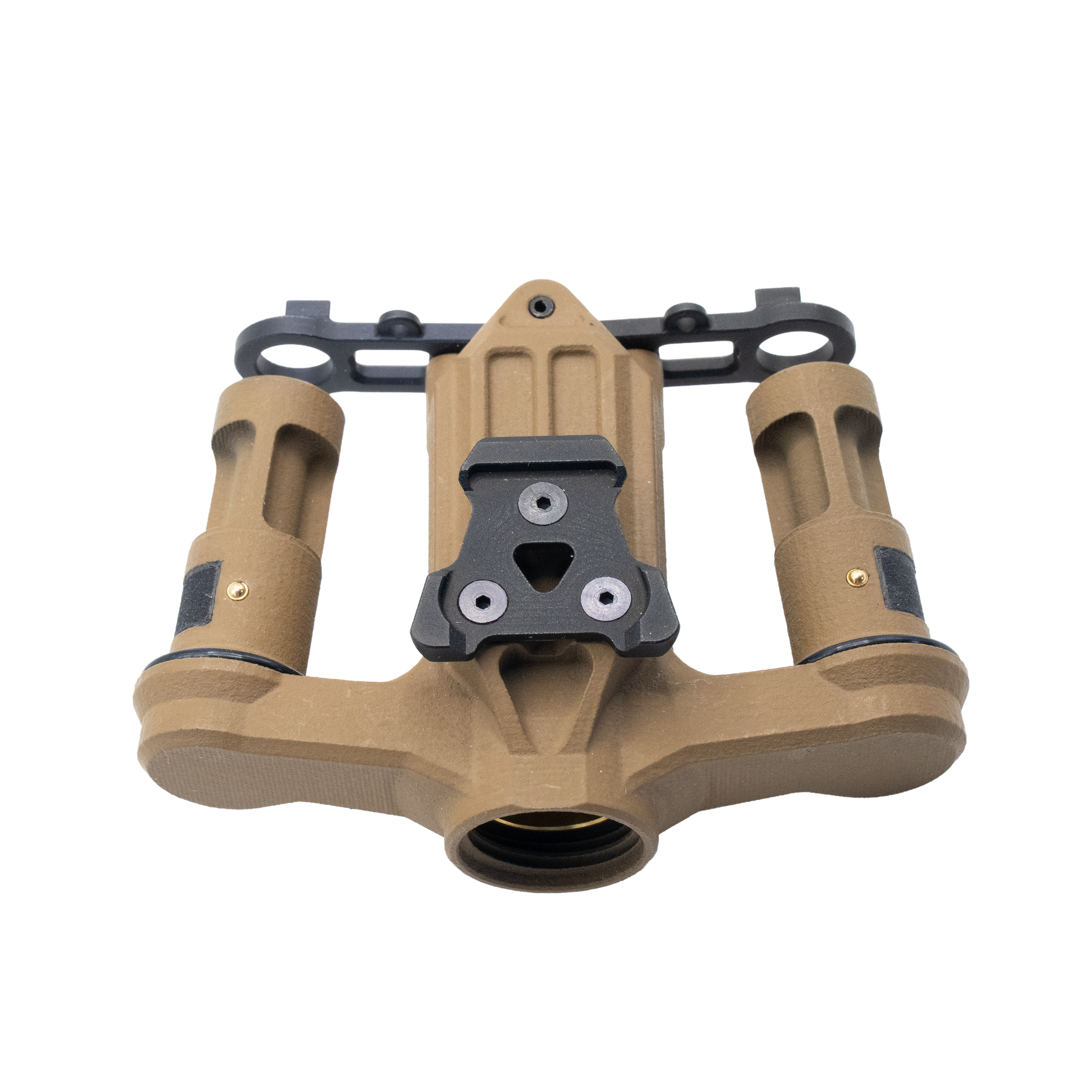

Tanto Articulating Powered Bridge T.A.P.B. “Daisho”

Turn two Tantos into a powered articulating binocular — in under a minute.

The T.A.P.B. “Daisho” (Tanto Articulating Powered Bridge) is a powered, articulating dual-bridge mount designed specifically for the U.A.N.V.M. “Tanto”. With minimal tools and no bulky add-ons, the Daisho lets you seamlessly bridge two Tanto monoculars into a rugged articulating binocular system without compromising weight or functionality.

Its innovative design allows fast conversion and includes built-in IPD stops plus individual pod shutoff when articulated — mirroring the performance and usability of premium binocular housings. Power both monoculars from a single onboard CR123A, or expand runtime using the optional external power solution.

Built for Fast Conversion

Bridge two Tantos into an articulating binocular system in under a minute
Minimal tools or extra parts required
Maintains a lightweight, functional setup

Power & Control

Powers both Tanto monoculars from a single CR123A (on-board)
Optional external power port (LEMO 00B) support
Individual pod on/off when articulated
User adjustable pod tension

Key Features

Impact resistant polymer construction
Toolless IPD stops included
Optional external power port (LEMO 00B)
User adjustable pod tension
24+ hours battery life (single CR123A)
Optional battery pack support (4x CR123A) for 100+ hour runtime
55° and 60° panned variants available
Individual pod on/off when articulated
Lifetime repair or replacement warranty

Specifications

Bridge Weight	2.54 oz / 0.16 lbs / 72 g
Device Weight (Standard Configuration)	18.83 oz / 1.18 lbs / 534 g
Device Weight (Lightweight Configuration)	16.93 oz / 1.06 lbs / 480 g
Battery & Runtime	Single CR123A (on-board): 24+ hours Optional 4x CR123A battery pack: 100+ hours
Finish Options	H-Series Cerakote: Matte Black, Coyote Brown, OD Green
Panned Variants	55° and 60°

Standard configuration based on Tantos with mil-spec optics and Photonis IITs. Lightweight configuration based on Tantos with RPO 3.0 optics and Photonis IITs. Runtime estimated at room temperature.

Warranty

The T.A.P.B. “Daisho” is backed by a lifetime repair or replacement warranty on all bridge components.

Lifetime repair or replacement of bridge components
No questions asked

Warranty

-Life time warranty

View full details

TANTOS WILL NEED TO BE SENT IN TO COLLIMATE THEM TO THE DAISHO BRIDGE

ONLY CONTAINS BRIDGE. NO NIGHT VISION DEVICE

Introducing the long-awaited powered articulating dual bridge mount for the UANVM “Tanto” or TAPB (Tanto Articulating Powered Bridge) “Daisho”. With minimal tools or extra parts two Tantos can now be bridged together into a dedicated binocular system that does not compromise on weight or functionality. The innovative design allows users to seamlessly transform their UANVM “Tanto” monoculars into an articulating binocular in under a minute or go from a binocular back to two monoculars to share with a partner (requires any PVS-14 style J-Arm for monocular use). To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has optional built in IPD stops, individual pod power on/off when articulated to the side, etc. similar to the UANVB “Katana.” A LEMO remote power port option is available as well.
