Falconclaw FC PTT – NATO & Peltor Push-to-Talk with Bluetooth

Falconclaw FC PTT – NATO & Peltor Push-to-Talk with Bluetooth

The Falconclaw FC PTT is a versatile push-to-talk communication unit designed to connect multiple headset standards, radio platforms and smartphone communication applications through a single compact interface. Developed in Estonia, the FC PTT supports both NATO and Peltor wiring from the same unit, allowing users to switch between compatible hearing protection and communication headsets without purchasing a separate PTT.

Instead of being permanently tied to one radio connector, the Falconclaw FC PTT uses interchangeable radio downlead cables. Falconclaw lists support for more than 1,200 radio models, allowing the same PTT to be moved between compatible radio platforms simply by changing the downlead cable. This makes the system particularly useful for users operating multiple communication platforms or upgrading radios over time.

Integrated Bluetooth connectivity adds a second communication channel for smartphone-based applications such as Zello, voice applications, calls and other phone audio. The radio and Bluetooth push-to-talk controls operate independently, while conventional radio communication, the integrated electret microphone and the physical switches continue to operate even without a battery installed.

Key Features

• Universal modular push-to-talk communication platform
• NATO and Peltor wiring compatibility in one PTT
• A/B switch for selecting headset wiring standard
• Compatible with 1,200+ radio models using interchangeable downleads
• Nexus TP-120 (U-174/U) headset connection
• Nexus J-11 compatibility
• Integrated Bluetooth connectivity
• Dedicated radio PTT button
• Dedicated Bluetooth / Zello PTT button
• Integrated electret microphone
• Selectable onboard or headset microphone
• Radio communication operates without a battery
• Bluetooth powered by one CR123A lithium battery
• Approximately 85 hours of constant Bluetooth audio playback
• Compatible with smartphone audio, calls and voice applications
• Belt clip included and pre-installed
• MOLLE clip included
• Amplification adapter included
• IP65 environmental protection rating

NATO & Peltor Compatibility in One PTT

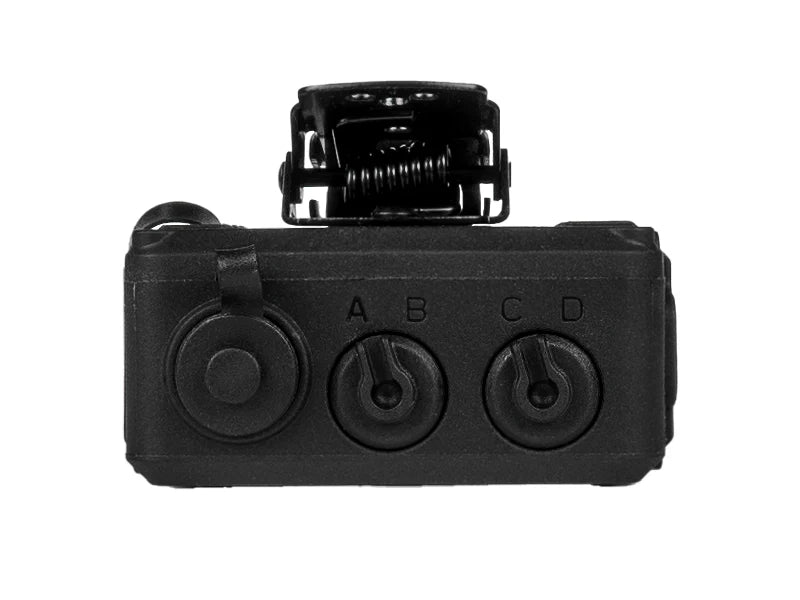

One of the main advantages of the Falconclaw FC PTT is its ability to support both NATO and Peltor headset wiring standards from the same device. A physical A/B selector allows the wiring configuration to be changed according to the connected headset.

• Position A: Peltor wiring
• Position B: NATO wiring

This eliminates the need to purchase separate NATO and Peltor versions of the PTT when working with different compatible communication headsets.

Compatible with 1,200+ Radios

The FC PTT uses a modular radio downlead system rather than permanently attaching the PTT to one radio connector. Falconclaw states that more than 1,200 radio models are supported through the available cable system.

Changing radio platforms therefore requires changing the appropriate downlead rather than replacing the complete PTT.

Important: the radio downlead cable is not included with the FC PTT. A compatible downlead must be selected separately according to the radio model and connector.

Available Radio Downlead Options

Falconclaw offers multiple interchangeable downlead configurations for different radio families. Compatibility must always be confirmed against the exact radio model before ordering.

• 6-Pin NATO radio cable
• 9-Pin Fischer radio cable
• Kenwood-style radio cable
• 2-Pin ICOM radio cable
• ICOM 14-Pin radio cable
• 2-Pin Motorola radio cable
• Motorola GP340-series cable
• Sepura radio cable
• Additional radio configurations supported by Falconclaw

Nexus TP-120 Headset Connection

The headset side of the Falconclaw FC PTT accepts the standard Nexus TP-120 (U-174/U) connection as well as the Nexus J-11 plug. Compatible communication headsets that already terminate in a Nexus downlead can therefore connect directly to the PTT.

This includes compatible Peltor ComTac configurations and other communication headsets using the appropriate Nexus interface.

Integrated Bluetooth Communication

Bluetooth connectivity allows the FC PTT to pair with a compatible smartphone and route phone audio through the connected headset. This provides access to smartphone-based communication alongside conventional radio communication.

Compatible applications can include Zello, voice communication applications, calls, navigation audio and other audio generated by the connected phone. The radio PTT and smartphone PTT functions operate independently.

Dedicated Radio & Bluetooth PTT Controls

The Falconclaw FC PTT provides separate controls for conventional radio transmission and Bluetooth-based communication.

• Radio PTT: dedicated guarded button for transmitting over the connected radio
• Bluetooth / Zello PTT: separate button for compatible smartphone communication
• Bluetooth control: dedicated button for activating and pairing Bluetooth functions

The separate controls allow the two communication paths to be managed independently from the same PTT unit.

Integrated Electret Microphone

Unlike conventional PTT units that depend entirely on a headset boom microphone, the Falconclaw FC PTT incorporates its own electret microphone within the PTT housing.

A dedicated C/D selector determines which microphone is used:

• Position C: integrated PTT microphone
• Position D: connected headset microphone

This allows compatible hearing protection without an integrated boom microphone to be incorporated into a communication setup when used with the appropriate adapter.

Works Without a Battery for Radio Communication

The FC PTT does not require a battery for its core radio communication functions. Conventional radio communication, the onboard microphone and the physical switches continue to operate without a battery installed.

The CR123A battery powers the Bluetooth functionality only. This means loss of Bluetooth power does not automatically disable the conventional radio communication path.

Up to 85 Hours Bluetooth Audio Playback

The Bluetooth system is powered by a single CR123A non-rechargeable lithium battery. Falconclaw specifies approximately 85 hours of constant audio playback while Bluetooth is in use, with potentially longer operating time under standby conditions.

The CR123A battery is not included with the product.

Flexible Headset Configurations

The modular design allows the FC PTT to work with several types of compatible hearing protection and communication headsets. Nexus-equipped communication headsets can connect directly, while other hearing protection systems can be integrated using the appropriate Falconclaw adapter.

Users should confirm the headset connector, wiring standard, microphone type and radio downlead compatibility before ordering.

Belt & MOLLE Mounting

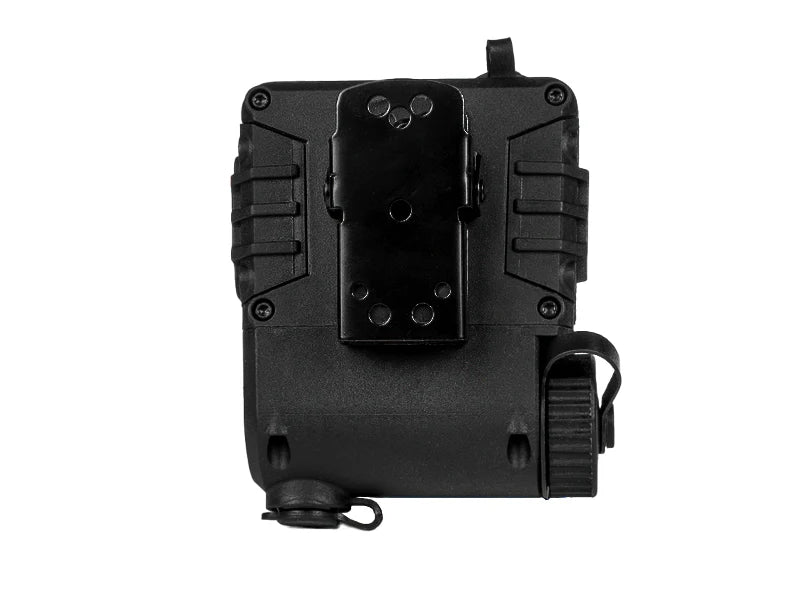

The FC PTT includes two mounting options for different equipment configurations. A belt clip comes pre-attached, while an included MOLLE clip can be installed for integration with compatible MOLLE equipment.

Technical Specifications

Feature	Specification
Manufacturer	Falconclaw
Model	FC PTT
Product Type	Push-to-Talk Communication Unit
Radio Channels	Single-Comm Radio + Bluetooth Secondary Channel
Headset Connector	Nexus TP-120 (U-174/U) / Nexus J-11
Headset Wiring	Selectable NATO / Peltor
Wiring Selector	A = Peltor / B = NATO
Microphone Selector	C = Onboard Mic / D = Headset Mic
Integrated Microphone	Electret
Radio Compatibility	1,200+ Models via Interchangeable Downlead Cables
Bluetooth	2.4 GHz
Bluetooth Functions	Voice Apps / Calls / Media / Compatible Smartphone Audio
Battery	1 × CR123A Lithium, Non-Rechargeable
Battery Required for Radio	No
Battery Required for Bluetooth	Yes
Bluetooth Battery Life	Approx. 85 Hours Constant Audio Playback
Environmental Protection	IP65
Colour	Black

What's Included

• Falconclaw FC PTT
• Pre-installed belt clip
• MOLLE clip
• Amplification adapter
• Allen key
• Thread-locker for MOLLE clip installation
• User manual

Please note: the radio downlead cable and CR123A battery are not included. A compatible radio cable must be purchased separately according to the radio model being used.

Compatibility Checklist

Before ordering the Falconclaw FC PTT, confirm the following:

• Your headset connector type
• NATO or Peltor headset wiring
• Whether the headset uses an integrated boom microphone
• Your exact radio manufacturer and model
• The radio connector and required downlead cable
• Whether an additional headset adapter is required
• Whether Bluetooth smartphone functionality is required

Why Choose the Falconclaw FC PTT?

The Falconclaw FC PTT is designed around flexibility. Instead of requiring a dedicated PTT for every headset and radio combination, it combines NATO and Peltor wiring selection, interchangeable radio downleads, an integrated electret microphone and Bluetooth smartphone connectivity in one modular platform. With support for more than 1,200 radio models through compatible cables, it provides a practical communication interface for users who regularly change headsets, radios or communication configurations.
