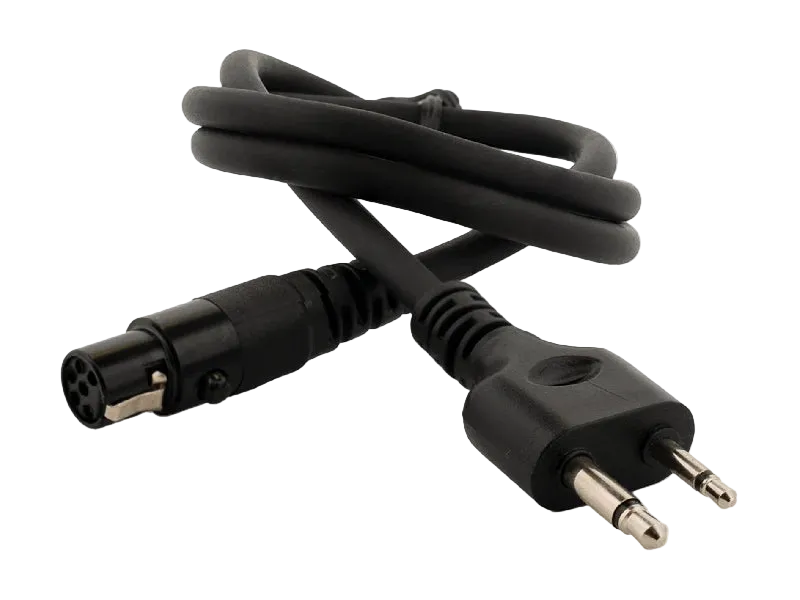

Falconclaw ICOM 2-Pin PTT Cable

Falconclaw PTT Cable – ICOM 2-Pin

The Falconclaw ICOM 2-Pin PTT Cable is a lightweight 50cm radio downlead designed to connect the Falconclaw PTT to compatible ICOM radios using the ICOM 2-pin S-series connector. The modular cable system allows users to adapt their Falconclaw PTT to different compatible radio platforms without replacing the complete push-to-talk unit.

Designed specifically for compatible ICOM radios, this cable uses the ICOM 2-pin electrical configuration. Although the connector can appear similar to a Kenwood 2-pin connector, ICOM and Kenwood 2-pin cables are electrically different and are not interchangeable.

Measuring 50cm (19.68in) and weighing only 20g, the Falconclaw ICOM downlead provides a compact connection between your compatible radio and Falconclaw PTT. It is suitable for selected ICOM F, H, J, M and U-series radios, as well as compatible Cobra and Ritron series radios.

Key Features

• ICOM 2-pin PTT radio downlead cable
• ICOM S-series 2-pin connector
• Designed for the Falconclaw PTT
• 50cm / 19.68in cable length
• Lightweight 20g construction
• 10 × 10mm cable cross-section
• Compatible with selected ICOM radio models
• Compatible with selected Cobra and Ritron series radios
• Interchangeable Falconclaw downlead system
• Allows compatible radio platforms to be changed without replacing the PTT

ICOM 2-Pin S-Series Connector

The Falconclaw ICOM PTT Cable terminates in an ICOM 2-pin S-series connector. This interface is used by a range of compatible ICOM handheld radios and provides the radio-side connection for the Falconclaw PTT system.

The modular design means the downlead can be changed independently of the PTT, allowing the same Falconclaw communication platform to be adapted to another compatible radio by installing the appropriate radio cable.

ICOM vs Kenwood 2-Pin Compatibility

Important: the ICOM 2-pin connector can look similar to a Kenwood 2-pin radio connector, but the two systems are electrically different and are not interchangeable. If your radio uses a Kenwood 2-pin interface, the appropriate Falconclaw Kenwood cable should be used instead.

ICOM radios equipped with a 14-pin side accessory connector also require a different Falconclaw ICOM 14-pin downlead. Always confirm the exact radio model and connector before ordering.

Compatible ICOM Radios

Falconclaw lists this ICOM 2-Pin PTT Cable as compatible with the following ICOM radio models:

ICOM F-Series

• ICOM IC-F3
• ICOM IC-F4
• ICOM IC-F10
• ICOM IC-F20

ICOM H, J, M & U-Series

• ICOM IC-H2
• ICOM IC-H6
• ICOM IC-J12
• ICOM IC-M5
• ICOM IC-U12
• ICOM IC-U16

Additional Compatibility

• Compatible Cobra series radios using the appropriate interface
• Compatible Ritron series radios using the appropriate interface

Compatibility Note: always confirm the connector and electrical compatibility of your exact radio model before ordering. Similar-looking 2-pin connectors do not necessarily use the same wiring.

Designed for the Falconclaw PTT

The ICOM 2-pin downlead is designed specifically for use with the Falconclaw PTT. Falconclaw's interchangeable cable architecture separates the radio connection from the main PTT, providing greater flexibility when working with different compatible radio platforms.

Instead of purchasing another complete PTT when changing radios, users can select the appropriate Falconclaw downlead for the new compatible radio interface.

50cm Lightweight Radio Downlead

With a length of 50cm (19.68 inches) and a weight of approximately 20g, the Falconclaw ICOM downlead is designed to provide sufficient routing flexibility without adding unnecessary cable weight to a communication setup.

Falconclaw also offers an optional 50cm extension cable for configurations where additional distance is required between the PTT and radio downlead.

Technical Specifications

Specification	Details
Manufacturer	Falconclaw
Product Type	PTT Radio Downlead Cable
Radio Connector	ICOM 2-Pin
Connector Family	ICOM S-Series
Cable Length	50cm / 19.68in
Cross-Section	10 × 10mm
Weight	20g
PTT Compatibility	Falconclaw PTT
Kenwood 2-Pin Compatibility	No – electrically different
Origin	China

What's Included

• 1 × Falconclaw ICOM 2-Pin PTT Cable

Please Note: the Falconclaw PTT is sold separately. This product includes the ICOM radio downlead cable only.

Why Choose the Falconclaw ICOM 2-Pin PTT Cable?

The Falconclaw ICOM 2-Pin PTT Cable provides a lightweight and modular connection between the Falconclaw PTT and compatible ICOM radios. With its 50cm cable length, 20g weight and dedicated ICOM S-series electrical configuration, it provides a straightforward way to integrate selected ICOM, Cobra and Ritron radios into a compatible Falconclaw communication setup.
