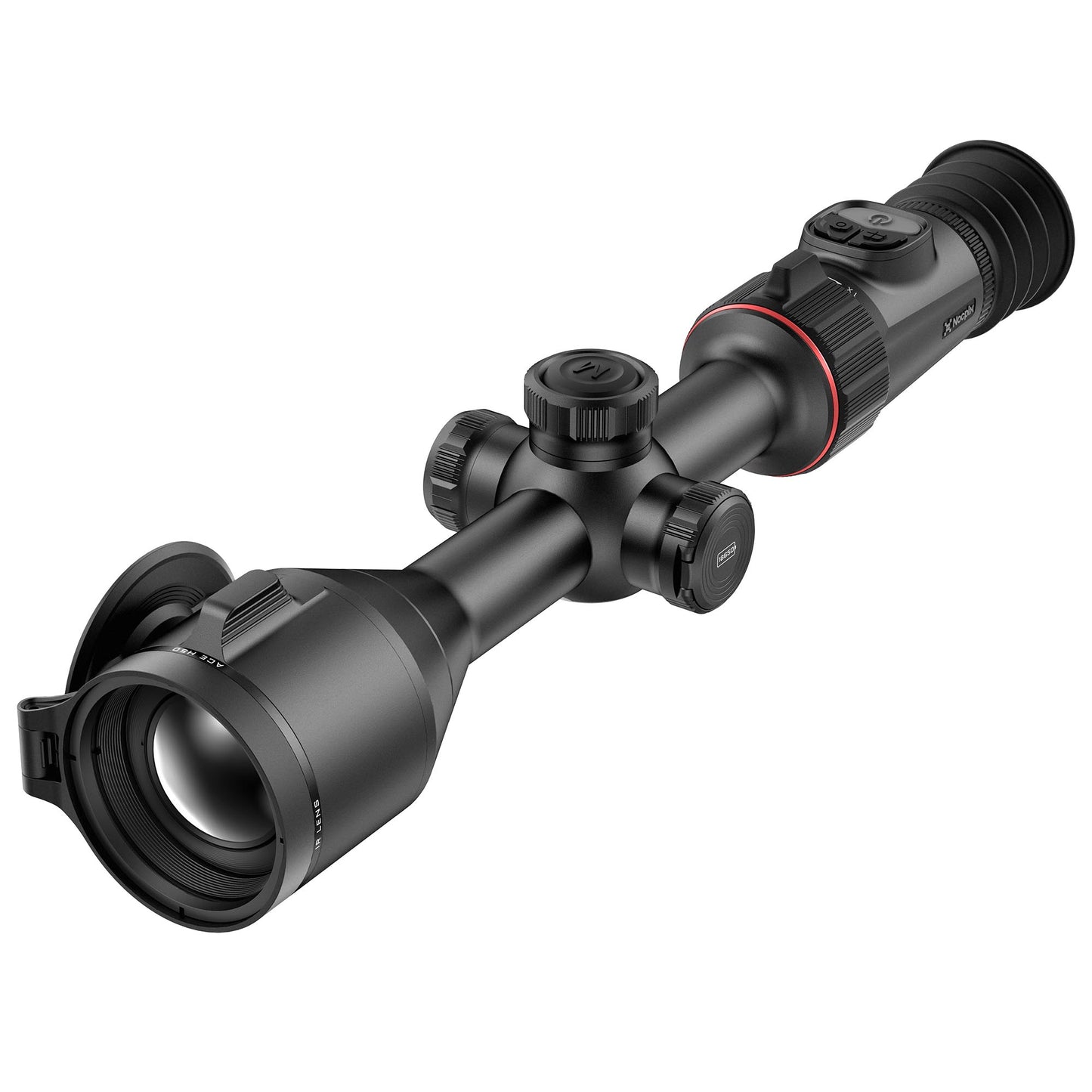

NOCPIX - ACE - H50

Nocpix ACE H50 Thermal Scope

The Nocpix ACE H50 is a high-performance thermal riflescope engineered for hunters and professional shooters who demand exceptional thermal image quality, immersive viewing comfort, and reliable long-range shooting performance. Combining a powerful thermal sensor with the advanced Vision+ viewing system, the ACE H50 delivers crystal-clear thermal imagery, smooth image rendering, and precise target identification in total darkness and challenging weather conditions.

Equipped with a premium 640×512 thermal sensor, ultra-sensitive NETD ≤15mK, and a smooth 60Hz refresh rate, the ACE H50 provides outstanding thermal sensitivity and image detail in fog, rain, brush, and low-visibility environments. Its large 50mm F0.9 germanium objective lens maximizes infrared light transmission, enabling long-range target detection up to 2600m while maintaining exceptional thermal clarity and sharpness.

The innovative Vision+ system integrates a large 1.03-inch 2560×2560 AMOLED display with an advanced ocular zoom structure to create a highly immersive viewing experience with reduced eye fatigue during prolonged observation. Combined with the advanced Reality+ AI image processing algorithm, the ACE H50 intelligently enhances contrast, detail, and thermal sharpness in real time for superior hunting performance in all conditions.

Built for demanding field applications, the ACE H50 features onboard photo and video recording with audio, Recoil Activated Video (RAV), WiFi connectivity, ballistic profiles, and a dual-battery system combining an internal battery with a replaceable 18650 rechargeable battery for extended runtime. Its rugged 30mm aluminum alloy tube, IP67 waterproof protection, and high recoil resistance make the ACE H50 a dependable thermal riflescope for predator hunting, hog hunting, and precision nighttime shooting.

Key Features

• 640×512 thermal sensor with 12μm pixel pitch
• NETD ≤15mK for exceptional thermal sensitivity
• 50mm F0.9 germanium objective lens
• 60Hz refresh rate for fluid thermal imaging
• Detection range up to 2600m
• Vision+ immersive viewing system
• 2560×2560 AMOLED round display
• Reality+ AI image enhancement
• 3× optical magnification with digital zoom
• Photo, video & audio recording with RAV
• WiFi & mobile app connectivity
• Dual battery system with replaceable 18650 battery
• 64GB internal storage
• IP67 waterproof protection
• 30mm standard scope tube design

Nocpix ACE H50 Specifications
